Coordinate measuring machine
Wenzel Smart Gear

Name: Wenzel Smart Gear
Brand: Wenzel
Availability: InStock

Year of construction

2008

Condition

Used (fully functional)

Location

Partenstein Germany

Coordinate measuring machine Wenzel Smart Gear

Basic data

Machine type:: Coordinate measuring machine

Manufacturer:: Wenzel

Model:: Smart Gear

Year of construction:: 2008

Condition:: good (used)

Functionality:: fully functional

Price & Location

Location:: Partenstein, Germany

Call

Technical details

Dimensions and weight

Total length:

1,765 mm

Total width:

1,700 mm

Axis specifications

Travel distance X-axis:

500 mm

Travel distance Y-axis:

450 mm

Travel distance Z-axis:

400 mm

Further details

Compressed air connection:

4 bar

Details about the offer

Listing ID:: A18399336

Update:: 24.07.2026

Description

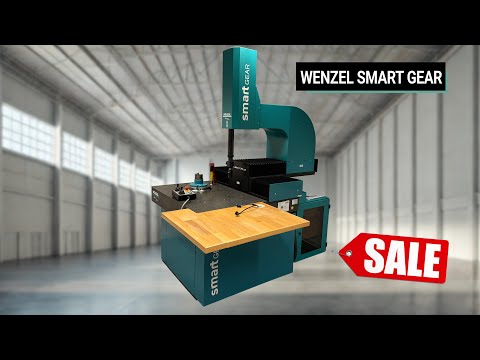

Wenzel Smart Gear - gear and 3D coordinate measuring machine

The machine is in very good condition and fully functional. It has been regularly serviced and well looked after.

Machine data:
• Machine dimensions L=1765mm W=1700mm H=2232mm
• Max. rotary table workpiece diameter = 5 to 270mm
Hfodpfx Abevvudkj Uon
• Measuring accuracy gear testing in accordance with VDI/VDE2612/2613 Group II
• Max. rotary table load = 20 daN
• Travel paths X= 500mm Y=450mm Z=400mm
• Scanning probe - Renishaw SP600M
• 7x SP600 change plate for probe included
• Module measuring range 0.4 - 10mm
• Active air damping of the machine
• Year of manufacture 2008
• Accessories such as driver, reference ball etc. as shown
• Jaw chuck D=80mm with inside and outside jaws
• 24 inch monitor, mouse, keyboard

The following software modules are included:

Gear cutting software:
• TMain - program management
• TStylus – Probe management
• TCali – Probe calibration
• TAmo – Calculated axis position determination
• TGear – Spur gear measuring program
• TGear – Head and root circle option
• TWorm – Worm measuring program

3D software
• Metrosoft CM 3.8

The listing was translated automatically. Translation errors are possible.
