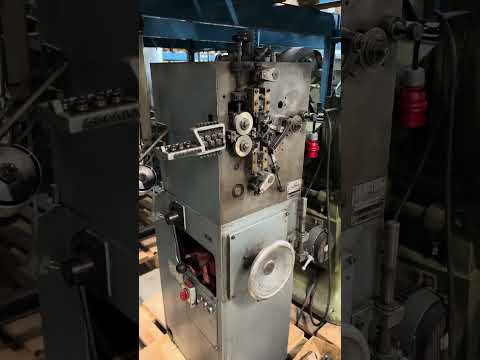

Spring coiling machine

WAFIOS FS2

Condition: used, functionality: fully functional, machine/vehicle number: D32L/8411, Offer Number: D32L/8411 Machinetype: spring coiling machine Make: WAFIOS Type: FS2 Constr. year: wire diameter: 0,2-0,9 mm Klsdpfxexnyifj Ah Nol spring diameter: 1 - 20 mm feeding length: 4 - 1280 mm output pieces/min: 11 - 420 Location: In our warehouse

Condition: used, TECHNICAL DETAILS - distance between centers : 600 [mm] - center's height : 175 [mm] - table orientation : 11 [°] UNIVERSAL GRINDING WHEEL HOLDER HEADSTOCK - left grinding wheel dimension : 400 x 50 x 127 [mm] - right grinding wheel dimension : 225 x 20 x 76,2 [mm] - motor power : 3 [kW] - spindle speed : 1500 / 1700 / 2200 - grinding-wheel holder headstock orientation : 270 [°] PART HOLDER HEADSTOCK - part-holder headstock orientation : 360 [°] - spindle speeds : 20 - 400 [Rpm] - internal taper : Morse 5 - motor power : 0,9 [kW] TAIL STOCK - internal taper : CM4 - quill stroke : 30 [mm] DIMENSIONS - floor surface : 2580 x 1680 [mm] - height : 1670 [mm] - weight : 2200 [kg] EQUIPMENT Kodpfxsuhbywe Ah Nell - FISCHER internal spindle: 14,000 [rpm]

Condition: new, CNC spring forming machine. A proven machine that every spring manufacturer should have in their spring workshop for one of the best ratios on the market. Ksdpfx Astv D Awjh Njll

Condition: repair required (used), Year of construction: 2014, functionality: not functional, Spring coiling machine from HTC / Manentimacchine SRL incl. camera technology HTC16CF Not ready for operation - conversion would be possible for a surcharge of EUR 4,000 per machine. The machine is available for sale twice. Klsdpotdrkmofx Ah Njl

Year of construction: 1995, condition: ready for operation (used), A Schenker spring coiling machine including a 2-finger coiling system (left and right), a multiple stroke device and a Böhm MRS-1 length measuring device is available. Wire diameter range: 0.4mm-1.8mm, spring outer diameter: 2mm-30mm, production capacity: 400 springs/min, max. material strength: 2400N/mm², spring outer diameter range: 2mm-30mm, wire feed length: 30mm/470mm/770mm/1200mm. Machine dimensions X/Y/Z: approx. 1150mm/900mm/1450mm, weight: approx. 1000kg. In 2008, the drive motor was replaced by a frequency-controlled servo motor. Documentation available. On-site inspection is possible. Ksdpfx Ahov Ip Smo Noll

Condition: used, Year of construction: 2021, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, feed length X-axis: 1,270 mm, feed length Y-axis: 508 mm, feed length Z-axis: 635 mm, feed rate X-axis: 16 m/min, feed rate Y-axis: 16 m/min, feed rate Z-axis: 16 m/min, nominal power (apparent): 26 kVA, torque: 122 Nm, controller manufacturer: HAAS, Used Machining Center Brand: HAAS Ksdpfxexqct Se Ah Njll Model: VF-4 Year: 07/2021 Serial number: 1183245 Operating hours: Spindle on time: 6,000h Specifications: - Travels (X, Y, Z): 1270mm, 508mm, 635mm - Spindle-to-table distance (Min. - Max.): 107 - 742mm - Spindle speed: 8100 rpm - Spindle taper: ISO 40 - HAAS CNC Control - HaasDrop (for wireless file transfer to CNC) - Rigid tapping; synchronized tapping, with integrated tapping cycles and up to 8 retract speeds. - Safe Run; a HAAS Control software function that reduces the risk of significant damage in case the machine is impacted. - Tool changer carousel: 20 tools - Includes early power-failure detection module. - Coolant tank: 208 liters with coolant kit - Variable-flow coolant pump allows control of coolant flow and pressure via M-codes. - Maximum tool diameter: 89mm (adjacent tool slots filled) - Maximum tool weight: 5.4kg - Table dimensions: 1321 x 495mm - Maximum table load: 1588kg - Maximum rapid traverse (all axes): 25.4 m/min Included options: - Preparation for through-spindle coolant - Auger-type chip conveyor - Programmable coolant nozzle, multi-position device that automatically and precisely directs coolant to the cutting tool

Condition: used, TECHNICAL DETAILS Kljdpfxjwdacyo Ah Nol - Manual honing diameter : 1.5 - 165 - Automatic honing diameter : 1.5 - 101 - Travel : 6 - 170 [mm] MAIN SPINDLE - Spindle speeds : 200 - 3000 [rpm] - Spindle power : 4.1 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 10.5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1.600 x 1.220 [mm] - Machine height : 1.900 [mm] - Machine weight : 1000 [kg] EQUIPMENT - Coolant tank - Workpiece loading / unloading robot

Condition: ready for operation (used), Year of construction: 2019, operating hours: 3,728 h, spindle speed (max.): 4,000 rpm, travel distance X-axis: 213 mm, travel distance Y-axis: 51 mm, travel distance Z-axis: 572 mm, spindle motor power: 149,000 W, bar diameter (max.): 64 mm, controller manufacturer: HAAS, controller model: NGC, number of slots in tool magazine: 12, swivel angle C-axis (max.): 360 °, number of axes: 4, Control Unit Brand HAAS Model NGC Main Drive Spindle bore 88.9 mm Number of axis 4 Spindle Speed 4000 RPM Spindle motor power 149 kW Kledpfx Asx D Hn Toh Nsl Movement X-Axis Movement 213 mm Z-Axis Movement 572 mm Y-Axis Movement 51 mm C-Axis Movement 360 º Tools Slots in storage 12 Technical Specification Max. Bar Diameter 64 mm Driven Tools yes This HAAS ST-20Y lathe, manufactured in 2019, features a Y-axis, tailstock, automatic tool probe, and chip conveyor. With a spindle speed of up to 4000 rpm and driven tools supported by a C-axis, it offers strong capabilities for complex machining. If you are looking for a high-quality turning solution, consider the HAAS ST-20Y we have for sale. Contact us for more information. Application Types Turning

Year of construction: 2023, operating hours: 4,976 h, condition: ready for operation (used), General Data Measurements width 3250 mm Measurements depth 2100 mm Measurements height 2150 mm Control Unit Brand FANUC Model 31i-B Main Drive Number of axis 4 Movement X-Axis Movement 370 mm Z-Axis Movement 800 mm Workpiece Workpiece weight 150 kg Ksdpfox D Nfnox Ah Njll Additional Equipment Equipped with: Measuring probe, Kraft & Bauer fire extinguisher installation, LTA oil mist separator, DGS paper filter, motorex/Ritter & bader coolers, grinding wheels, documentation This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2023. It features a distance between centers of 650 mm, center height of 175 mm, and can handle a maximum workpiece weight of 150 kg. Equipped with a Fanuc 31i-B control system, it also includes a measuring probe, fire extinguishing system, oil mist separator, and coolers. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine. Application Types Grinding

Condition: used, functionality: fully functional, machine/vehicle number: D32E/7171, Offer Number: D32E/7171 Machinetype: spring coiling machine Make: WAFIOS Type: UFM30 Constr. year: wire diameter: 0,8-3 mm spring diameter: 50 mm Kledpfx Aowi S U Esh Nel feeding length: 14450 mm output pieces/min: 125 Location: Europe
