Used Jung F 50 for sale (141)

Condition: reconditioned (used), Year of construction: 2025, grinding length: 400 mm, grinding width: 200 mm, JUNG JF415 / JF420 rebuilt mechanicaly, geometricaly und electricaly rebuilt according JUNG acceptance protocoll for new machines - retrofit with new 12“-SIEMENS-Touch-OP control - new electrical cabinet with magnetic control for chuck - plain text error codes - electro mechanical vertikal feed - dresser compensation - automatic lubrication unit - all numeric values (verical feed) und on/off functions e.g. hydraulic and und coolant unit over touch panel - all analog functions e.g. rpm, magnetic force and feed of Z-axis fpr direct access of the worker over switches on the control panel - 12 month warranty Iedsc S Agvspfx Affetr delivery time approx. 12 weeks max. grinding range: 400 x 200 m

Condition: used, Year of construction: 2009, Grinding machines Travel distance X: 600 mm Travel distance Y :600 mm Travel distance Z: 335 mm Grinding width: 335 mm Grinding length: 800 mm Max. grinding plates: 300 mm Grinding spindle drive: 9,3 kW Speed adjustable: 4200 rpm Distance: table till middle of the spindle: 620 mm Isdpfxsw Eki Ts Affjtr Table size: 600 mm Table longitudinal feed oscillation: 50 m/min Table longitudinal feed creep speed: 5 mm/min PA37K – CNC Profile Dressing Device (Diamond Dressing System)

Condition: excellent (used), Year of construction: 1999, Jung C-740-C year of construction: 1999 control: siemens Itsdpfx Aju I Rtioffsr magnet: 700 x 400 mm max. grinding range: 880 x 460 x 550 mm ( x,z,y) magnet variable attraction force variable speed: 1500-3500 rpm max. load on the table: 800 kg top clamp bottom clamp 2x remote control balancer various grinding stones documentation machine is under power for inspection

Condition: refurbished (used), grinding length: 600 mm, grinding width: 200 mm, grinding length 600 mm grinding width 200 mm electromagnetic chuck 450×175 mm X-travel 660 mm Z-travel 225 mm grinding wheel size 250x25x51 mm Control Jung TouchScreen weight approx. 3000 kg Isdjxal Hyspfx Affetr

Condition: used, Abdreharm RA 1, Abrichtbereich: aushoehlend 0,5 - 32 mm (104 - 162 mm) umfassend 0,5 - 22 mm Abdreharm RA 2, Abrichtbereich: aushoehlend 154 - 210 mm umfassend 10 - 65 mm Abdreharm RA 3, Abrichtbereich: aushoehlend 22 - 70 mm (66 - 120 mm) Itjdo Uryzjpfx Affer

Year of construction: 2015, condition: used, workpiece diameter 300 mm workpiece weight 999 kg workpiece height 145 mm Features: -Digital display vertical axis -Automatic feed -Programmable automatic end stop -Grinding spindle drive with infinitely variable electronic speed control -Infinitely variable cross feed and table rotation -24V magnetic clamping plate 300 mm -Various occupational safety devices, e.g. protective cover monitoring, operating status display via traffic light -Lubricating oil level monitoring -The machine was completely overhauled in 2015, at which time the entire electrical system was replaced with PLC control and 24V control voltage -Paper belt filter system specially designed for this machine Iodpfx Afoxflclofstr The following work has now been carried out: -Replacement of bellows and belts -New bearings for grinding spindle -Grinding carriage bed and rotary table bed scraped by hand to restore better and more precise running characteristics -Grinding carriage and cross table lifted from machine body and all tracks cleaned, lubrication checked -Various wear parts, such as rubber caps and switching elements, replaced -Detailed functional check -Modernisation of feed arm -Paint touch-up work, machine colour: light grey RAL 7035 and RAL 7012

Condition: refurbished (used), Year of construction: 2025, grinding length: 600 mm, grinding width: 250 mm, grinding wheel diameter: 250 mm, JUNG JF520 / JF525 SPM-X rebuilt mechanicaly, geometricaly und elektricaly rebuilt according JUNG acceptance protocoll for new machines - retrofit with new 12“-SIEMENS-Touch-OP control - new electrical cabinet with magnetic control for chuck - plain text error codes - electro mechanical vertikal feed - dresser compensation - automatic lubrication unit - all numeric values (verical feed) und on/off functions e.g. hydraulic and und coolant unit over touch panel - all analog functions e.g. rpm, magnetic force and feed of Z-axis fpr direct access of the worker over switches on the control panel - 12 month warranty max. grinding range: 600 x 250 mm Itedpfx Aobwl Uhsffor delivery time approx. 12 weeks

Condition: good (used), functionality: fully functional, Manufacturer unknown Type: 211 – 25/26 No. 89899 Power: 220V Itedsxc Uanepfx Affer Table length: 250 mm Table width: 260 mm Height: 135 mm Weight approx. 25 kg .

Condition: used, Year of construction: 2010, functionality: fully functional, total width: 2,400 mm, total length: 2,500 mm, total height: 2,300 mm, feed length X-axis: 750 mm, feed length Y-axis: 485 mm, feed length Z-axis: 335 mm, travel distance X-axis: 750 mm, travel distance Y-axis: 485 mm, travel distance Z-axis: 335 mm, grinding wheel width: 600 mm, table width: 300 mm, overall weight: 4,800 kg, Capable of creep feed grinding, plunge grinding, and transverse grinding. This machine also comes with 2x Rotary Diamond Disc dressing units, one unit being stationary and the other unit being an extremely rare option on these machines which is a motorized "swivel" rotary diamond disc dressing unit with a stationary diamond on the end (see pictures). Itedpsxaqm Sofx Affsr

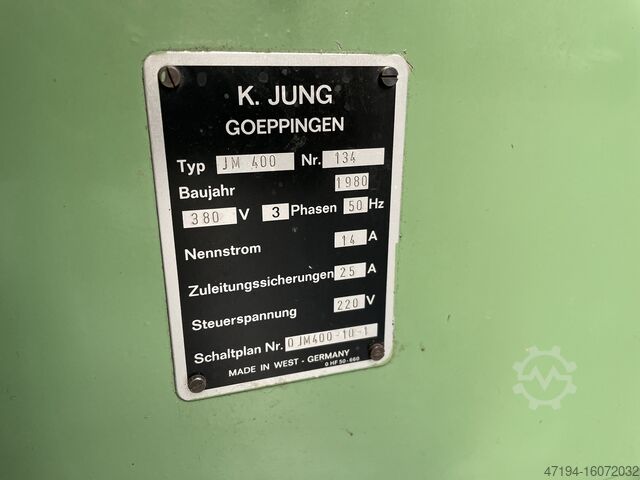

Condition: good (used), Year of construction: 1980, grinding length: 400 mm, grinding width: 150 mm, Jumag surface grinding machine (Jung) JM 400 Year of construction: 1980 Sanding length: 400 mm Sanding width: 150 mm Clamping area: 400 x 150 mm GR. Distance to table grinding spindle. 400 mm Grinding wheels: 200x 16 x 50.8 mm Table longitudinal feed hydr. variable Table cross feed manual/automatic. Grinding head electrically and manually height-adjustable Itjdpfx Afotmtnasfer electric quick adjustment 300 mm/min Sanding spindle motor: 1.5 KW - 2850 rpm Connection: 380V 50Hz 14A Weight: approx. 1000 kg Space requirement: approx. 2200 x 1500 x 1700 mm

Condition: good (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 1054, grinding length: 400 mm, grinding width: 150 mm, Table length: 400mm Table width: 150mm Isdpfx Aor Eq U Soffotr Maximum cutting length: 400mm Maximum grinding width: 150mm Maximum workpiece weight: 75kg Distance spindle to table: 400mm Table speed 1-24 m./min. Sharpening stone diameter: 25mm Spindle speed: 900 – 4500 rpm. Year of construction: 1979

Condition: used, Year of construction: 1980, grinding length 500 mm grinding width 200 mm workpiece height 290 mm Machine from the German Federal Institute of Physics and Metrology - geometrically revised - electrics tested, fully functional, relevant parts replaced - all wear parts replaced - colour light grey, colour condition good Equipment: - electro magnet 500x200mm - grinding spindle overhauled 2-axis display for Y and Z axes Automatic delivery for Y and Z axes Y-axis with zero shutdown Manual hand dresser Stepless speed for grinding wheel V-constant via disc wear Paper band filter system, used Max. height with 250 disc diameter 290mm max. grinding area 600x250mm max. load incl. magnet 100kg Warranty: 1 year on geometry and electronics, Germany-wide Itsdpfx Aswb Hygeffjr Delivery: ex works Shipping time: immediately Payment: before pickup Acceptance at our premises Shipping according to your specifications

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 3806, grinding length: 600 mm, grinding width: 250 mm, grinding wheel diameter: 250 mm, grinding spindle speed: 3,000 rpm, power: 3.5 kW (4.76 HP), Equipment: rotational speed infinitely variable, JUNG JF520 - workshop overhauled Mechanically and electrically inspected and function tested by our JUNG specialists Wear parts replaced Geometry overhauled according to the JUNG new machine protocol - Grinding area: 600 x 250 mm - Stepper motor feed - 3-axis HEIDENHAIN digital readout - Dressing compensation - Magnetic force control - Automatic central lubrication - Used magnetic chuck - Used paper band filter 6 weeks parts warranty Itedpfswz Hf Nox Affjr Delivery time: short notice We are happy to accept your used JUNG grinding machine in part exchange.

Condition: used, Back grinding device with permanent magnetic chuck JUNG type HA 20 Device No.: 3344 Profile depth: max. 15 mm Angle adjustment: 0° to 2° Magnetic plate: 115 x 115 mm Clamping range: 110 x 75 mm Magnetic plate height: 119 mm Itedpodz Sqxsfx Affer Workpiece dimensions L x W x H: max. 60 x 100 x 50 mm Power input: 1 ampere Operating voltage: 24 volts DC (V/DC) - Mechanically switchable permanent magnet Dimensions L x W x H: 500 x 200 x 125 mm Weight: 25 kg Good condition Suitable for tool & die making for tapered, back-ground cutting plates or mold inserts.

Condition: good (used), Magnetic plate, magnetic table, sine table, sine plate, relief grinding device, grinding machine accessories -Design: Cutting tool mold making for conically ground cutting plates or mold inserts -Angle head for surface grinding machine or measuring machine -Magnetic plate -Angle: adjustable Isdeb A Iqdopfx Affetr -Wooden box -Total weight with box: 35 kg

Condition: good (used), grinding length: 400 mm, grinding width: 150 mm, Table length 400 mm Table width 150 mm Grinding length 400 mm Grinding width 150 mm Execution: hydraulic Max. distance from table to spindle-centreline 350 mm Table speeds: stepless from .00 m/min up to 0.0 m/min Automatic vertical feed: from 0.00 0 mm up to 0.013 mm Diameter of grinding wheel 00 mm Width of the grinding wheel 16 mm Grinding wheel speeds: from 800 rpm Voltage 50 Hz 3x 380 Volt Iodpfx Asvga Suoffotr Grinding spindle motor .30 HP Machine's weight about 900 kg Overall dimensions machine: Length 1300 mm Width 1 00 mm Height 1500 mm

Condition: used, Year of construction: 1973, min./max. hole to grind 8 / 10 mm max. grinding depth by internal grinding 150 mm swing dia. 450 mm workpiece spindle bore 35 mm max. swivability 30 ° min/max. table longitudinal travel 5 / 150 mm/min Internal Grinding Machine | D14 - 1973 The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. Ijdpfjt Rlguex Affjtr - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: D-14 | D 14

Condition: good (used), JUNG D22 / Internal Cylindrical Grinding Machine - Machine suitable for internal cylindrical grinding and face grinding - Smallest machinable bore: 14 mm - Largest machinable bore: 150 mm - Grinding length without face grinding attachment: 250 mm - Grinding length with face grinding attachment: [information not provided] - 6 workpiece spindle speeds: 46–270 rpm - Spindle head swivels left/right: 30 degrees - Distance from spindle axis to table center: 250 mm - Maximum distance between workpiece spindle and grinding support: 935 mm - Spindle head adjustable/skewed up to 30 degrees each - Worktable adjustable/skewed forward/backward up to 5 degrees each - Manual / automatic operation - Taper grinding attachment - Steady rest Itedpfx Aow Sv Dheffsr - 3-jaw chuck - Spare grinding spindles Dimensions: LxWxH: 2.8 x 1.5 x 1.8 meters / Weight: 3500 kg Errors and omissions excepted.

Condition: refurbished (used), Year of construction: 2025, rotary table diameter: 320 mm, JUNG H(FR)30 mechanicaly, geometricaly und elektricaly rebuilt according JUNG acceptance protocoll for new machines 12 month warranty Itjdpfx Afebwmamjfor

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Itodpfxjqzkdms Affsr

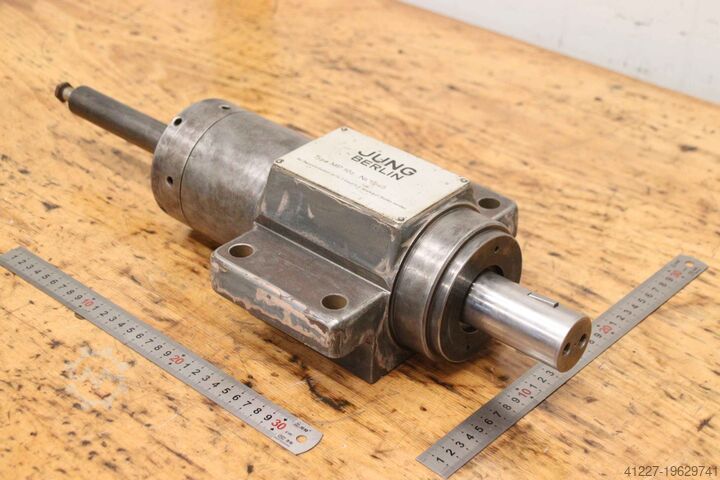

Condition: good (used), Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle -Type: MP 10z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 545/210/120 mm Itjdpfsw Dbzqsx Affsr -Weight: 23.5 kg

Condition: refurbished (used), Year of construction: 2025, grinding length: 600 mm, grinding width: 300 mm, grinding wheel diameter: 300 mm, JUNG JF625 / JF630 rebuilt mechanicaly, geometricaly und electricaly rebuilt according JUNG acceptance protocoll for new machines - retrofit with new 12“-SIEMENS-Touch-OP control - new electrical cabinet with magnetic control for chuck - plain text error codes - electro mechanical vertikal feed - dresser compensation - automatic lubrication unit - all numeric values (verical feed) und on/off functions e.g. hydraulic and und coolant unit over touch panel - all analog functions e.g. rpm, magnetic force and feed of Z-axis fpr direct access of the worker over switches on the control panel Isdpfx Aodrmlnsffjtr - 12 month warranty grinding range: 600 x 250 mm delivery time approx. 12 weeks

Year of construction: 1989, condition: ready for operation (used), Table dimensions X/Y: 600mm/200mm, grinding dimensions X/Y: 600mm/250mm, magnet dimensions X/Y: 600mm/200mm, grinding wheel diameter: 225mm, grinding wheel width: 25mm, grinding wheel bore: 51mm, spindle center-to-table distance: 350mm (+/-50mm), table feed: 20m/min, creep speed: 0mm/500mm/min, speed: 4200rpm, machine dimensions X/Y/Z: approx. 2700mm/2100mm/2100mm, weight: approx. 2500kg. On-site inspection is possible. Ijdpfx Aov Exrwoffstr

Condition: good (used), Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle Ijdpsw Dbyyefx Affjtr -Type: MP 5z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 460/210/115 mm -Weight: 16.2 kg

Condition: used, used, refurbished, 24V-magnetic chucks (flat and sinetable) with and w/o water-cooling in dimensions - 400 x 150 mm - 500 x 200 mm - 600 x 250 mm new wire and plug Itedpfxoc Szv Dj Affsr subject to prior sale
