Used Emag Gear Machining Line for sale (74,055)

Condition: ready for operation (used), Year of construction: 2015, A high-performance planetary gear production line EMAG including automation and peripheral equipment is available. 1) Raw parts storage (stacker) EMAG. 2) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 3) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 4) Vertical hobbing machine EMAG VLC200H, max. workpiece diameter: 200mm, max. module: 4, travel X/Y/Z: 790mm/120mm/400mm, swivel range: +/-35°, control: Siemens 840D sl. 5) Vertical chamfering/deburring machine EMAG VLC100C, max. workpiece diameter: 100mm, max. workpiece height: 150mm, travel X/Z: 900mm/375mm, control: Siemens 840D sl. 6) Internal automation EMAG TrackMotion with 2x TransLift carriages. Type: transfer automation, purpose: part feeding/intermediate station transport/part removal, control: HT8. 7) O-belt automation for each EMAG machining machine with pallet and belt buffer, max. pallets: 24pieces/machine. 8) Marking press Markator for part marking. 9) Part handling unit EKF Automation in gantry design. 10) Basket stacking cell EKF Automation for the finished parts storage, number of stacks: 3. Documentation available. An on-site inspection is possible under power connection. Ksdpfjx Dm D Iox Ap Ajlw

Condition: ready for operation (used), Year of construction: 1959, functionality: fully functional, machine/vehicle number: 80, total height: 1,900 mm, total width: 2,200 mm, total length: 1,500 mm, power: 5 kW (6.80 HP), empty load weight: 2,500 kg, No minimum price – guaranteed sale to the highest bidder! Kjdozk Dzqjpfx Ap Ajlw MACHINE DETAILS Drive system: Conventional Power: 5.0 kW Dimensions & Weight Dimensions (L x W x H): 1,500 x 2,200 x 1,900 mm Weight: 2,500 kg Transport packages: 3 EQUIPMENT Documentation

Condition: repair required (used), functionality: not functional, Drilling machines for turned parts – TRIADE FIR-6 Defective – PLC controller missing. Kljdpfx Ajzmxf Ajp Aew

Condition: excellent (used), Year of construction: 2008, Siemens Sinumerik 840 D, 5 axes controlled. Kjdpfeza Egbox Ap Ajlw Wheel diameter max 2000 mm 700 mm wheel width Machine weight 35,000 kg Space requirements approx. 6.9 x 8.4 x 3.7 m

Condition: excellent (used), max. wheel diameter 200 mm Kedpfx Ajy Umi Ijp Aolw gear width 300 mm module 0,5 - 25 centre distance 750 mm weight of the machine ca. 0,2 t dimensions of the machine ca. 0,8 x 0,6 x 0,6 m worm testing roll-machine

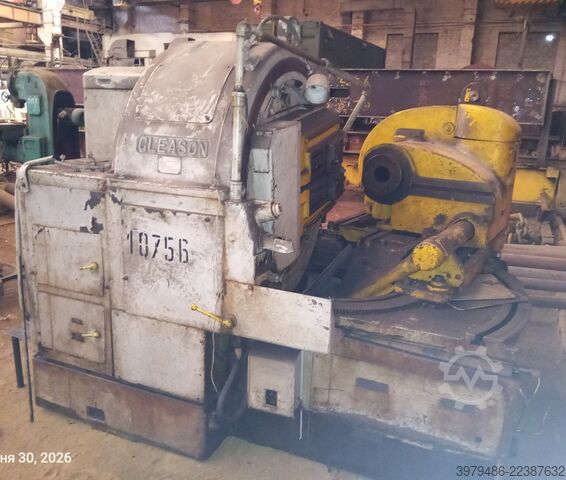

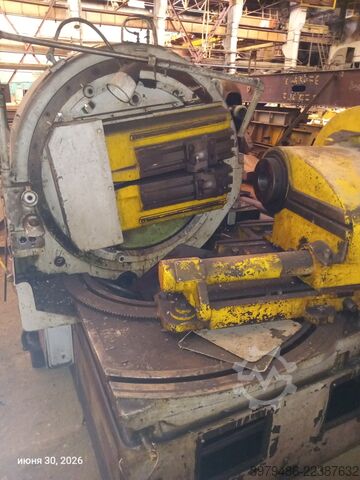

Condition: used, Year of construction: 1970, functionality: not functional, wheel width: 900 mm, For sale: Gleason No. 24A bevel gear shaping machine, manufactured around the 1970s. Maximum diameter: 900 mm. Maximum module: 20. The machine requires electrical system maintenance. Price: 12,000 Euros. Kledpfx Apoznh Suj Aow

Condition: used, Year of construction: 1967, functionality: fully functional, machine/vehicle number: 150:10486, gear diameter: 150 mm, total height: 1,400 mm, total width: 800 mm, workpiece diameter (max.): 150 mm, spindle speed (max.): 1,000 rpm, spindle speed (min.): 112 rpm, overall weight: 1,300 kg, tool diameter: 50 mm, For sale is a reliable Koepfer 150 gear hobbing machine. This machine is ideally suited for the economical production of spur gears, pinions, and other types of gears, both for individual parts and for series production. Kjdpfx Apezfhyys Ajlw

Condition: used, Year of construction: 1963, total height: 1,850 mm, total width: 800 mm, total length: 3,900 mm, Empty weight: 3.000 kg Price: On request Stroke: 1500mm Capacity: 10t - Year: 1963 - Documentation available: Yes - CE certificate present: No - Drive system: Conventional - Power [kW]: 7.5 - Transport dimensions: 3900mm x 800mm x 1850mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Klsdpfx Asy Auy Rep Asw Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), functionality: fully functional, I would be happy to add technical data to the document for you. Gear Hobbing Machine Conventional Country of origin: Germany Technical specifications Details Max. wheel diameter: 800 mm Gear width: 250 mm Max. module: 8 Total power requirement: 2.2 kW Machine weight: approx. 2000 kg Machine dimensions: approx. 2500 x 1600 x 1900 mm Cutter diameter: max. 250 - 285 mm Clamping table diameter: 460 mm Table hole: 70 mm Accessories: Various Control unit: Conventional Additional information Documents I would be happy to add technical data to the document for you. I would be happy to add technical data to the document for you. Gear Hobbing Machine Ksdpozmqalefx Ap Ajlw

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, For sale: this involute gear grinding machine. It is connected and can be tested. Comes with numerous accessories. Technical specifications: max. gear diameter: 7100 mm gear width: 1500 mm max. module: 45 table diameter: 4000 mm grinding wheel diameter x width: 400 x 500 mm max. helix angle: 45 degrees hobber diameter: 500 mm hobber speed: 9–63 rpm Klsdpfxexwlthj Ap Ajw total power consumption: 47 hp Machine weight: 160,000 kg A video of the machine can be sent via WhatsApp.

Condition: used, Fälzelgerät - Back Lining Machine MATADOR 11b Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test Klsdpfx Apsh Axzzo Aew

Condition: used, Fälzelgerät - Back Lining Machine Maior BLM Kedpfx Apeh Axz Te Aelw Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Fälzelgerät / Back Lining Machine Schmedt  Fälzelgerät Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Kljdpfx Aotzc I Djp Aew Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Second-hand machine Second-hand Ganner Compact 30 row drilling machine Features and technical specifications: 2 drilling beams, each with 15 spindles Pitch 32 mm Drilling unit position adjustment 0–650 mm Distance between rows of drill holes: at least 190 mm Spindle speed 2800 rpm Kodpozk Nwdjfx Ap Ajlw Motor power 2 x 0.75 kW Maximum workpiece clamping height: 70 mm Working height 850 mm Compressed air connection 6 bar Availability: by arrangement Location: Solingen

Condition: used, Second-hand machine Klsdpfx Ajzk Nrbsp Aew Features and technical specifications: - double-sided in-line drilling machine - 2 drilling motors, 1.8 kW each, with oil brake cylinders - Stroke: max. 130 mm - with pneumatic changeover valve - 21 spindles, spindle pitch 32 mm - Drilling spacing: max. 640 mm (by moving the workpiece max. 2656 mm) - Gantry clearance 850 mm - Air consumption at 5 atü: approx. 11 l per cycle - Extraction connection 160 mm Dimensions: approx. 3100 x 1100 x 1800 mm Weight: approx. 350 kg Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing Kledpfet Hww Dox Ap Aew and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm Kljdpfxot Hw Aas Ap Ajw gear width 0 mm max. module 34 min. module 1 total power requirement ca. 15 kW weight of the machine ca. 15 t dimensions of the machine ca. 4,20 x 2,00 x 2,90 m Extra große ZR-Prüfmaschine, Gegenhalter

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm Kledpjt Hwqqsfx Ap Asw No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: used, Year of construction: 1969, max. wheel diameter 265 mm gear width 45 mm max. module 4 min. module 0,3 max. workpiece diameter 300 mm stroke length max. 0-50 mm stroke position adjustment 25 mm distance work spindle /surface of the table 170/245 mm spindle taper innen MK 4 table-size 180 mm table hole 95/75 mm strokes per minute 450 - 840 total power requirement 10 kW weight of the machine ca. 5200 kg dimensions of the machine ca. m Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 mm Table travel, cross, approx. 175 mm Number of strokes, infinitely variable 450 - 840 /min Feed range 0.09 - 0.6 mm/stroke Rotary feed, strokes per cutter revolution 2,722 - 681 Total electrical load 10 kW - 380 V - 50 Hz Weight 5,200 kg Accessories / Special Features * Selection switch for various working programmes, and for manual control. * Multi-cut device for roughing, finishing and sparkout, via presettable micrometer screws. * Hydraulic workpiece external clamping device mounted on table, for internal gears (a sort of collet chuck). * Separate switch cabinet. * Separate hydraulic unit. * Hydrostatic straight guide, with cooling aggregate for the hydrostatic pressure oil, separate. * Lateral table adjustment ensures optimal ram lift from workpiece. * Infinitely variable number of strokes via DC motor. * Built-on coolant device. * Presettable impulse counter for switching off table after every cut. With digital display. Kedpfx Apst Hwruo Aelw * Various change gears.

Condition: used, Year of construction: 1996, workpiece diameter 240 mm centre distance 0 mm honing length max. 500 mm max. module 5 total power requirement 12 kW Kedpfx Aet Hwvmsp Ajlw weight of the machine ca. 5000 kg dimensions of the machine ca. m

Condition: excellent (used), Year of construction: 2007, max. wheel diameter 400 mm weight of the machine ca. 4 t Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : KLINGELNBERG Single- and double-flank rolling test machine with structure-borne sound testing model R 30 year 2007 _____ Workpiece outer diameter min. / max. 36 / 300 mm Center distance between workpiece and counter wheel 135 - 290 mm Spindle speeds max. 3.000 rpm Klsdpfx Ajxvdryop Asw Drive torque max. up to 2196 rpm 20 Nm Drive torque max. 2196 – 3.000 rpm 14,7 Nm Spindle drive 4,62 kW Total drive approx. 10 kW - 400 V - 50 Hz Total weight approx. 4.000 kg Accessories / Special Features: • The machine is a universal rolling tester designed for the following testing procedures: o Single-flank rolling test o Double-flank rolling test o Structure-borne noise testing in single and double-flank contact o Helix testing in double-flank contact • WINDOWS PC control for measurement data acquisition and analysis with the NoisyS32 testing software • SIEMENS control panel for operating the machine and evaluating the test cycles • Complete enclosure with electrically monitored sliding doors • Attached control cabinet, various accessories, operating instructions • Unfortunately, the license dongle for activating the measurement software is currently missing. We hope to receive it from the supplier of the machine. Condition : very good condition ! Almost unused ! Soon : Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading We always have a large selection gear machines – CNC or conventional - available. Please let us know your requirements.

Condition: used, Year of construction: 1985, max. wheel diameter 80 mm gear width 150 mm max. module 2,5 min. module Kjdpfx Ast Hw D Rjp Aelw total power requirement 10 kW weight of the machine ca. 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 _____ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. Milling spindle drive 3 kW Total electrical load approx. 10 kW - 50 Hz - 380 Volt Weight approx. 2.400 kg Accessories/Special Features: " Fully automatic operation cycle and minimum idle times due to programmable SIEMENS Program Controls S 5 for all machining steps i.e. rapid gear, feed, milling cutter on/off for the loading device, tailstock, possibly shifting, etc. with unit counter, program numbering including 30 different numeric error displays Pneumatic workpiece-loading and unloading facility parallel to work piece axis upright for rod workpieces approx. 140 mm long x 8 mm , including pneumatic double gripper for loading and unloading of work pieces. Raw parts are inserted into change cassettes externally and then placed into the loading device. The double gripper places the parts between workpiece spindle and tailstock, the tailstock spindle sleeve pushes the parts in the main spindle collet and clamps them simultaneously. The finished parts are ejected from the main spindle, then placed back again into the finished parts cassette by the gripper. The whole process is electrically monitored and checked. The complete loading facility is encased by plexiglass. " Hydraulic work piece clamping device including collets and hydraulic ejector " separate cooling system with magnetic separator * separate hydraulic system * various change gears This machine is set up for worm gears/armature shafts that can be used for adjustable car seats, window lifters, etc.

Condition: used, Year of construction: 1977, max. wheel diameter 400 mm gear width 280 mm max. module 1 min. module 4 Klsdpfxst Hw Hxj Ap Aow total power requirement 15 kW weight of the machine ca. 6000 kg dimensions of the machine ca. m

Condition: used, Year of construction: 1995, max. wheel diameter 80 mm gear width 120 mm max. module 3 min. module 1 control SIEMENS 840 C total power requirement 30 kW weight of the machine ca. 7500 t dimensions of the machine ca. m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 _____ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rates axial/radial/tangential/ 20/4/5/ mm/WP rev. Hob speed steplessly adjustable 0 – 800 rpm Hob Spindle Drive 8 kW - Total Load approx. 30 kW - 400 V – 50 Hz Total weight of Machine approx. 7.500 kg Kodet Hw R Dopfx Ap Aolw Special attachments / accessories: • SIEMENS - CNC-Control Model 840 C for 6 axis (i.e. Hob drive/table drive/ swivel angle of hob head/ Radial axis/Axial Axis/ Tangential Axis ) with a surface especially designed for the gear manufacturing with error display function. • Automatic and contactless tooth meshing device to adjust the hob into workpiece. • Automatic Shifting of hob slide. • Automatic Workpiece handling system Model SSL for high speed loading and unloading of Workpieces, consisting of a steel chain3,, for workpiece carriers and 3-fold WP-Gripper for blanks, for the machining position and for unloading of finished parts onto the steel band. Actual Workpiece size to be machined: approx.. Ø 30 x 120 mm length, helix gear sprocket. Clamping of workpiece between centers by a mechanical, cam controlled quill in tailstock. • complete workarea protection with one sliding door, chip conveyor, small coolant device, oil dust Absorber, WP Carrier, etc. The Machine can be also used for dry cutting. Condition : Satisfactory to Good . Machine can be inspected under power here in stock. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1980, max. wheel diameter 1010 mm gear width 0 mm max. module min. module total power requirement 15 kW weight of the machine ca. 9,5 t dimensions of the machine ca. m Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Kljdot Hwniepfx Ap Ajw Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * Automatic roughing and finishing process via pre-settable counter and built-in feed cam. * Counter for number of teeth. * Counter for number of dressing cycles. * 2 built-on dressing units with three dressing diamonds for radius dressing, side dressing and wheel end dressing. * Built-on index plate for 48 teeth. * Separate coolant device with band filter. * Separate hydraulic unit. * Separate TRION oil mist exhaust. * Various small parts.
