Centrifugal pump + frequency converter

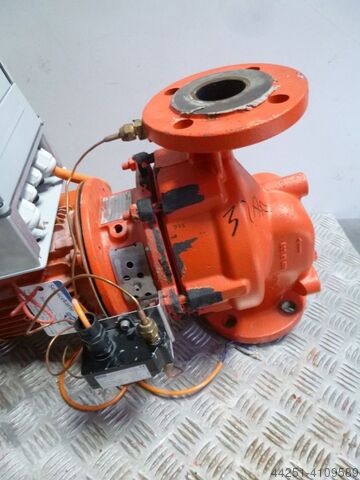

KSB Pumpe Etaline GN 050-160/074 G10

Year of construction: 1997, condition: refurbished (used), 2 pieces volute casing pump in process design 1 piece completely overhauled, new ball bearings for pump and motor. Mechanical seal overhauled by specialist company. All seals new. Flow rate: 6 m³/h Delivery head: 25 m Pump speed: 1440 1/min Shaft seal: double-acting mechanical seal Manufacturer: Burgmann HRZ 13754-00 SIC/SIC/-CAR/SIC-VITON Impeller type: closed two-channel impeller Impeller diameter: 277mm Bearing type: roller bearing Impeller side: 1x NU411 Drive side: 2x 7311 Lubrication type drive end oil Lubricant monitoring Oil level controller Materials: Pump housing: Duplex steel Noridur 1.4593 (9.4460) Wear plate: Duplex steel Noridur 1.4593 (9.4460) Pressure cover: Duplex steel Noridur 1.4593 (9.4460) Shaft: Heat-treated steel C45+N Impeller: Duplex steel Noridur 1.4593 (9.4460) Bearing bracket lantern: Cast iron EN-GJL-250 Shaft sleeve: Duplex steel 1.4462 Nominal size of suction nozzle: DN 80 Discharge connection Nominal diameter: DN 40 Nominal pressure suction PN 10 Nominal pressure pressure PN 10 Coupling manufacturer: Flender Coupling type: Eupex NH with intermediate sleeve Base plate: gray cast iron Motor manufacturer: AEG AM 132 Efficiency class: IE 0 Motor speed: 1476 1/min Frequency: 50 Hz Rated voltage: 400 V Rated motor power: P2 7.50 kW Kdjdjiuznuspfx Ag Aew Thermal class: F Motor protection class: IP55 Cosphi: 0.82 Dimensions: Length: 1270 mm Width: 550 mm Height: 570 mm Weight: 300 kg The material 1.4593 Noridur is very well suited for - Chemical and process engineering industry - Sulphuric and phosphoric acid - Salt extraction and processing - Petrochemical industry - Coking plants - Textile and pulp industry - Food and sugar industry - Mining/coal mining and extraction - Flue gas desulphurization plants - Acidic, chloride-containing washing suspensions - Acidic process water - Waste water treatment/sewage treatment plants - Offshore and marine technology

Year of construction: 1991, condition: like new (used), overall weight: 1,420 kg, rotational speed (max.): 1,485 rpm, 3 stainless steel volute casing pumps in process design 2 x CPK-CM 250-315 built in 1991 1 x CPKN-C1 250-315 year of construction 2011 !!! Price per piece !!! Pumps were operated on a test bench and all have very few operating hours! See pictures !!! Flow rate: 1001 m³/h (278 liters / second) Kdodpoqabiajfx Ag Aow Delivery head / delivery pressure: 18 m / 1.8 bar Pump speed: 1485 1/min NPSH: 5.00 m Shaft seal: single mechanical seal with sealing water Manufacturer: Burgmann Impeller type: closed centrifugal impeller Impeller diameter: 324mm Bearing type: roller bearing Lubrication type: Oil Lubricant monitoring Oil level controller Materials: 1.4408 (AISI 316) Pump housing: 1.4408 (AISI 316) Wear plate: 1.4408 (AISI 316) Pressure cover: 1.4408 (AISI 316) Shaft: Heat-treated steel C45+N Impeller: 1.4408 (AISI 316) Bearing bracket lantern: Gray cast iron JL1040 Shaft sleeve: CrNiMo steel Nominal diameter of suction nozzle: DN 300 Discharge connection Nominal diameter: DN 250 Nominal pressure suction side: PN 16 Nominal pressure pressure side: PN 16 Coupling manufacturer: Flender Coupling type: Eupex NH without intermediate sleeve Base plate: Painted gray cast iron Motor manufacturer: VEM K21R 280S4-Z Efficiency class: IE 0 Motor speed: 1480 1/min Frequency: 50 Hz Rated voltage: 400 / 690 V Rated motor power: P2: 75 kW Thermal class: F Motor protection class: IP55 Cosphi: 0.86 Dimensions: Length: 2120 mm Width: 950 mm Height: 1090 mm Weight: 1420 kg

Year of construction: 1990, condition: used, Material: regular steel Kjdpfxsgb D Irs Ag Aodw Driving force: 55 kW Dimensions: aaprox. L 1600 mm x W 1000 mm x H 900 mm Empty weight: approx. 1500 kg Flow rate: 14.4 m3/h Operating pressure: 100 bar Technical documentation: no Message: piston: 57mm, stroke rate: 326 rpm, stroke: 105mm

Year of construction: 1991, condition: excellent (used), functionality: fully functional, overall weight: 520 kg, Pump was operated on a test bench and has only run for very few operating hours. Flow rate: 400 m³/h ( 111 liters / second ) Delivery head / delivery pressure: 19 meters / 1.9 bar Pump speed: 1450 1/min Kdjdpfx Agsrfdtts Aow NPSH required: 3.83 m Efficiency: 85.7% Shaft power: 24.04 kW Impeller diameter: reduced 264.5 mm (maximum Ø 269 mm) Shaft seal: single mechanical seal Manufacturer: Burgmann Impeller type: closed radial impeller Bearing type: roller bearing Lubrication type: Grease Materials of construction Pump casing: 1.4408 (AISI 316) Wear plate: 1.4408 (AISI 316) Pressure cover: 1.4408 (AISI 316) Shaft: 1.4462 Impeller: 1.4408 (AISI 316) Bearing bracket: Cast iron EN-GJL-250 Shaft sleeve: CrNiMo steel Nominal size of suction nozzle: DN 200 Discharge connection Nominal diameter: DN 150 Nominal pressure suction PN 16 Nominal pressure pressure PN 16 Coupling manufacturer: Flender Coupling type: Eupex NH with intermediate sleeve Base plate: Painted gray cast iron Motor manufacturer: VEM Type: KPER 200 L4 Efficiency class: IE 0 Motor speed: 1435 1/min Frequency: 50 Hz Rated voltage: 380 / 660 V Rated motor power: P2: 30 kW Thermal class: F Motor protection class: IP54 Cosphi: 0.82 Dimensions: Length: 1600 mm Width: 650 mm Height: 820 mm Weight: 520 kg

Year of construction: 1993, condition: used, Material: regular steel Driving force: 55 kW Dimensions: approx. L 1600 mm x W 1000 mm x H 900 mm Empty weight: approx. 1500 kg Flow rate: 14.5 m3/h Operating pressure: 100 bar Technical documentation: no Message: piston: 57mm, stroke rate: 326 1/min, stroke: 105mm Kdodpfx Aogb D Hisg Asw

Condition: used, Electric motor, three-phase motor -Motor: is unused -Power: 55 kW Kdsdjcun N Tepfx Ag Aow -Speed: 2950 rpm -Shaft: Ø 60 mm -Construction: B3/B5 -Protection class: IP 54 -Dimensions: 860/680/H550 mm -Weight: 366 kg

Condition: used, Centrifugal pump, water pump Kdjdpfjcti Amsx Ag Aew -Delivery rate: 20-50 m³/h -Max. H: 14-9 mws -Motor power: 1.85 kW -Speed: 2825 rpm -Pipe connection inlet: DN65 -Pipe connection outlet: DN40 -Dimensions: 530/270/H300 mm -Weight: 45 kg

Condition: used, Gear motor, electric motor, electric gear motor -Manufacturer: Müller & Georg, geared motor type ZGO G3 K 4 -Speed: 160 rpm -Power: 0.25 kW -Design: B3 -Shaft: Ø 22 x 50 mm -Protection rating: IP 54 Kdodpfxsrk S Dfe Ag Aew -Dimension: 450/158/H205 mm -Weight: 14.8 kg

Condition: used, Year of construction: 2009, Centrifugal pump, water pump, domestic water pump, garden pump -Manufacturer: Neptun, garden pump type NGP 100i -Connection: 230 volts -Power: 1000 W Kodpfx Agetnl Ako Ajdw -Flow rate: max. 4600 l/h -Delivery head: max 45 m -Dimensions: 415/220/H230mm -Weight: 9.1 kg

Condition: used, Frequency converter, frequency converter, drive converter, controller, variable speed drive -Input: 380 V 2.4 kW -Output: 165/110 V 294/194 Hz -Power: 3/2 KVA -for: edgebander -Dimensions: 680/360/H290 mm -Weight: 78 kg Kdodpfx Aodtap Teg Aew
