HWM Werkzeugmaschinen GmbH

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, table diameter: 4.000 mm swing diameter: 4.500 mm turning height: 1.600 mm Cross-section of tool slide: 250 x 250 mm power capacity: 1 x 100 kW max. rotational speed: 140 min/1 max. table load: 50 t Kljdjy T I Ddspfx Afgjt 2 pieces of tool changers 40 slots per tool changer

Condition: ready for operation (used), Year of construction: 2007, operating hours: 5,426 h, functionality: fully functional, machine/vehicle number: 101098, travel distance X-axis: 400 mm, travel distance Z-axis: 200 mm, workpiece length (max.): 130 mm, TECHNICAL DETAILS Travel range, X-axis: 400 mm Working stroke, X-axis: 150 mm Travel range, Z-axis: 200 mm Chuck diameter: 160 mm Turning diameter: max. 200 mm Machining diameter: max. 130 mm Part length: max. 110 mm Main spindle Spindle flange according to DIN 55026: Size 5 Spindle bearing, diameter front: 80 mm Speed, hybrid bearing: max. 6,000/7,500 rpm Main drive AC asynchronous motor: 1MB200E Indramat Low-voltage technology: Fanuc Power at 100/40 % duty cycle: 16/24 kW Torque at 100/40 % duty cycle: 102/153 Nm Rated speed: 1,500 rpm Feed drive Rapid traverse speed X: 60 m/min Rapid traverse speed Z: 30 m/min Feed force X and Z: 5 kN Ball screw diameter X and Z: 40 mm Acceleration X/Z: 5/5 m/s² Tool holder Cylindrical shank tool holder according to DIN 69880: 12-fold Shank diameter: 40 mm Tool length incl. holder: max. 190 mm Pitch circle diameter: max. 740 mm Pitch circle diameter Lifetool: max. 620 mm Tool holder with driven tools Cylindrical shank tool holder according to DIN 69880: 12-fold Shank diameter: 40 mm Klsdoy T Iupopfx Afgst Speed: max. 6,000 rpm Rated speed: 3,000 rpm Torque at 10 % duty cycle: max. 37 Nm Torque at 25 % duty cycle: max. 26 Nm Torque at 100 % duty cycle: max. 14 Nm MACHINE DETAILS Closed standard automation Number of carrier bars with workpiece diameter 27 mm: 85 Number of carrier bars with workpiece diameter 18 mm: 130 Permissible total load: max. 120 kg Pick-up stroke depressed: 1 mm Pick-up stroke over-depressed EMERGENCY STOP: 5 mm Pick-up spring travel: max. 30 mm Chain length: 162 inches Chain pitch: 25.4 mm Chain tension with 27 carrier bars: 400 N Chain sprocket: Z = 30 Gear ratio: i = 100 Motor revolution/band revolution: 540 Loading time: 2–4 s Electrical equipment Operating voltage: 400–480 V Control voltage DC: 24 V Control voltage AC: 230 V Frequency: 50/60 Hz Connected load: 31 kW Supply line fuse: 50 A Design of the electrical system: VDE 0113 Operating hours: 5,426 h

Condition: ready for operation (used), Year of construction: 2006, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040033, rotational speed (max.): 5,000 rpm, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Work area X-axis: 360 mm Work area Y-axis: 120 mm Work area Z-axis: 260 mm Handling area X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle bore: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force X/Y: approx. 8,000/10,000 N Feed force Z: 10,000 N Rapid traverse rate X/Z/Y: approx. 80/40/7.5 m/min Acceleration X/Z/Y: 7 m/s² MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle ED, main spindle: 20 kW Torque at 100% duty cycle ED: 105 Nm Power at 40% duty cycle ED: 27 kW Torque at 40% duty cycle ED: 145 Nm Klsdpfx Ajy T Itrsfgjt Dimensions & Weight Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm

Condition: ready for operation (used), Year of construction: 2005, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040018, rotational speed (max.): 5,000 rpm, controller model: SIEMENS Sinumerik, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Work area X-axis: 360 mm Work area Y-axis: 120 mm Work area Z-axis: 260 mm Handling area X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle bore: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force X/Y: approx. 8,000/10,000 N Feed force Z: 10,000 N Rapid traverse rate X/Z/Y: approx. 80/40/7.5 m/min Acceleration X/Z/Y: 7 m/s² MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle ED, main spindle: 20 kW Torque at 100% duty cycle ED: 105 Nm Power at 40% duty cycle ED: 27 kW Torque at 40% duty cycle ED: 145 Nm Dimensions & Weight Ksdpey T Im Ejfx Afgolt Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm

Condition: ready for operation (used), Year of construction: 2004, operating hours: 63,778 h, functionality: fully functional, machine/vehicle number: 06800002061, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS Travel X-axis: 800 mm Travel Z-axis: 300 mm Rapid traverse rate X: 100 m/min Rapid traverse rate Z: 45 m/min Chuck diameter: 200 mm Spindle head, flat flange: F140 h5 Spindle diameter in the front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy when positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque at 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Kodpfx Afoy T Ikkegolt Pressure for clamping device: max. 700 bar Coolant system Capacity: approx. 190 l Pump power: 1.7 kW Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 63,778 h

Condition: ready for operation (used), Year of construction: 2002, operating hours: 74,523 h, functionality: fully functional, machine/vehicle number: 06800001121, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS Travel X-axis: 800 mm Travel Z-axis: 300 mm Rapid traverse rate X: 100 m/min Rapid traverse rate Z: 45 m/min Chuck diameter: 200 mm Spindle head, flat flange: F140 h5 Spindle diameter in the front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy at point positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque, 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Pressure for clamping device: max. 700 bar Coolant system Capacity: approx. 190 l Pump power: 1.7 kW Klodpsy T Id Djfx Afgst Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 74,523 h

Condition: ready for operation (used), Year of construction: 2002, operating hours: 77,119 h, functionality: fully functional, machine/vehicle number: 06810000041, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS Travel X-axis: 800 mm Travel Z-axis: 300 mm Rapid traverse rate X: 100 m/min Kodpfx Afjy T Iddegslt Rapid traverse rate Z: 45 m/min Chuck diameter: 200 mm Spindle head, flat flange: F140 h5 Spindle diameter in front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy when positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque, 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Pressure for clamping device: max. 700 bar Coolant system Capacity: approx. 190 l Pump output: 1.7 kW Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 77,119 h

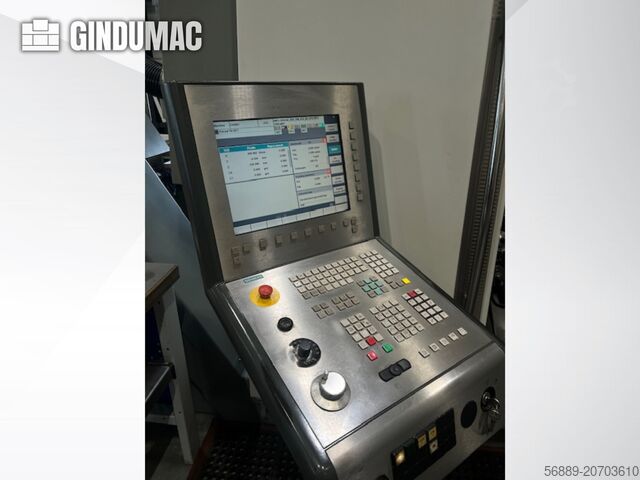

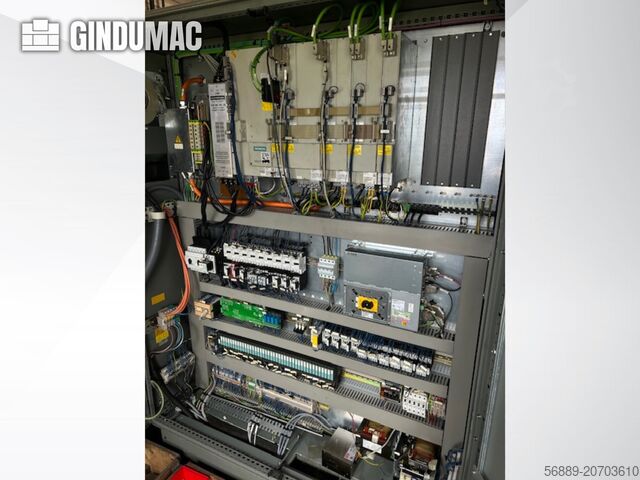

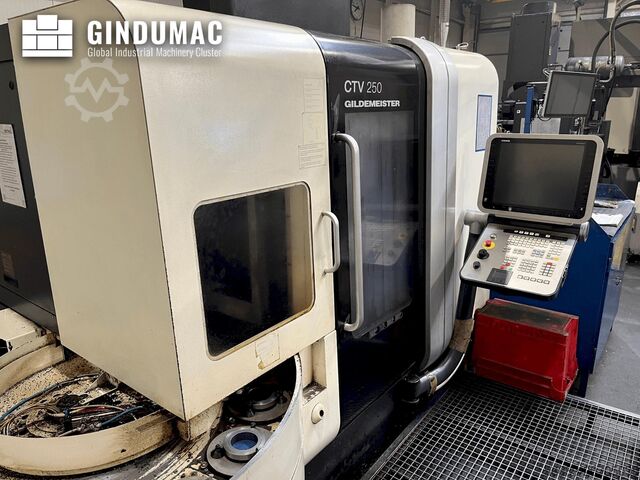

Condition: ready for operation (used), Year of construction: 2012, travel distance X-axis: 1,100 mm, travel distance Y-axis: 180 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 5,000 rpm, controller manufacturer: SIEMENS, controller model: Sinumerik 840D, number of axes: 3, This 3-axis DMG CTV-250 was manufactured in 2012. It features a maximum workpiece diameter of approximately 350 mm and a chuck diameter of 250 mm. The machine is equipped with a 12-position turret and operates at spindle speeds of up to 5000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG CTV-250 vertical turning machine we have for sale. Contact us for further details. • Spindle operating hours: 38,984 h • Axis travels (approx.): X 925–1100 mm; Z 300–350 mm; Y (optional) ±90 mm • Chuck diameter: 250 mm • Turret: 12 positions • Workpiece capacity (model typical): Max diameter approx. 350 mm; max length approx. 200 mm; max weight typically 100–300 kg (depending on setup) • Current configured workpiece diameter (turning): Ø 320 mm Additional equipment Kjdpsy T Iarsfx Afgelt • Chip conveyor • High-pressure coolant system with paper filter • Automatic workpiece loading from tray Technical Specification Driven Tools No

Condition: good (used), Year of construction: 2007, travel distance X-axis: 6,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 200 mm, - Speed range: [rpm]: 6,000 - Torque: [Nm]: 480 - Max. turning diameter over bed: 290 mm - Chuck diameter: 200 mm - Turret: 12-position, VDI 40, Sauter - Driven tools: 7.8 kW - Travel: Kedpfxoy T Hxys Afgslt - X-axis: 550 mm - Z-axis: 200 mm - Rapid traverse (X/Z) [m/min]: 30 / 20 - Feed (X/Z): [m/min.] 11 kN - Features: - Left-hand chip conveyor; 300 mm wide; ejection height 800 mm - Probe; direct linear measuring system; glass scales on all axes - Heidenhain circulating pickup tape - Machine with feed belt for part loading - Specification: - Overhauled in 2007 for approx. €50,000, complete headstock replaced. - Feed unit exchanged.

Condition: good (used), Year of construction: 2022, machine/vehicle number: 25666, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams Klodpfxey Tybze Afgst CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

Condition: good (used), Year of construction: 2019, machine/vehicle number: 25667, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Kljdpfjy Tybnox Afgot Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Line 1 – Hessapp Line 1 consists of 3 Hessapp lathes integrated with gantry loading. Following the turning operations, the line includes: • 2 twin-spindle multi-operation machining centers, make SW BA400, for drilling operations • 1 gear machining machine, make Unisign Univers 6 • Complete robot automation including infeed and outfeed conveyors Line 2 – Maus Line 2 consists of 3 Maus lathes integrated with gantry loading. Following the turning operations, the line includes: • 2 twin-spindle multi-operation machining centers, make SW BA400, for drilling operations • 1 gear machining machine, make Unisign Univers 6 • Complete robot automation including infeed and outfeed conveyors Line 3 – EMAG / Diedesheim / Unisign Klodpfx Afjy S Ty Usgot Line 3 consists of: • 2 EMAG VSC 500 DB machines • 2 Diedesheim VDM55-11 machines • 1 Unisign Univers 6 for gear machining • Complete robot automation including infeed and outfeed conveyors

Condition: good (used), Year of construction: 2006, functionality: fully functional, Line 1 – Hessapp Line 1 consists of 3 Hessapp lathes integrated with gantry loading. Following the turning operations, the line includes: • 2 twin-spindle multi-operation machining centers, make SW BA400, for drilling operations • 1 gear machining machine, make Unisign Univers 6 • Complete robot automation including infeed and outfeed conveyors Line 2 – Maus Line 2 consists of 3 Maus lathes integrated with gantry loading. Following the turning operations, the line includes: • 2 twin-spindle multi-operation machining centers, make SW BA400, for drilling operations • 1 gear machining machine, make Unisign Univers 6 • Complete robot automation including infeed and outfeed conveyors Line 3 – EMAG / Diedesheim / Unisign Line 3 consists of: • 2 EMAG VSC 500 DB machines • 2 Diedesheim VDM55-11 machines Kodpjy S Tx Djfx Afgolt • 1 Unisign Univers 6 for gear machining • Complete robot automation including infeed and outfeed conveyors

Condition: used, Year of construction: 2009, swing diameter 1400 mm faceplate diameter 1250 mm Control SIEMENS work height max. 1100 mm table load 6 t total power requirement 80 kW Crossbeam travel: 700mm Crossbeam support Travel from centre of rotation to the right: 700mm Crossbeam support Travel from centre of rotation to the left: 700mm Machine table drive Main drive power: 80kW Klsdpfjy S D Tfox Afgot Number of gearboxes: 2 Step change: 3.84 Speed range of the 1st gear stage: 2-32-139 rpm Speed range of the 2nd gear stage: 9-125-500 rpm Max. Machine table load: 6 tonnes Feed drive Cross beam support Horizontal feed speed: 0.1 - 8 m/min Cross beam support Vertical feed speed: 0.1 - 8 m/min Cross beam support Rapid traverse speed horizontal/vertical: 8 m/min Cross beam adjustment speed: 425 mm/min Tool system Tool system: 180.1 Cutting force on the turning tool: 30 kN The machine enables additional drilling and milling via an integrated milling unit in the tool change system.

Condition: used, Year of construction: 2012, machine/vehicle number: 104113, comprising: CNC lathe EMAG VL3 V6.1, year 2012, serial no. 104113 and CNC lathe EMAG VL3 V6.1, year 2012, serial no. 104114, each equipped with FANUC SERIES 32i-MODEL A CNC control, robot loading system with loading robot FANUC M10iA, year 2012, each machine with filter system WW ME-FI 600, chip extraction unit Sermeto HENNIG 30 S, EMAG cooling unit, coolant supply system, workpiece conveying system, and hand control panel. Kledpfxsy Sqgxj Afgst

Condition: used, Year of construction: 2005, machine/vehicle number: 564, RETROFIT of the machine in 2010, CNC control FANUC Series 18i TB, total weight 5,500 kg, filtration system W & W FILTERSYSTEME, chip conveyor SEREMETO, cooling unit EMAG HTD 720 Kjdpfx Aoy Sqiaefgjlt

Condition: used, Year of construction: 2012, machine/vehicle number: 103899, comprising: CNC lathe EMAG VL3 DSL, year 2012, serial no. 103899 and CNC lathe EMAG VLY, year 2012, serial no. 10390, each equipped with SIEMENS SINUMERIK CNC control; robotic loading system with FANUC M10iA loading robot, year 2012; each machine featuring a WW ME-FI 600 filtration system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant supply system, workpiece conveying system, and handheld operator panel. Kodpfx Ajy Sqgrefgslt

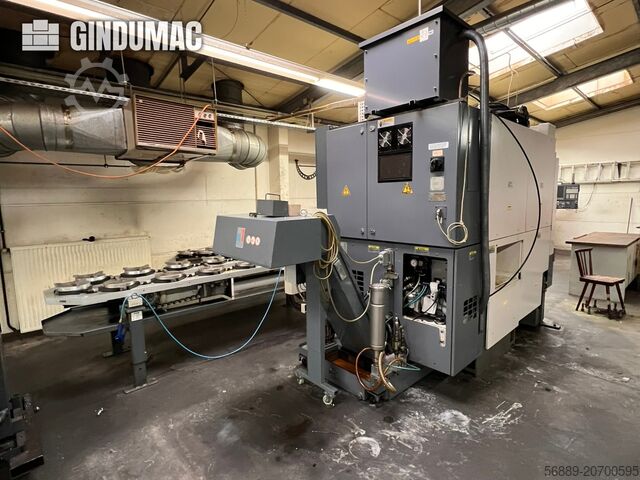

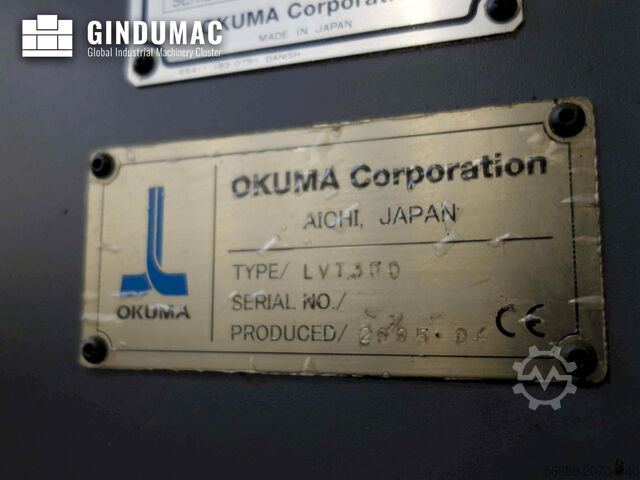

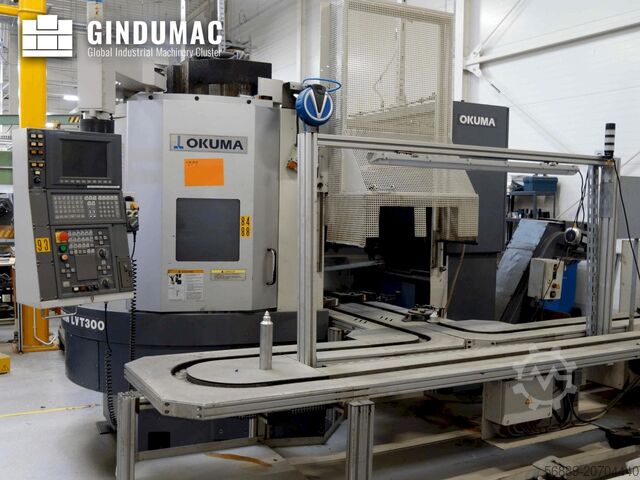

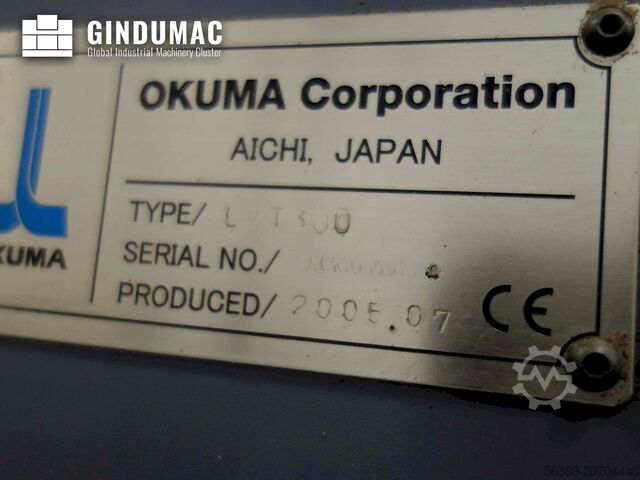

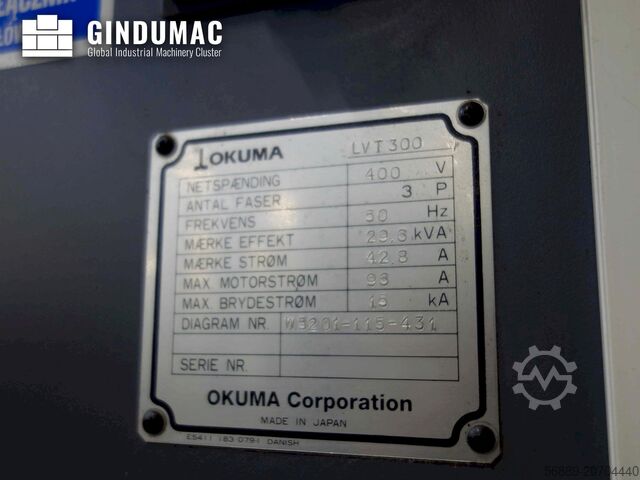

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 220 mm, travel distance Z-axis: 620 mm, spindle speed (max.): 4,000 rpm, overall weight: 5,500 kg, controller manufacturer: OKUMA, controller model: OSP-P200L, number of axes: 2, Vertical turning machine manufactured in 2004. This Okuma LVT300 features a maximum turning diameter of 280 mm and a turning length of 150 mm. It offers X-axis travel of 220 mm and Z-axis travel of 620 mm, with a spindle speed range of 40 to 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LVT300 machine we have for sale. Contact us for further details regarding this machine. Klsdpfey Snpdex Afget • Max. turning diameter: 280 mm • Max. turning length: 150 mm • X-axis rapid traverse: 60 m/min • Z-axis rapid traverse: 30 m/min • Spindle nose: JIS A2-8 • Turret capacity: 12 stations (V12) • Turret type: Bolt-on (VDI-40) • Input voltage: 400 V • Phases: 3 • Frequency: 50 Hz • Maximum power consumption: 29.6 kVA • Total full-load current: 42.8 A • Maximum motor current: 96 A • Short-circuit interrupting capacity: 15 kA • Electrical diagram number: W5201-121-772-2 Technical Specification Driven Tools No

Condition: good (used), Year of construction: 2001, Control: SIEMENS 840D Max. machining diameter: 2,800 mm Ksdpfxoy Snmio Afgjlt Machining height: 1,000 mm Tool holder: CAPTO 6 Including chip conveyor and 2 supports

Condition: good (used), Year of construction: 2001, Control: SIEMENS 840D Machining diameter: 4,000 mm Machining height: 1,400 mm Ksdpfx Afjy Snmcsgjlt Cross slide travel: 850 mm Including chip conveyor and 2 supports

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, table diameter: 4.000 mm swing diameter: 4.500 mm turning height: 1.600 mm Cross-section of tool slide: 250 x 250 mm power capacity: 1 x 100 kW Kljdpfx Ajy Snidjfgjt max. rotational speed: 140 min/1 max. table load: 50 t 2 pieces of tool changers 40 slots per tool changer

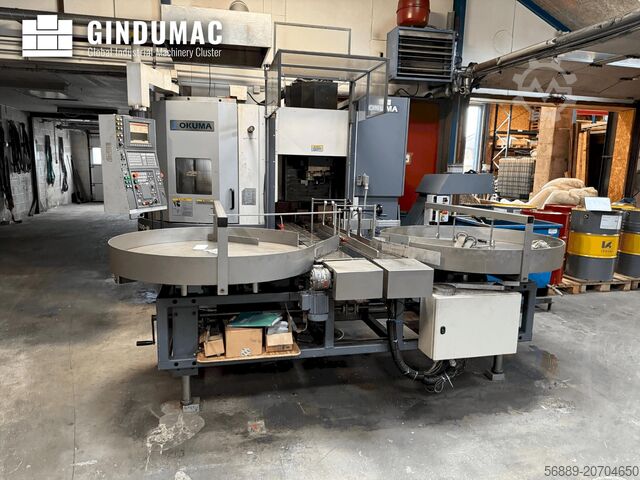

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 220 mm, travel distance Z-axis: 300 mm, spindle motor power: 15,000 W, spindle speed (max.): 4,000 rpm, total height: 2,650 mm, overall weight: 5,000 kg, number of axes: 2, Vertical turning machine manufactured in 2004. This Okuma LVT300 features a maximum turning diameter of 280 mm and a turning length of 200 mm. It includes a spindle speed range of 60–4,000 rpm and a turret with 12 stations for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the Okuma LVT300 machine we have for sale. Contact us for further details. Kodpfxoy Shiqs Afgelt • X-axis rapid traverse: 30,000 mm/min • Z-axis rapid traverse: 30,000 mm/min • Max. turning diameter: ϕ 280 mm • Max. turning length: 200 mm • Turret stations: 12 • Rotary tool speed (M model): 45–4,500 rpm • Floor space: 1,400 x 3,180 mm Technical Specification Driven Tools Yes

Condition: used, Year of construction: 2011, Vertical Twin-Spindle Turning Center - Siemens 840 D CNC control - VSC 400 Duo machine bed - 2 x disc turrets, 12 station, dia. 40 mm, driven - 2 x additional drilling and countersinking stations - Open workpiece transport system Ksdpfx Afoy N Snxegolt - Transfer and turning unit - Interface for an external handling system - Central high-pressure coolant supply with pump, 70 bar - Air blow-off for pick-up unit and clamping devices - Workpiece measurement system - Tool monitoring - Emag network option - Sister tool management system Swing diameter: 260 mm X travel: 860 mm Z travel: 200 mm Main spindles: 2 Max spindle speed: up to 4,500 rpm Spindle distance: 1,055 mm Main drive: 2 AC asynchronous motor 60% / 100% duty cycle: 39 / 28 kW Max torque: 460 Nm Rapid traverse (X / Z): 45 / 30 m/min

Condition: used, Year of construction: 2017, control Fanuc - - - - - - - - - - - - - - - - - - Vertical Turning Machine | EMAG - VL 4 with driven tools, equipped with a workpiece conveyor belt, a chip conveyor, and a coolant system The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Kledsy N D Svepfx Afgot #Tags: VL4 | VL-4

Condition: used, Year of construction: 2017, control Fanuc - - - - - - - - - Klodsy N D Spepfx Afgst - - - - - - - - - Vertical Turning Machine | EMAG - VL 4 with driven tools, equipped with a workpiece conveyor belt, a chip conveyor, and a coolant system The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL4 | VL-4
