Used Holzkraft Asa 2053 for sale (222)

Condition: new, HOLZKRAFT sc 2c sliding table saw - Exhibition machine - Kodpfsu R Sy Njx Afienc pivoting, rip fence with fine adjustment ----- Technical data ----- Extraction nozzle Ø: 120 / 60 mm, Work table height: 900 mm, Speeds: 4,000 rpm, max. saw blade Ø: 315 mm, Cutting width with rip fence: 900 mm, Cutting height 90/45°: 100 / 79 mm, cutting length: 1,600 mm, Swivel range: 90 - 45 °, Dimensions (LxW): 1,020 x 325 mm, Weight: 295 kg - new exhibition machine -

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1 h, functionality: fully functional, machine/vehicle number: KK00037545, table length: 2,500 mm, milling spindle length: 125 mm, total width: 655 mm, type of input current: three-phase, input voltage: 400 V, pivoting range: 45 °, spindle speed (min.): 3,500 rpm, spindle speed (max.): 10,000 rpm, input frequency: 50 Hz, spindle diameter: 30 mm, clamping height: 125 mm, Solid machine with large support table. Includes feed unit VSA 2038 L. Factory tested and in original packaging. Ksdpewu Ux Djfx Afionc

Condition: used, Year of construction: 2003, machine/vehicle number: 4196, Tischlänge : 2500 mm Tischbreite : 800 mm max. Tischhub : 650 mm Ständerkröpfung : 1000 mm Druckschuh : 600 Schleifschuhlänge : 300 mm Schleifschuhbreite : 150 mm Schleifbandlänge : 6400 mm Schleifbandbreite : 150 mm Kedperc I N Sjfx Afisnc Bandabblaseinrichtung : Nein Obere Bandabdeckung : vorhanden Bandgeschwindigkeit 1 : 18 m/sec Laufrichtung : Links/rechts Gewicht ca. : 390 kg Motorleistung : 3 kW Absaugdurchmesser : 2x100 mm

Condition: new, Feeder Year of manufacture 2022 max. throat 1050 mm Feed rollers 3 pieces roller diameter 120 mm Knsdpfx Afonvkhzoioc Roll width 60 mm Rollers spring travel 25 mm Speeds 2/4/5.5/6.7/11/12/15/30 m/min Motor power 0.75 kW/400 V Weight 65 kg Availability: immediately Storage location: Hochheim

Condition: new, power: 7.5 kW (10.20 HP), Equipment: scorer, Net price: €10,500 - Scorer - Saw blade tilt and height adjustment are manual - Cutting height 200mm - Scoring device with separate drive motor - Main saw blade with belt drive and speeds 2800/3665/4800 min¯¹ - High dead weight ensures vibration-free operation - Large extension table with material roller - Parallel fence with round bar guide - Extendable aluminum longitudinal fence with two folding stops - 7.5 kW powerful main motor mounted on a robust cast iron frame - Four-times-cushioned sliding table made of anodized aluminum with high torsional rigidity - Multiple locking on sliding table Knodpfx Aewf Ndcjfiec - Standard with table extension and table extension made of thick plate - Large swing guard hood easily swivels up using a gas spring - Saw blade clamping via tool-free rapid system + Extraction connection Extraction port diameter: 120mm Extraction port diameter for saw guard: 80mm + Electrical data Connection voltage: 400V Mains frequency: 50Hz Nominal power consumption: 8.3kW Output power: 7.5kW + Sliding table and table Sliding table length: 3200mm Sliding table height: 890mm Table height: 890mm + Circular saw unit Cutting width with parallel fence: 1450mm Max. cross-cutting width left of saw blade: 3200mm Saw blade tilt: 90 – 45° Max. cutting height 90°: 200mm Max. cutting height 45°: 140mm Saw blade diameter: 550mm

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, cutting length (max.): 3,200 mm, cutting width (max.): 1,450 mm, cutting width at rip fence: 140 mm, cutting height (max.): 200 mm, cutting height with scoring (max.): 200 mm, saw blade diameter: 550 mm, table length: 3,200 mm, overall weight: 1,280 kg, rotational speed (min.): 2,800 rpm, rotational speed (max.): 4,800 rpm, power: 7.5 kW (10.20 HP), Equipment: motor brake, scorer, Heavy format circular saw with scoring unit and Siemens three-axis control Hanging control panel with Siemens control and 10" touch display Control of the saw blade height/inclination and positioning of the parallel stop via the control panel Max. cutting height 200mm Scoring device with separate drive motor Main saw blade with belt drive and speeds of 2800/3665/4800 min¯¹ High weight ensures vibration-free operation Large outrigger table with material roll Extendable aluminum longitudinal stop with three folding stops and digital position display 7.5 kW main motor mounted on a robust cast iron frame Four-bearing format sliding carriage with double roller carriage made of anodized aluminum with high torsional rigidity Multiple locking on the sliding table Standard with table extension and table extension made of sheet steel Kodjvmfawopfx Afionc Large pendulum protection hood conveniently operated using a gas pressure spring can be swiveled up Saw blade clamped via tool-free Rapid system The panel saw is set up in our demonstration center in Chemnitz. It is new and in an unused condition. We are happy to help with transport, assembly and instruction.

Condition: new, Bandsaw HOLZKRAFT HBS 433 - Exhibition machine - Saw blade guide top, Saw blade guide at bottom, Quick clamping device via eccentric lever ----- Technical data ----- Rollers Ø: 430 mm, max. cutting height: 270 mm, Kodpfx Afeu R S Akoisnc max. cutting width with fence: 370 mm, max. cutting width without stop: 410 mm, max. belt length: 3,345 mm, Table size: 610 x 431 mm, Table inclination: -10 - +45 °, Motor 400 V: 1.5 kW, suction nozzle Ø: 2 x 120 mm, Cutting speed: 900 / 450 m/min, Dimensions (LxWxH): 768 x 512 x 2,048 mm, Weight: 130 kg Scope of delivery: 3 band saw blades 6 / 16 / 25 mm - new exhibition machine -

Condition: new, Holzkraft FKS 550-3200 PRO sliding table saw 5200550 Heavy-duty sliding table saw with scoring unit Saw blade tilt and height adjustment is manual Max. cutting height 200mm Scoring unit with separate drive motor Main saw blade with belt drive and speeds 2800/3665/4800 min¯¹ High dead weight ensures vibration-free running Large cantilever table with material roller Rip fence with round bar guide Extendable aluminum longitudinal fence with two folding stops 7.5 kW main motor mounted on robust cast iron frame Quadruple-mounted format sliding carriage made of anodized aluminum with high torsional rigidity Multiple locking device on the sliding table Table widening and table extension made of strong sheet metal as standard equipment Large pendulum protection hood can be conveniently swung up by means of a gas pressure spring Saw blade clamping via tool-free Rapid system TECHNICAL DATA: Dimensions and weights Length (product) approx. 3386mm width/depth (product) approx. 3703mm Height (product) approx. 1330mm Weight (net) approx. 1102kg Connection suction Suction port diameter 120mm Suction port diameter saw blade guard 80mm Electrical data Supply voltage 400V Mains frequency 50Hz input power 7,5kW Output power 6kW Motor speed 2800min¯¹ Sliding carriage and table sliding table length 3200mm sliding table width 416mm height of sliding table 890mm Table length 1255mm Table width 685mm Noise emission Sound pressure level 96,5dB(A) Circular saw unit Cutting width with rip fence 1450mm Kedpfxskknaaj Afionc Max. Cutting width to the left of the saw blade 3200mm Saw blade inclination 90 - 45 Max. Cutting height 90°200mm Max. cutting height Cutting height 45°140mm Diameter saw blade 550mm Speed saw blade 2800/3665/4800 min¯¹ Scoring unit Diameter scoring saw blade 120 - 130mm Speed scoring saw blade 8000min¯¹ Holkraft dealer - accessories available on request!

Condition: new, Year of construction: 2021, Feeder Year of manufacture 2021 max. throat 1050 mm Feed rollers 3 pieces roller diameter 120 mm Roll width 60 mm Rollers spring travel 25 mm Speeds 2/4/5.5/6.7/11/12/15/30 m/min Motor power 0.75 kW/400 V Weight 65 kg Availability: immediately Ksdpfx Afenvkh Eeienc Storage location: Hochheim

Condition: new, Holzkraft L invincibile si 3 BLADE OFF sliding table saw BLADE OFF safety system - exhibition machine- ----- Technical specifications ----- Supply voltage: 400 V, Mains frequency: 50 Hz, Scoring motor power: 1.3 kW, Drive motor power: 9.0 kW, Format sliding table length: 3200 mm, Format sliding table width: 360 mm, Table length: 1040 mm, Kjdov Nhg Sspfx Afionc Table width: 630 mm, Cutting width with parallel stop: 1500 mm, Max. cutting width to the left of the sawblade: 3200 mm, Trimming length: 3200 mm, Sawblade inclination: 90 - 45°, Max. cutting height 90° with 400 mm sawblade: 120 mm, Max. cutting height 45° With 400 mm saw blade: 89 mm, Saw blade speed: 3000 - 5000 rpm, Scoring saw blade diameter: 120 mm, Scoring saw blade speed: 8500 rpm, Length approx.: 7250 mm, Width/Depth approx.: 4460 mm, Height approx.: 1770 mm, Net weight approx.: 1307 kg, Extraction nozzle diameter: 100 and 120 mm The BLADE OFF system detects potential hazardous situations early and prevents them by retracting the saw blade into the machine table in a fraction of a second. With the help of sensors, the system is able to distinguish between the workpiece and the operator. An LED light in the saw blade guard indicates with a green light whether the safety system is active. Controlled via the 15" eye-S control console. Connection to the SCM Thundercut (optimizer/sequence control app) is possible. Three longitudinal stops with integrated digital displays. Electrically adjustable parallel stop. Start/stop buttons for the main and scoring saw blades integrated in the sliding carriage. Special guides and an innovative curved grinding system enable the edger carriage to have a fourfold higher load capacity. Ball-bearing telescopic arm ensures greater stability and smoother workpiece guidance. Equipment Two-axis scoring unit with automatic positioning Anodized aluminum sliding table On/off switch on the sliding table for the main and scoring sawblade motors Trimming frame with angle-adjustable aluminum telescopic stop Material roll on the trimming frame Motorized saw parallel stop via control panel Three longitudinal stops with integrated digital displays Eccentric clamp Control of sawblade height, tilt, and parallel stop Pivoting control panel on top Table extension Table extension Sawblade pendulum protection - new exhibition machine -

Condition: new, Holzkraft minimax t 45c table router (5502044) Low-priced, with rigid milling spindle and cast iron work table. - Sturdy cast steel construction - With rigid milling spindle - 3 spindle speeds 3500 to 10000 min¯¹ - Milling spindle with right-left rotation - Large dimensioned milling unit made of grey cast iron, directly fixed to the table - With suction hood under the worktable for better extraction - Solid and precise cast iron table - Quick and easy speed change - Powerful motor with 5,0 kW - Standard arc milling protection hood - Quality Made in Italy Equipment details Knsdokyt Ulopfx Afiec Cast iron milling unit - Directly mounted on the milling table - Milling spindle mounted high up with precision ball bearing, thus lowest possible bearing load and longest possible service life - 3 milling speeds from 3500 to 10000 min¯¹ Powerful motors - Equipped with powerful three-phase motor Milling guard The standard milling guard is equipped with a height-adjustable guide rail and guard plate as standard for maximum safety. Milling fence - Precise milling fence with a quick adjustment and a fine adjustment with scale on the fence jaw. - The integrated suction connection ensures a clear view Milling table opening - A large milling table opening also allows the use of larger flattening cutters and tenoning and slotting tools above and below the table Curved milling protection hood - Included as standard Reversible fence jaws - versatile integratable stop for bridging the tool gap - enables safe working even with narrow workpieces Accessories HOLZKRAFT safety system fence jaws, adjustable - Optimum protection on every router table, individually adjustable to the task at hand - Universal basic elements for mounting AIGNER safety and working devices - Quickly adjustable due to simultaneous clamping of all individually adjustable rods - Made of high quality aluminum - Can be used universally on all HOLZKRAFT table routers - 500 mm: Item no.: 5851000 - 650 mm: Item no.: 5851650 TECHNICAL DATA Dimensions and weights Weight (net) approx.: 240kg Suction connection Suction port diameter: 2 x 120mm Work table Working table length:1000mm working table width: 575mm table height: 900mm Set up information Required space length: 1945mm Required space width/depth: 920mm Explanation of space requirements: The dimensions take into account maximum travel distances or useful lengths. Machine body length: 1000mm Machine body width/depth: 575mm Working area length: 1600mm Working area width/depth: 1600mm Explanation of working area: Please add the dimensions given with the space requirement to obtain the free installation area recommended for the machine. Electrical data Supply voltage: 400V Mains frequency: 50Hz Power drive motor: 5,0kW Milling spindle useful length of the spindle: 100mm spindle protrusion max. over table: 130mm Spindeldrehzahl(en): 3500/7000/10000min¯¹ spindle arbor diameter: 30mm Milling tool diameter max. Tool diameter max. lowerable: 180mm Tool diameter max. profile milling: 210mm SCOPE OF DELIVERY - arch milling protection cover - aluminum stop jaws Holzkraft dealer - accessories available on request!

Condition: new, Year of construction: 2021, Feeder Year of construction 2021 max. throat depth 1050 mm Feed rollers 4 pieces Roller diameter 120 mm Roll width 60 mm Spring travel of the rollers 25 mm Speeds 2/4/5.5/6.7/11/12/15/30 m/min Motor power 0.75 kW/400 V Feed: dimensions LxWxH 750x300x570 mm, weight 33 kg Kodpfxotmyq Rs Afienc Stand: dimensions 1100x320x300 mm, weight 42 kg Availability: immediately Storage location: Hochheim

Condition: new, Minimax ME 35 TR S Holzkraft Edge Banding Machine Knedpfx Afov Nhhpsisc -Exhibition Machine- This offer is an equipment package. The following items and options are already included in the price: - New exhibition machine -

Condition: new, Holzkraft HBS 513 S wood band saw Precision saws with great cutting performance for the professional. Heavy-duty design with high dead weight for maximum running smoothness Particularly quiet and precise running thanks to torsion-resistant machine housing Precisely adjustable aluminum parallel fence Cast flywheels with rubber coating and chip scraper brush Large cast iron saw table, swivels from 0° to +45° with ground and polished surface Precise cutting height adjustment via toothed rack with millimeter scale Two suction ports Automatic release of the saw band brake to adjust the saw band. TECHNICAL DATA: Dimensions and weights Length (product) approx. 1150mm width/depth (product) approx. 950mm Height (product) approx. 2000mm Weight (net) approx. 295kg Connection suction suction connection diameter 2 x 120mm Work table(s) working table length 640mm working table width 500mm Work table height 920mm Work table extension length 150mm Work table widening width 500mm working table inclination 0 - 45 Supply voltage 400V Mains frequency 50Hz output power 3,5kW Cutting range cutting height max. 90°350mm Cutting height max. 45°200mm Cutting width max. with fence 415mm Cutting width max. without fence 500mm Saw band speed(s) 1320m/min Flywheel diameter 510mm Saw band length 4100mm Saw band width 25mm Saw band width max. 38 Saw band thickness 0,6mm Saw band guide High quality, fixed saw band guide SCOPE OF DELIVERY: Angle stop Saw band Sliding stick Ksdpfx Aeg Hzw Tjfienc Holzkraft dealer - please send us your inquiry

Condition: new, Year of construction: 2024, New machine Knedpfewb Eh Njx Afijc Year of manufacture 2024

Condition: new, HOLZKRAFT sc 3c 26 sliding table saw - Exhibition machine - pivoting, rip fence with fine adjustment ----- Technical data ----- Trimming length: 2,600 mm, max. cutting height 90°: 100 mm, max. cutting width to the left of the saw blade: 2,310 mm, Knedpfxju R S Dhj Afijc Cutting width with rip fence: 900 mm, max. saw blade Ø: 315 mm, Main saw blade speed: 4,000 rpm, Motor power 400 V: 5.0 kW, Extraction nozzle Ø: 120 / 60 mm, Work table height: 900 mm, Table dimensions: 840 x 560 mm, Format sliding carriage dimensions: 270 x 124 x 2,600 mm, Transport width: 900 mm, Weight: 385 kg - new exhibition machine -

Condition: new, Holzkraft minimax sc 2c sliding table saw 5504215 With tiltable saw blade and high-quality sliding sizing carriage made of anodized aluminum Cutting plane directly on the saw blade Large-dimensioned saw unit made of cast iron, double-mounted on the cast table - guarantee for stability, precision, smooth running and long service life Precision-guided format sliding carriage made of aluminum, anodized as standard 10-year HOLZKRAFT warranty on wear of the guide tracks of the sliding carriage Rip fence as standard with round rod guide and fine adjustment Kjdjkkm T Repfx Afijnc Large work table made of milled grey cast iron Smooth running and precise cuts Standard table widening and table extension allow easy working with larger workpieces Extendable aluminum telescopic fence with angle adjustment and two professional folding fences Made in Italy Dimensions and weights: Weight (net) approx. 295kg Connection suction Suction port diameter 120mm Suction port diameter saw blade guard 60mm Installation information Transport width 700mm Machine body length 802mm Machine body width/depth 615mm Required space length 3860mm Space requirement width/depth 2750mm Explanation of space requirements The dimensions take into account maximum travel distances or useful lengths Working area length 1000mm Working range width/depth 2000mm Supply voltage 400V Mains frequency 50Hz Power drive motor 4,0kW Rated operating mode drive motor S6 Duty cycle drive motor 40% Sliding carriage and table Length of sliding table 1600mm Width of sliding table 270mm Format sliding carriage height 124mm Table length 1020mm table width 325mm table height 860mm Circular saw unit Cutting width with rip fence 900mm Max. Trimming width left of saw blade 1660mm Trimming length 1600mm Saw blade inclination 90 - 45 Max. Cutting height 90°100mm Max. cutting height Cutting height 45°79mm Diameter saw blade 315mm Saw blade speed 4000min¯¹ Holkraft dealer - accessories available on request!

Condition: new, Year of construction: 2021, New machine Year of construction 2021 for wood dust and chips Designed for commercial use Motor 2.2 Kw IE 3 Speed 2874 rpm. Suction nozzle 160 mm Filter area 9.21 m² Pneumatic filter cleaning Sound pressure level 73 dB(A) Knodsqrw Erepfx Afijc Nominal volume flow 1448 m³/h Negative pressure 2247 pa Chip collection volume 2x165 l LxWxH 1755x830x1654 mm Weight approx. 274 kg Availability: short term Storage location: Hochheim

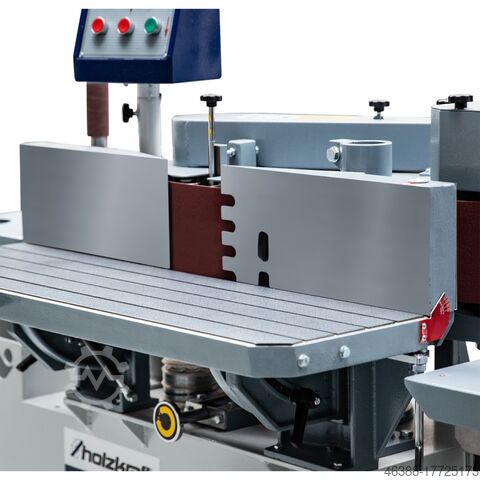

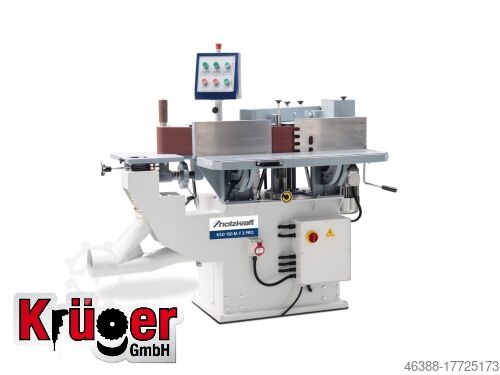

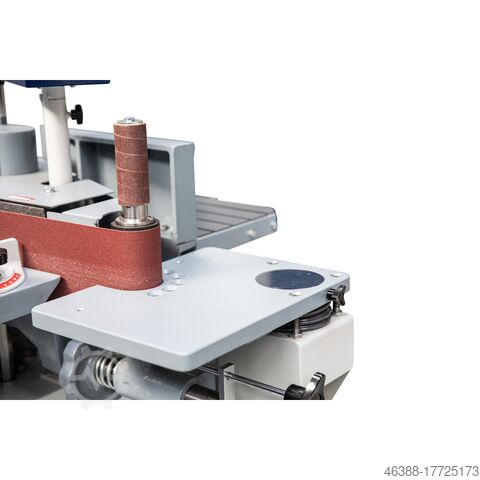

Condition: new, Edge sanding machine KSO 150 M F 3 PRO Holzkraft Promotional model from stock -1x sanding belt K100 -5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm -6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm Knjdou R S Dzepfx Afisc -board tool -Mitre fenceDimensions and weights: - Length (product) approx.: 1820 mm - Width/depth (product) approx.: 1050 mm - Height (product) approx.: 1470 mm - Weight (net) approx.: 400 kg Drive power: - Oscillation motor power: 0.38 kW Suction connection: - Suction nozzle diameter: 150 mm Work table(s): - Worktable length: 1000 mm - Worktable width: 280 mm - Table tilt: 45 / 35 ° Electrical data: - Supply voltage: 400 V - Mains frequency: 50 Hz Sanding unit: - Sanding belt length: 2640 mm - Sanding belt width: 150 mm - Belt speed(s): 14 m/s - Oscillation stroke: 20 mm - Sanding surface length: 890 mm - Sanding surface width: 150 mm - Sanding height max.: 150 mm Subject to prior sale. - new exhibition machine -

Condition: new, Holzkraft VPS 2241 VR Vertical panel saw 5600241 Precise vertical panel saw Smooth and ergonomic operation Pre-scoring device for tear-free cutting quality Slat deflection is manually operated by a lever Continuous central workpiece support Two dimensional stops Transport rollers lifted by pedal for easy movement of heavy panels without damaging them Fixed material support for stable workpiece position Modular welded machine frame torsion-free and self-supporting Saw unit with chain guide and two operating levers Large opening for saw blade change TECHNICAL DATA: General information Cutting height 2200mm Cutting length 4100mm Cutting depth 60mm Saw blade diameter 250mm Kedpfx Afokktcfjienc Saw blade speed 4800min¯¹ scoring saw blade diameter 80mm Scoring saw blade speed 8500min¯¹ Stops 2pcs Sound pressure level 89,2dB(A) Dimensions and weights Height (product) max. 3100mm Length (product) approx. 5300mm width/depth (product) approx. 1800mm Height (product) approx. 3000mm Weight (net) approx. 600kg Connection suction Suction connection diameter 1 x 100mm Air requirement suction min. 1000m³/h Air speed min. 20m/s Electrical data Power drive motor 3kW Supply voltage 400V Mains frequency 50Hz SCOPE OF SUPPLY: Saw blade Ø 250 x 30 x 3,2 mm Z80 trapezoidal scoring saw blade Ø 80 x 2,8-3,6 mm Z20 Holkraft dealer - accessories available on request!

Condition: new, Year of construction: 2021, New machine Year of manufacture: 2021 Equipment and technical specifications: HOLZKRAFT HBS S - Precision wood band saw in a heavy-duty professional version with quick-action saw blade clamping system for professional users Heavy-duty professional version with a high dead weight for maximum smoothness Smooth and precise operation thanks to the torsion-free machine housing Large, one-piece gray cast iron saw table with a ground and polished surface The solid saw table is easily and conveniently adjusted via a handwheel and rack guide The inclination is continuously adjustable from 0° to 45° (patented) Large cast iron parallel stop Fast and precise cutting height adjustment via handwheel and rack with millimeter scale Large cast iron parallel stop With angle stop as standard Technical specifications: Work table dimensions: 830 x 600 mm Cutting speeds 1615 m/min Flywheel diameter 630 mm Max. cutting height 400 mm Max. cutting width with/without stop 570/610 mm Saw blade length 4600 mm Precision guide top/bottom Saw table tilt 0-45° Motor power 400 V / 50 Hz / P2 3.75 kW Extraction nozzle diameter 2 x 120 mm Incl. saw blades: (Uni 4600x10x0.5 mm; Z4) (Uni 4600x20x0.5 mm; Z4) (Uni 4600x25x0.5 mm; Z4) Ksdpfx Afjv Ntakeienc Location: Solingen Availability: Immediately

Condition: new, Table router HOLZKRAFT t 45c LL With table extension right and left, Knodpou U Rfpjfx Afiec and extendable workpiece support ----- Technical data ----- Table size: 1,945 x 695 mm, max. spindle projection over table: 130 mm, Useful length of milling spindle: 100 mm, max. retractable milling cutter Ø: 180 mm, Speeds: 3,500 / 7,000 / 10,000 rpm, Motor 400 V: 6.6 HP / 5.0 kW, suction nozzle Ø: 2 x 120 mm - Special offer price - - new exhibition machine -

Condition: new, Holzkraft minimax sc 1g sliding table saw Ultra-compact design with tiltable saw blade and unique features in this performance class. The working table made of heavily ribbed cast iron and the base frame made of welded steel guarantee torsional stiffness and vibration-free work Maximum length for formatting 1200 mm Format sliding carriage made of anodized aluminum Cutting plane directly on the saw blade Saw unit can be tilted up to 45 degrees Powerful motor Trimming frame with aluminum crosscut fence and folding fence for panels and large workpieces Rip fence as standard with round bar guide and fine adjustment High quality machine at a real entry price Made in Europe TECHNICAL DATA: Weight (net) ca.170kg Connection suction Suction port diameter 120mm Suction port diameter saw blade guard 60mm Installation information: Transport width 680mm Required space length 2613.5mm Required space width/depth 2134mm Explanation of space requirements The dimensions take into account maximum travels or useful lengths Working area length 1600mm Working range width/depth 2300mm Supply voltage 400V Mains frequency 50Hz Power drive motor 1,8kW Rated operating mode drive motor S6 Duty cycle drive motor 40% Sliding carriage and table: Format sliding carriage length 1140mm Format sliding carriage width 200mm Format sliding carriage height 70mm Table length 1024mm Table width 224mm table height 900mm Circular saw unit: Cutting width with rip fence 700mm Max. Trimming width left of saw blade 1200mm Trimming length 1200mm Saw blade inclination 90 - 45 Knodpfx Aegndx Ujfisc Max. Cutting height 90°67mm Max. cutting height Cutting height 45°40mm Diameter saw blade 250mm Speed saw blade 3900min¯¹ Please send us your inquiry!

Condition: new, Holzkraft minimax si 400es 32 sliding table saw 5504754 In heavy-duty professional design with scoring unit and format sliding carriage made of anodized aluminum. Scoring unit equipped with its own drive and easily adjustable from the outside Smooth-running and precise format sliding carriage made of anodized aluminum with proven and permanently smooth-running ball contact system on hardened, 10-year warranty on wear of the guide tracks Large table extension (longitudinally adjustable) with material roller on telescopic arm Extendable telescopic cross-cut fence with two folding stops Precise rip fence, foldable for large panels, with quick clamping and integrated fine adjustment Table widening, table extension and eccentric clamp as standard equipment Sawing unit made of a robust cast iron ring with permanently precise dual pivoting segment guide and zero-point pivoting for a smooth and perfect cut, 6-year Holzkraft warranty on wear of the pivoting segments Large-surface work table made of stress-free gray cast iron High dead weight ensures precision and smooth running Equipped with powerful three-phase motor Version M: Height adjustment and tilting of the saw unit electrically, digital display for tilting Version A: On/off switch on the sliding carriage Version M A 3: Programmed control of the saw blade height and tilt and the position of the rip fence, stepless positioning of the rip fence via switch or automatic positioning system, position display via encoder, adjustment via ball screw, incremental adjustment option UP version: swivelling control panel at eye level Made in Italy TECHNICAL DATA: Dimensions and weights Weight (net) approx. 715kg Suction connection Suction port diameter 120mm Suction port diameter saw blade guard 80mm Installation information Transport width990mm Machine body length 1900mm Machine body width/depth 885mm Required space length 7180mm Space requirement width/depth 4860mm Explanation of space requirements The dimensions take into account maximum travel distances or effective lengths Working area length 1600mm Working area width/depth 2300mm Explanation of working area Please add the dimensions given to the space requirement to obtain the free installation area recommended for the machine. Electrical data Supply voltage 400V Mains frequency 50Hz Power scoring motor 0,55kW Knodpfjkkrm Rox Afiec Power drive motor 7,0kW Rated operating mode drive motor S6 Duty cycle drive motor 40% Sliding carriage and table Length of sliding table 3200mm Format sliding carriage width 360mm Format sliding carriage height 142mm Table length 940mm Table width 560mm table height 900mm Circular saw unit Cutting width with rip fence 1270mm Max. Trimming width left of saw blade 3260mm Trimming length 3200mm Saw blade inclination 90 - 45 Max. Cutting height 90°136,5mm Max. cutting height Cutting height 45°97mm Explanation max. cutting height Independent of scoring saw blade diameter 400mm Explanation Diameter of saw blade Independent of scoring unit Speed of saw blade 4000min¯¹ Scoring unit Diameter of scoring saw blade 120mm Speed of scoring saw blade 9200min¯¹ Holzkraft dealer - accessories available on request!

Condition: new, Holzkraft HBS 433 action set wood band saw For the craftsman. TOP in quality, workmanship and price-performance ratio. Particularly smooth and precise running thanks to a torsion-free machine housing and a solid base made of sheet steel. Cast iron saw table with precisely ground and polished surface Convenient laser device for cutting line marking Quick saw blade clamping via eccentric lever on the rear side of the machine Two speeds as standard Precise 3-roller saw band guides, top and bottom as standard Fast cutting height adjustment via rotary knob and toothed rack with millimeter scale Smooth-running aluminum parallel fence with eccentric quick clamping and magnifying glass Standard angle stop, adjustable 60° on both sides Safety switch for automatic shutdown when door is opened TECHNICAL DATA: Dimensions and weights Length (product) approx. 820mm width/depth (product) approx. 730mm Height (product) approx. 1852mm Weight (net) approx. 130kg Connection suction Suction port diameter 2 x 120mm Work table(s) Knodpsg Hzwzefx Afisc Working table length610mm Working table width 431mm Working table height 950mm working table inclination -10 - 45 Supply voltage 400V Mains frequency 50Hz output power 1,5kW Cutting range Cutting height max. 90°270mm Cutting width max. with stop 370mm Cutting width max. without fence 410mm Saw band Saw band speed(s) 900 / 450m/min Flywheel diameter 430mm Saw band length 3345mm Saw band guide 3-roller precision guide top and bottom SCOPE OF DELIVERY: Angle stop ±60° Laser device for cutting line marking 1 x saw band wood 3345 x 6 x 0,65 mm; 6 tooth 1 x saw blade wood 3345 x 16 x 0,5 mm; 4 tooth 1 x saw band wood 3345 x 25 x 0,5 mm; 4 tooth
