Used Dmtg Cn Lathe for sale (6,860)

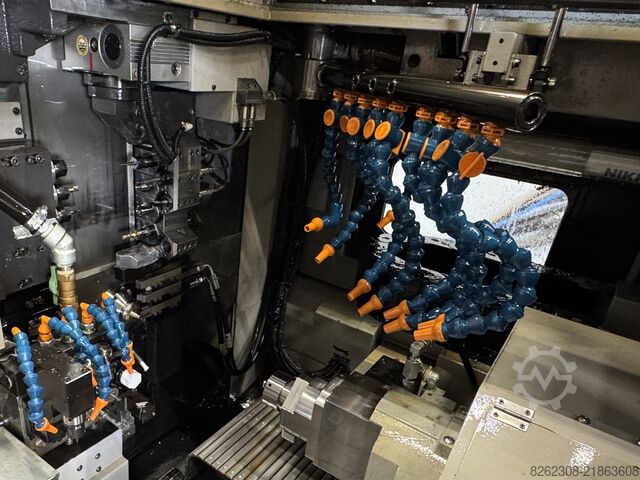

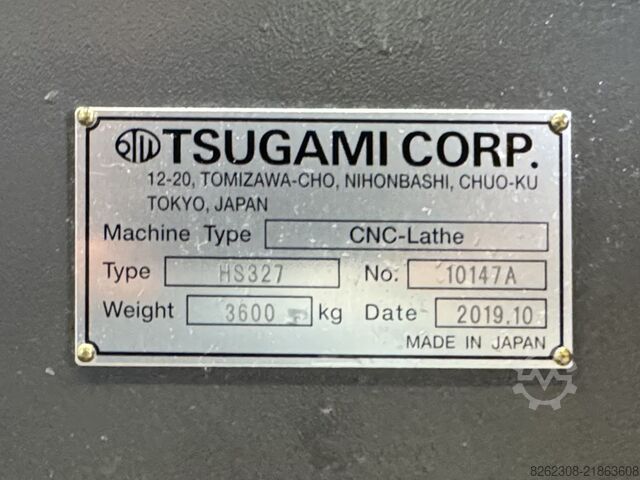

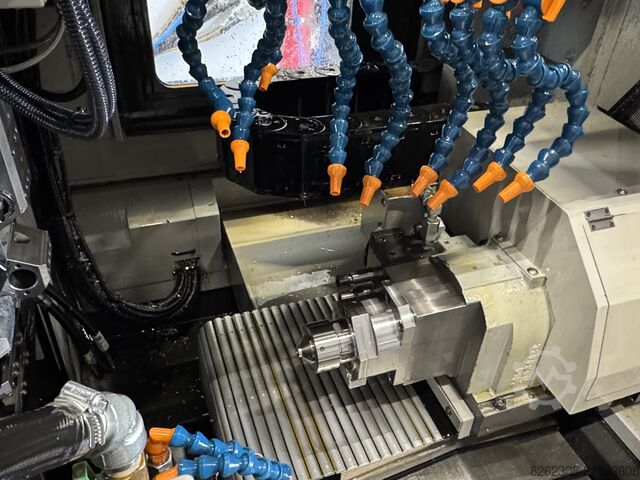

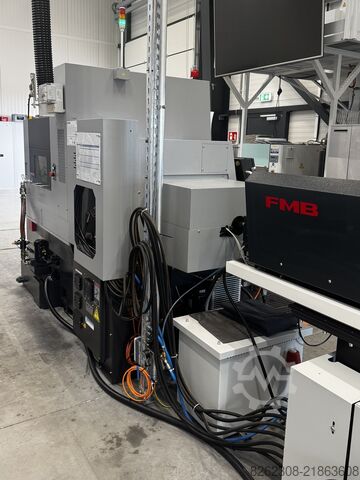

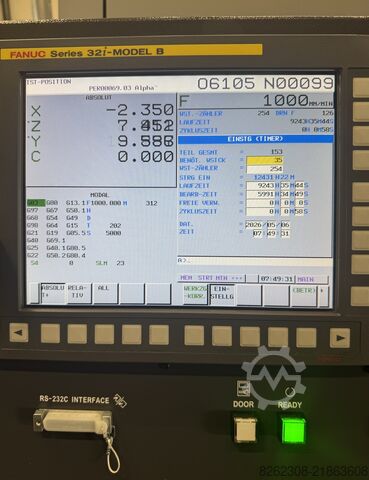

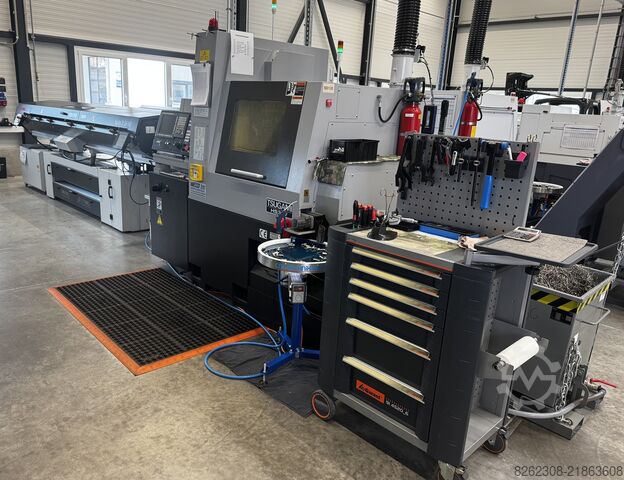

Condition: excellent (used), Year of construction: 2019, operating hours: 9,243 h, functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 200 rpm, overall weight: 3,600 kg, bar passage: 32 mm, We are offering the following used Tsugami HS327: Machine Type: CNC Lathe Model: HS327 Serial Number: 10147A Weight: 3600 kg Year of manufacture: 10/2019 Commissioning: 07/2020 Operating hours: 9,243 (as of 06.05.2026) Machining time: 5,991 (as of 06.05.2026) Equipment: - Fully programmable B-axis - Total of 9 axes - Control: FANUC System 32i-B - Bar feeder: FMB turbo 3-36 HD / SFB-310 ECO (with high-pressure unit) - Fire extinguishing system: Kraft & Bauer FB 703 - Chip conveyor: Hakusan EKC 2052HP Special accessories: - Sub-spindle flushing including pneumatic ejector - B-axis swivel angle 135 degrees – fully programmable - High-pressure pump 16 bar including dual cartridge filter - 2 deep-hole drilling tools beside the sub-spindle - 8 driven tools on the B-axis tool carrier - 4 driven tools on the rear side - 1 driven angle head 90 degrees for the rear side - 4 fixed tool spindles on the rear side The machine is in excellent condition, has always been run with oil, and will be available from July 2026. Codey Nig Eepfx Akcerb If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 2010, DMG MORI SEIKI year 2010 3 axis machine Type: DuraTurn 310 eco control: MSX 853 MAPPS IV Credpfx Aoqiz Tiskcjb C axis live tools turning diameter 228 mm turning lenght 393 mm turret sauter VDI30 tailstock tool probe chuck kitagawa 210mm spindle bar capacity 51mm weight machine 3500kg equipment;chip conveyor with coolant tank and pumps 3 live tool holder WTO 4 normal holder vdi30 books machine

Condition: good (used), Year of construction: 2007, turning diameter 1600 mm control Sinumerik 840D workpiece dia. 1400 mm boring diameter 100-500 mm weight of the machine ca. 35 t Crodpswzmqrofx Akcsb dimensions of the machine ca. 5,60x3,20x4,00 m

Condition: used, Year of construction: 1994, turning diameter over bed 350 mm turning diameter over slide rest 310 mm turning length 700 mm total power requirement 4,6 kW weight of the machine ca. 1,0 t Dimensions (HxWxD) 2.200 x 1.300 x 1.175 mm --> Technical data Centre height: 175 mm --> Centre width: 800 mm --> Swing diameter over bed: 350 mm --> Swing diameter over support: 310 mm --> Gap length in front of the faceplate: 145 mm Crjdpfx Aowc Dzwekcsb --> Cross slide travel: 205 mm --> Top slide travel: 100 mm --> Tool cross-section: 20x20 mm --> Bed Width: 220 mm --> Height: 300 mm --> Headstock Spindle bore: 46 mm --> Spindle nose: DIN 55027-5 --> Spindle inner taper: 1:20 --> Tool holder: MK-3 --> Spindle speeds: 18 --> Speed range: 25 - 2000 rpm --> Tailstock Quill diameter: 50 mm --> Quill inner taper: MK-3 --> Quill travel: 140 mm --> Lateral adjustment: 10 mm --> Feed range Number of feeds: 256 --> Longitudinal feeds (128): 0.042 - 0.929 mm Rev --> Cross feeds (128): 0.015 - 0.338 mm Rev 3 - jaw chuck Multifix steel holder size B, 1 x inserts 2 x travelling steady rest, Operating instructions

Condition: used, Year of construction: 1989, turning diameter over bed 300 mm turning diameter over slide rest 150 mm Csdpfxjrdwfze Akcerb turning length 800 mm spindle bore 36 mm turning speed range 42 - 2000 U/min feeds 0,011 - 0,91 mm/U tailstock quill taper MT 3 total power requirement 2,2 kW weight of the machine ca. 0,75 t dimensions of the machine ca. 1,7 x 0,8 x 2,0 m Machine had been active in the school centre very little used!

Condition: good (used), Year of construction: 1989, functionality: fully functional, Mazatrol T32 control, turret, tailstock, extensive accessories Codpsy H Iz Nsfx Akcsrb

Condition: refurbished (used), Product information "Leadscrew and feedscrew lathe Kern D 20 A" Leadscrew and feedscrew lathe from Kern Type / Model: D 20 A Condition: Overhauled Technical data: Centre height: 215 mm Centre distance: 600 mm Spindle bore: 50 mm Bed width: 300 mm Spindle speed (12): 31.5 - 1400 rpm Cjdsy H Iqwjpfx Akcsrb Motor power: 4 kW Quill stroke: 150 mm Weight: approx. 1500 kg Dimensions (W x D x H): approx. 2180 x 1180 x 1560 mm Equipment: - 3-axis digital readout - Emergency stop push button - Multifix quick-change toolpost system - Machine light - Coolant system - Live centre

Condition: good (used), Year of construction: 2008, For sale: 1 unit Scherer VDZ 80 DS with the following technical specifications: Swing diameter: 120 mm Z-axis (vertical): 265 mm X-axis (horizontal): 280 mm Front bearing diameter: 85 mm Rear bearing diameter: 75 mm 2 x A4 spindle Spindle drive unit rated power: 16.8 kW Rated torque: 100 Nm Speed: 1,000 – 7,000 rpm Travel speed Z-axis: max. 30 m/min Travel speed X-axis: max. 30 m/min Dimensions: 2.44 x 2.3 x 1.42 m (L x H x W) Weight: 9,000 kg Complete documentation available. Note: The system will likely require some reprogramming, as it was previously integrated into a complete processing line. However, a stand-alone program is available. Transportation and loading can be organized Europe-wide at extra cost upon request. Prices are subject to VAT. Csdpfoy H Iglsx Akcsrb Inspection possible by appointment. Please contact us; our team will be happy to assist you. Machinery Purchase / Sales PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINERY, MACHINE TOOLS, AND MORE. Are you looking for a high-quality yet affordable machine for your production? Or do you wish to sell your machine? For further information or contact options, please reach us via the contact form.

Condition: good (used), Year of construction: 2004, For sale are 2 units of Scherer VDZ 80 DS with the following technical specifications: Swing diameter: 120 mm Z axis (vertical): 265 mm X axis (horizontal): 280 mm Front bearing diameter: 85 mm Rear bearing diameter: 75 mm 2 x A4 spindle Spindle drive rated power: 16.8 kW Rated torque: 100 Nm Speed range: 1000 - 7000 rpm Traverse speed Z axis: max. 30 m/min Traverse speed X axis: max. 30 m/min Dimensions: 2.44 x 2.3 x 1.42 m (L x H x W) Weight: 9000 kg Complete documentation available. Attention! The system will likely need some reprogramming as it was part of a complete production line. However, an individual program is available. Cedpfsy H Ifujx Akcerb On request, transport and loading can be organized throughout Europe for an additional charge. Prices are subject to VAT. Inspection possible by appointment. Please contact us; our team looks forward to assisting you. Machinery Purchase / Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES, MACHINE TOOLS, AND MORE. Are you looking for a high-quality yet affordable machine for your production? Or do you want to sell yours? For more information or contact options, please reach us via the contact form.

Condition: used, Hardinge HLV-H High Speed Super Precision Tool Room Lathe Max’ Distance Between Centres 18” Max’ Swing over Bed 11” Max’ Swing Over Carriage 9” Max’ Swing over Cross Slide 6” Spindle Capacity: Though Spindle - 1 1/4” 5C Round Collets - 1 1/16” 5C Hex Collets - 7/8 5C Square Collets - 3/4” With Step Chucks – 1 1/16” to 6” With Jaw Chuck (Through Spindle) - 1 5/32” With Expanding Collets 3” Variable Spindle Speeds - 125 to 3000 rev/min Tailstock M/T 2 3 Phase Electrics Net Weight (approx.) 750Kgs Supplied with: 2 Axis Digital Readout 4 Jaw Chuck Csdpfx Aksy Nfqmecjrb Faceplate 3 off Multifix Tool Holders Set of Misc’ 5C Collets For Sale Jet Machinery Ltd Jet Machinery Stock No: #79017 Machine Serial Number: HLV-H14793T Cost: £8,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: new, Year of construction: 2024, functionality: fully functional, NEW MACHINE! CNC SCM Startech CN PLUS ADDITIONAL EQUIPMENT on machine: - automatic lubrication - side suports for long workpieces - Aditional USB key for ''Maestro CNC'' software DRILLING UNIT TECH. DATA: - 8x vertical drilling spindles - 6x horizontal drilling spindles (2+2 on ''X'' and 1+1 on ''Y'') - drilling speed 4200 min-1 - sawing unit with 125 mm diameter Crodpfxjip Dh Io Akcob MOULDER TECH. DATA - Motor power: 5,5 KW - spindle speed: from 1000 - 18000 rpm OTHER DATA: - maks/min workpiece length: 3050 / 200 mm - maks/min width: 900 / 80 mm - maks/min thickness: 60 / 10 mm - movement speed: 40 m/min - exhaust outlet: 1x 150 / 1x 120 / 1x 80 mm

Condition: good (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 42L09420, Hankook Protec 9NC x 5000 CNC Lathe with Fanuc 32i Control and large spindle bore. MACHINE CONSTRUCTION & FEATURES  Heavy One Piece Cast Iron Bed Construction  Heavy Duty Hardened & Ground Solid Slideways  2 Step manual Gear Change  Heavy Duty Tailstock MACHINE CAPACITIES Swing Over Bed Ø 950 mm Swing Over Carriage Ø 630 mm Chuck Size Dia. Ø 32” Distance Between Centres 5000 mm Load Capacity Between Centres 5000 Kgs SPINDLE Speed 2 -630 Rpm Spindle Bore Ø 254 mm Spindle Nose A2-15” Speed Range Manual 2 Step Centre taper MT #6 Carriage Toolpost Automatic V8 Tool Size 32 x 32 mm X Axis Travel 535 mm Z Axis Travel 4845 mm X Axis Rapid 4 M/min Z Axis Rapid 6 M/min TAILSTOCK Quill Diameter Ø 180mm Spindle Taper MT #6 Max Quill Travel 250 mm BED Width 630 mm Length 6715 mm MOTORS Spindle 30/37 Kw Feed X 1.8 Kw Z 4.2 Kw POWER SUPPLY Electrical Supply 415V, 3Ph, 50Hz DIMENSIONS & WEIGHT Length 7470 mm Width 2205 mm Height 1890 mm Crjdpfowcq Tmjx Akcob Weight 10280 Kgs STANDARD MACHINE FEATURES • Fanuc 32i-A CNC Controller • Centre MT #6 • 4 Jaw Independent chuck • Automatic Spindle Shifting • Built in Live Tailstock Spindle • Coolant System • 2 Speed Tailstock Spindle • Work Light • Main Drive Motor & Elect equipment • Centre Sleeve • Chuck Cover Full Rear Guard 5000 between Centres 4-Jaw Independent Chuck & Flange Φ32" (Bore Ø254mm) 4-Jaw Independent Chuck & Flange Φ32" (Bore Ø254mm) Steady Rest(Roller Jaw) Φ250mm - Φ450mm Steady Rest (Roller Jaw) Φ450mm - Φ650mm Live Centre MT #6 Automatic Index Turret Electric V8 in lieu of manual H-4 3 Off OD Tool Holders 3 Off Boring Tool Holders Φ63mm 2 Off Facing Tool Holders Boring Bar Device Ø 150mm (Bar Excluded) Chip Conveyor 5000 Mm Transformer CE Specification Spindle Motor Upgrade 30/37 Kw Fanuc Option A (as detailed below) 1st Spindle Orientation Dynamic Graphic Display Continuous Threading Custom Macro B Extended Part Program Edit Tape Memory 320M Inch/Metric Conversion Manual Guide i Playback Programmable Data Input Run Hours & Parts Counter Tool Offsets 32 Pairs Variable Lead Threading Graphic Function Spindle Positioning Program Restart External Data Input

Condition: used, HERBERT 9C-30 TURRET LATHE MAKE HERBERT, MADE IN ENGLAND MODEL 9C - 30 MAX DIAMETER OVER BED 762.0 mm CHUCK TYPE 4 JAW CHUCK SIZE 630.0 mm MAX DIAMETER OVER CROSS SLIDE 535.0 mm MAX DIAMETER IN FRONT OF CROSS SLIDE 737.0 mm LENGTH BETWEEN CHUCK FACE -TURRET FACE 1505.0 mm TRAVEL OF TURRET 1066.0 mm Csdpfx Aksy H Hc Ejcorb DIAMETER OF HOLE THROUGH SPINDLE 125.0 mm SPINDLE SPEED 7 – 600 RPM PLUS OPERATOR SAFETY DOOR GOOD RANGE OF ACCESSORIES

Condition: new, Year of construction: 2024, NEW, unused machine!!! DN SOLUTIONS PUMA 5100LMB Year of manufacture: 2024 C-axis with driven tools Control: FANUC OiF touch Chuck: 21 inches (535 mm) Spindle bore: 166 mm Travels: Crjdey H D Ufjpfx Akceb X – 362 mm Z – 2,155 mm Maximum turning length: 2,002 mm Maximum turning diameter: 650 mm 12-position head BMT 75 Knoll chip conveyor

Condition: used, Year of construction: 1983, functionality: fully functional, spindle bore: 95 mm, turning diameter: 800 mm, turning diameter over bed slide: 800 mm, turning diameter over top slide: 530 mm, turning length: 10,000 mm, For sale: PORĘBA TPK-80/10M universal lathe, year of manufacture 1983, in very good technical condition. Availability: in stock, under power, available for inspection and testing at any time. Standard equipment: Tailstock Coolant pump Tool holder Additional equipment: 1 x Traveling steady 1 x Steady rest 40–400 mm 1 x Steady rest 400–600 mm 1 x 3-jaw self-centering chuck Ø 500 mm Technical specifications: Distance between centers / turning length: 10,000 mm Swing over bed: 800 mm Credpfxoyxgm Ue Akcsb Swing over carriage: 530 mm Swing in gap: 1080 mm Spindle bore: 95 mm Max. workpiece weight: between centers: 6,000 kg between centers + 1 steady rest: 7,500 kg between centers + 2 steady rests: 9,000 kg Number of spindle speeds: 21 Speed range: 8 – 800 rpm Number of feeds: 80 Feed range: Longitudinal: 0.1 – 12.8 mm/rev Cross: 0.05 – 6.4 mm/rev Main motor power: 16/22 kW (1st / 2nd gear) Dimensions: Total length: 12,500 mm Width: 1,800 mm Height: 1,800 mm Weight: 11,200 kg

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 13 [mm] - Max. machining length : 190 [mm] Crodpfx Aksyacvaocjb - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 13 [mm] - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] GUIDE BUSH HOLDER 2 - Number of positions : 8 - Number of motorized positions : 2 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2170 X 1140 [mm] - Machine height : 1890 [mm] - Machine weight : 2800 [kg] MACHINE HOURS - Number of hours under power : 44456 [h] EQUIPMENT - CNC : Fanuc 31i-B - 3 colors status lamp - Rotating tool motor on : S11,S21,S51 - Rotating guide bush - Parts catcher - Ejection of workpiece - Parts conveying strip - Chips conveyor - Coolant tank : KNOLL * with high-pressure pump * with paper filtering unit - Bar loader : FMB Minimag20/3200 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 13 [mm] - Max. machining length : 190 [mm] - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 13 [mm] Cedpfx Aksyacu Necsrb - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] GUIDE BUSH HOLDER 2 - Number of positions : 8 - Number of motorized positions : 2 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2170 X 1140 [mm] - Machine height : 1890 [mm] - Machine weight : 2800 [kg] MACHINE HOURS - Number of hours under power : 44449 [h] EQUIPMENT - CNC : Fanuc 31i-B - 3 colors status lamp - Rotating tool motor on : S11,S21,S51 - Rotating guide bush - Parts catcher - Ejection of workpiece - Parts conveying strip - Chips conveyor - Coolant tank : KNOLL * with high-pressure pump * with paper filtering unit - Bar loader : FMB Minimag20/3200 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 13 [mm] - Max. machining length : 190 [mm] - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 13 [mm] - Spindle speeds : 15000 [rpm] - Spindle power : 4 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] GUIDE BUSH HOLDER 2 - Number of positions : 8 - Number of motorized positions : 2 - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] END ATTACHMENT Cedpfx Ajyacu Askcerb - Number of positions : 4 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2170 X 1140 [mm] - Machine height : 1890 [mm] - Machine weight : 2800 [kg] MACHINE HOURS - Number of hours under power : 48838 [h] EQUIPMENT - CNC : Fanuc 31i-B - 3 colors status lamp - Rotating tool motor on : S11,S21,S51 - Rotating guide bush - Parts catcher - Ejection of workpiece - Parts conveying strip - Chips conveyor - Coolant tank : KNOLL * with high-pressure pump * with paper filtering unit - Bar loader : FMB Minimag20/3200 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: refurbished (used), Kern Lead Screw and Feed Shaft Lathe Type / Model: D 20 A Condition: Refurbished Technical Data Centre height: 215 mm Centre distance: 600 mm Spindle bore: 50 mm Bed width: 300 mm Speed range (24): 31.5 - 1400 rpm Crsdpfx Aksy H Eckscjb Motor power: 4 kW Quill stroke: 150 mm Weight: approx. 1500 kg Dimensions (W x D x H): approx. 2180 x 1180 x 1560 mm Equipment: - 3-axis digital readout - Emergency stop button - Quick-change tool post, Multifix system - Machine light - Coolant system - Rotating centre

Condition: used, Year of construction: 2005, turning diameter 5-42 mm turning length 3200 mm control Traub TX8i x-axis 50 mm Csdpfx Akjy Nd U Djcerb z-axis 50 mm weight of the machine ca. 4000 kg

Condition: excellent (used), Year of construction: 1991, Technical Specifications HBX 360 Distance between centers (mm): 750 Center height (mm): 180 Maximum turning diameter over bed (mm): 360 Maximum turning diameter over cross slide (mm): 180 Spindle bore (mm): 37 Maximum cross slide travel (mm): 180 Cross slide width (mm): 160 Tailstock quill travel (mm): 150 Tailstock quill diameter (mm): 46 Bed width (mm): 335 Compound slide travel (mm): 110 Compound slide width (mm): 110 Crjdpfx Asy H Dxwskcjb Type of quick-change toolpost Spindle taper type Tailstock Morse taper: MT5 Spindle speed (rpm): 50 to 3000 Spindle speed variator: Yes (hydraulic) Spindle motor power (kW): 4.5 Cross feed range (m/min): 0.0125 to 5.6 Rapid longitudinal feed range (m/min): 56 to 112 Thread cutting: Yes Metric threading (number) (mm); Whitworth thread range (tpi) Brake motor Electrical supply: 380V three phase Overall dimensions (mm): 2000 x 1000 x 1250 Weight (kg): [not specified] Chuck: Manual/Hydraulic 3-jaw Equipment: - 2-axis Heidenhain digital readout - Work light - 3-jaw manual chuck - Quick-change toolpost - Foot brake

Condition: used, functionality: fully functional, We offer this used Heidenreich & Harbeck 21 R0 lead and feed screw lathe, year of manufacture unknown. The lathe is fully functional and has already been retrofitted with a digital axis display. Crodoy Nd Hmspfx Akceb If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 2001, Universal lead and feed screw lathe Manufacturer: GDW Model: LZ 360 S Year of manufacture: 2001 - workshop tested Machine no.: 1104 071 Geometric acceptance with test protocol Centre height: 175 mm Centre distance: 800 mm Accessories: - 3-axis digital display FAGOR NVP 300 TS-RS with switchable constant cutting speed - Retrofit kit for converting tailstock from crank tailstock to lever drilling tailstock - Chuck guard with electrical interlock - Braked drive motor - Emergency stop (dual, left and right) - Quick-change tool post, base body size B Credjy H Di Nopfx Akcob - Bed stop - Rear chip guard - Removable chip tray - Coolant unit - 2 fixed centers MK 3/60° - Safety driver plate - Operation keys - CE declaration of conformity - CE documentation (operation manual) Used, sold as-is without warranty The machine's technical specification corresponds to the manufacturing year.

Condition: excellent (used), Swing over bed 330 mm Cjdpfx Aksy H Dkmjcjrb Distance between centers 650 mm Spindle speeds 30-5000 rpm Spindle taper ASA A2-5 Control: FANUC 18i-T Misc. accessories MARCELS MASCHINEN CH

Condition: used, Year of construction: 2004, BIGLIA B 470 YSM LATHE LATHE WITH Y AXIS SUB-SPINDLE 2 MOTORIZED TURRETS FANUC 18i-TB CNC CONTROL CAPACITY: Max working diameter from bar (main spindle/sub-spindle): 68/45 mm Max working diameter (chucking, main spindle/sub-spindle): 200/160 mm Max working length (main spindle/sub-spindle): 300/200 mm Max swing diameter (main spindle/sub-spindle): 200/160 mm Bar passage (main spindle): 65 mm SPINDLE: Main spindle/sub-spindle speed range: 100–4000 / 100–4000 rpm Spindle nose (main spindle/sub-spindle): ASA 6'' / ASA 5'' Spindle bore (main spindle/sub-spindle): 80/56 mm Spindle motor power (50% duty cycle) (main spindle/sub-spindle): 22-26 / 5.7-7.5 kW UPPER/LOWER TURRET: Number of driven tool positions: 12 Driven tool speed range: 100–3000 rpm Drive motor power: 1.1–3.7 kW (25% duty cycle) AXES: X-axis travel (main spindle/sub-spindle): 160/158 mm Z-axis travel (main spindle/sub-spindle): 390/240 mm Credpfxsy Ndx Ae Akcsb Y-axis travel (main spindle): 100 mm (40-60) B-axis travel (sub-spindle): 420 mm C AXIS (CONTROLLED): Minimum programmable value: 0.001° DIMENSIONS: Overall dimensions with chip conveyor: 4107 x 2128 x 2204h mm EQUIPPED WITH: – Chip conveyor
