Used Takisawa Cnc Double Spindle Lathe for sale (28,725)

Condition: good (used), Year of construction: 1987, turning diameter over cross slide: 810 mm, spindle bore: 130 mm, turning diameter: 1,140 mm, turning length: 7,500 mm, quill stroke: 300 mm, total length: 7,500 mm, total width: 2,300 mm, total height: 1,650 mm, bed width: 600 mm, Please note: not original pictures its only 3000 length not 5000 mm   3 Guide way construction 2 Axis HeidenHain Digital readout Feed in 3 directions all tool post slide Central lubrication   Work load flying in chuck 2500 kg Work load NOT supported 8500 Kg Work load supported 10000 kg   Optional 4 chuck approx. 1200 mm Optional 4 chuck approx. 1500 mm Optional package with 3 steady rest fixed model from  .... to ....  Turning length: 5000 / 7500mm Turning diameter bed Ø: 1140mm Turning diameter slide: 810mm Klsdev S Dp Iepfx Abfeu Turning diameter pit Ø: 1500mm Pit length: 2500mm Spindle bore: 130mm Bed width: 600mm Quill: 130Ø Quill stroke: 300mm Spindle mount: 6Mk Power: 25kW Speed: 9 - 900rpm Length: 7500mm Width: 2300mm Height: 1650mm Weight: 12000kg

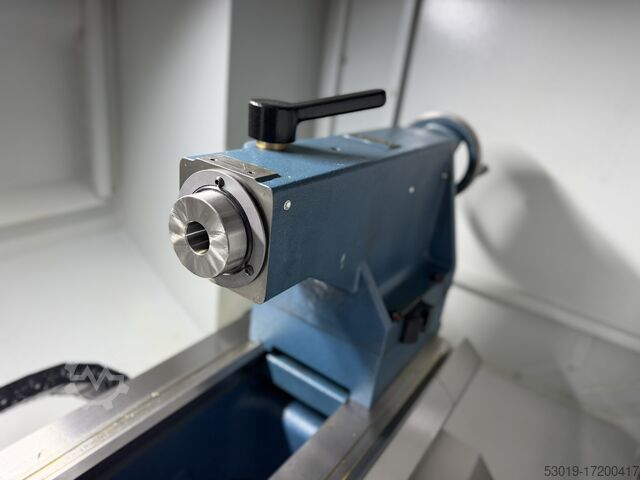

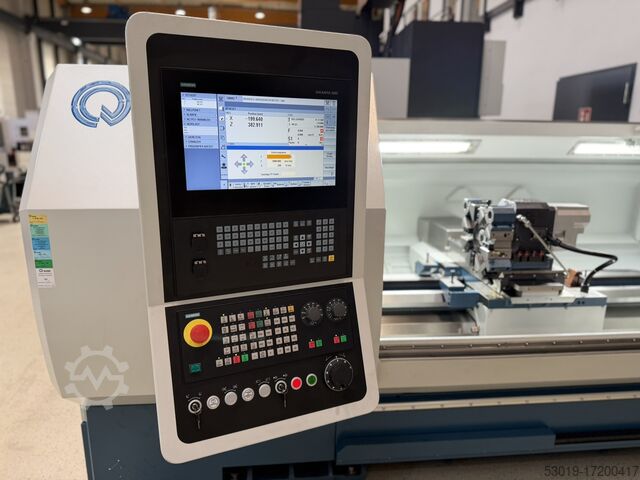

Condition: new, Year of construction: 2024, functionality: fully functional, Drive spindle Speed: 3,000 rpm Power: 11 kW Torque: 320 Nm Chuck diameter: 260 mm Kledjup Slbopfx Abfju Spindle bore: 65 mm Spindle nose: A2-6" Working area Center distance: 1,500 mm Center height: 290 mm Diameter over bed: 570 mm Diameter over slide: 510 mm Tool system Turret: PARAT 4-station turret head RD 3 Tailstock Technology: Manual Center: MK-4 (flying) Equipment Chip management: Chip tray Coolant supply: Coolant pump 7 bar

Condition: ready for operation (used), Manufacturer: Ikegai - Japan Type: TNC 75 Year of manufacture: 1990 Control system: Fanuc 15-T Technical data: - Center height above bed: 750 mm - Center height above floor level: 1380 mm - Swing diameter above bed: 1500 mm - Swing diameter above tool slide: 1200 mm - Max. distance between centers: 7000 mm - Bed (width x height): 1500 x 630 mm - Bed, full length: 10,200 mm - Spindle nose: JIS A2 No. 20 - Taper bore of the spindle: Ø 100, taper 1:10 - Diameter of front spindle bearing: 280 mm - Diameter of rear spindle bearing: 240 mm - Speed: 2.5 - 250 min⁻¹, infinitely variable, 2 ranges (H: 10 - 250, L: 2.5 - 60 min⁻¹) - Rapid traverse X-axis: 2000 mm/min - Rapid traverse Z-axis: 4000 mm/min - Rapid traverse tailstock: 2000 mm/min - Travel X-axis: 560 mm - Travel Z-axis: Distance between centers + 200 mm - Tailstock: integrated, rotating center with its own drive and radial force measuring device - Tailstock quill diameter: 260 mm - Taper bore tailstock: MK No. 7 - Tailstock quill travel: 350 mm Condition: Good, functional condition. Klodpfx Abezdrm Ijfou

Condition: good (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 2950 mm swing diameter 3200 mm turning height 3500 mm table load 20 t feed range 3000 mm/min main drive motor 70 kW milling drive 16,1 kW Additional information * CNC-control FAGOR 8070 * C-axis with 360,000 positions * Milling head Inspection under power in the factory possible. Klsdpezdrc Asfx Abfeu Machine location is Spain.

Condition: new, Year of construction: 2026, functionality: fully functional, power: 4.5 kW (6.12 HP), table width: 1,300 mm, table length: 2,500 mm, overall weight: 790 kg, number of axes: 3, Equipment: CE marking, documentation/manual, This is a CNC router that has 4 spindles operating simultaneously and can change automatically! That increases the effectiveness of the production, making it 4 times faster. That CNC milling machine is perfect for big production of facades, doors, windows, casing moldings, etc. Wattsan M1 1325 planetary gears allow you to cut hardwoods and soft metals easily. Also, a vacuum table can be installed so the fixation is as steady as stone. With a Wattsan milling machine, you may work with metal, hard wood, plastic, foam rubber, aluminum, and plexiglass. You can give our managers a call for additional details! Wattsan M1 1325 S4 machine characteristics: Working area: 1300x2500 mm Spindle: 6 kW Machine size: 2000 x 3040 x 1780 mm Weight: 1000 kg Virmer provides not only prime machines but also service and delivery. Our engineers and managers are ready to answer all of your questions and provide video assistance if required. Also, owners of Wattsan equipment get lifetime online support. Virmer is located in the Netherlands and works all over Europe. Virmer is Wattsan's official supplier. We provide not only laser engravers, but also metal cutters, welders, markers and cleaning machines. Kljdpfx Aer D Ntfjbfsu Wattsan is a Chinese manufacturer, which has been creating laser equipment for almost 15 years and keeps evolving with the help of its clients. Thanks to feedback Wattsan made over 50 modernizations, which made machines more reliable, precise and powerful so you could upgrade your business up to the new level. YOU CAN WRITE OR CALL US! WE WILL SELECT THE RIGHT MACHINE FOR YOUR TASK On our company you can find a wide range of machines and components: Laser Metal Cutting Machine; Laser Metal Machine, Fiber Metal Laser, Fiber Metal Laser Engraver; CNC laser machine for metal; Laser machine for wood; CNC laser machine; Laser engraving machine; Laser engraver; Laser cutting machine for plywood; Laser engraver; Laser cutting machine for metal; CNC milling machine; laser marker. Lenses; Chillers; Cooling system for machine; Chiller S&A ; IPG laser, MAX photonics, Raycus; Compressor; Rotary device; Mirror for laser machine.

Condition: excellent (used), Year of construction: 2018, - Siemens Sinumerik 828D control system - Accessories: Collet chuck Working area Swinging diameter over bed ø250 mm Swinging diameter over cross slide ø85 mm Maximum turning diameter ø85 mm Maximum turning length 225 mm Maximum bar capacity ø25.5 mm Distance between centers (spindle nose – tailstock center) 405 mm Slide travel range Slide travel X 100 mm Slide travel Z 300 mm Main spindle Spindle mounting (centering flange) ø70 h5 Spindle outer diameter at front bearing ø50 mm Main spindle – clamping system Hollow cylinder chuck (pneumatic) with draw tube with max. capacity ø25.5 mm Max. chuck size ø100 mm Main spindle drive AC motor, power (100%/40% ED) with integrated holding brake for driven tools 3.7 / 5.5 kW Speed range (continuously adjustable) 60-6300 rpm Klodpfozdp U Aex Abfou Max. torque 35 Nm Dimensions Height of turning axis above floor 1130 mm Overall height 1820 mm Footprint (width x depth, without options) 1700 x 1270 mm Weight 1400 kg

Condition: good (used), Year of construction: 1979, Schütte SF51 6-spindle automatic bar lathe Suitable for complex turning operations in metalworking The Schütte SF 51 is a proven, cam-controlled 6-spindle automatic bar lathe with a 51 mm spindle bore, ideal for the efficient serial production of turned parts. These robust machines feature an electronic cam control system that offers high process stability and flexibility for turning, drilling, and threading operations. The machine is valued for its stability and flexibility in manufacturing demanding workpieces. Technical status: The machine has been regularly modernized and is up to current technical standards. Maintenance & Servicing: Professional maintenance performed strictly according to schedule by specialists. Manufacturer: Schütte Type: SF 51 Kjdpfjyhpvpjx Abfslu Cam-controlled multi-spindle automatic bar lathe Number of spindles: 6 main spindles Control system: Conventional Spindle bore: 51 mm Max. feed: 125 mm Max. turning length: 102 mm Max. drilling depth: 102 mm Threading unit Chip conveyor 6-position bar loader Voltage: 400 V The orange transport rack for long stock is included in the offer. The scissor lift table is not part of this auction but can be purchased from us separately. Gruse ELS 2-13-9 hydraulic scissor lift table "Everything from a single source: We would be happy to offer you suitable bank financing for your project." komplett-konzept.leasingo.de You can find more items—new and used—in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 2006, GILDEMEISTER NEF 600 CNC lathe Year of manufacture: 2006 Control system: SIEMENS 840D Powerline with ShopTurn Equipment: 3-jaw chuck RÖHM 250 mm 4-jaw chuck RÖHM 250 mm Turret, 8-position hydraulic tailstock Included in the scope of delivery: VDI tool holders, equipped with turning tools and more Operating manual/documentation Technical data, transport & plans – see PDF. All technical data, illustrations and content are non-binding and without guarantee. Subject to change, errors and omissions excepted. All other accessories shown in the pictures and video are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories that are explicitly listed here, in the order confirmation and invoice. FCA (Free on Carrier, Truck) D-32457 Porta Westfalica packaging only Delivery time: immediately Subject to prior sale / Payment due immediately upon completion of purchase. Klodpfx Aozfzf Njbfeu

Condition: used, Year of construction: 1995, turning diameter 510 mm turning length 1000 mm control Mazatrol type Mazatrol T plus turning speeds 35-3500 U/min spindle passage 88 mm Tool changer 20 Pos. Spindle capacity 35 KW centre distance 1029 mm x-travel 450 mm z-travel 1029 mm weight of the machine ca. 7,5 t - Spindle nose: A2-8 - Axis C - Maximum feed: X = 12 m/min - Y = 10 m/min - Z = 18 m/min The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Klodpfxoyqu Hxs Abfou

Condition: new, Trainee VCD One of the best-selling and most popular conventional precision lathes impresses with sophisticated technology maximum accuracy long service life tried and tested ergonomics minimum space requirement and a wide range of accessories. Proven for decades in single part and small series production, in trade and industry, training and further education, tool and jig construction. Equipment: Center width 650 mm Center height 160 mm Automatic handwheel disengagement Lead and traction spindle cover Holding brake Toolmaking accuracy according to DIN 8605 Infinitely variable speed control with maintenance-free three-phase asynchronous motor Speed-controlled frequency converter with actual value feedback Speed can be optimized precisely and continuously during machining Best cutting conditions for the finest surfaces in the shortest possible time The numerical position display (optional) offers a high level of operating convenience for working at a constant cutting speed. cutting speed, freely selectable speed limitation, oriented main spindle stop LED machine light Technical data WORKING AREA Center height 160 mm Swing diameter over bed 320 mm Swing diameter over facing slide 190 mm Center width 650 mm TURNING SPINDLE Spindle head DIN 55027/DIN ISO 702-3 size 5 Spindle bore 43 mm Spindle diameter in front bearing 70 mm MAIN DRIVE Drive power 60 %/100 % ED - / 6 kW Speed range 30-4,000 (5,000) min-1 Number of speeds infinitely variable FEED RANGE Quantity 24 Longitudinal 0.02 - 0.63 mm/rev Plan 0.006 - 0.2 mm/rev THREAD CUTTING RANGE Metric thread 0.25 - 8* mm Kjdpfx Abjtznarofslu REITSTOCK Quill diameter 40 mm Quill stroke 85 mm Internal taper DIN 228 MK 3 Equipped with: -Quick-change tool holder Multi-Suiss size B -18 liter coolant unit incl. coolant pump The machine is located in our showroom in 71334 Waiblingen-Beinstein and is available immediately. Please contact us regarding equipment.

Condition: not inspected (used), Faceplate: 2500 mm Kodezdk A Uopfx Abfolu Swinging diameter: 3200 mm Max. turning height under tool: 2500 mm Max. workpiece height under support: 2780 mm Max. workpiece weight: 25 tons Cross slide: 2000 mm Ram travel, vertical: 1600 mm Ram travel, horizontal: 1800 mm Ram cross-section: 250 x 300 mm Smallest distance between two rams: 1150 mm Faceplate drive: 71 kW Faceplate speed: 125 rpm Milling drive motor: 18 kW Milling drive speed: 1600 rpm Milling drive torque: 710 Nm

Condition: used, Year of construction: 2004, turning diameter 250 mm turning length 100 mm control SIEMENS 840 D total power requirement 35 kW weight of the machine ca. 7500 kg dimensions of the machine ca. m E M A G (Germany) Vertical CNC Controlled Hard Turning and Grinding machine with tool turret and workpiece handling System Model VSC 250 DS Year 2004 # M7 28.69324 _____ Turning Ø, max. 250 mm Turning length internal / external 100 mm Workpiece length min./max. 29 – 100 mm 6-positon tool turret Ø / swing-Ø 480/790 mm Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm Feed rate / Quick feed X/Z 45/30 m/min. Feed force X/Z 5,5/11 kN Spindle speed 4.300 / 6.000 rpm Spindle drive 28 kW Total electrical load, approx. 35 kW - 400 V - 50 Hz Kodpfxjt Hxa Te Abfjlu Weight, approx. 7,500 kg Accessories / Special Features: * CNC – Continuous Path Control SIEMENS Model 840 D, with colour monitor, graphics, menu-supervised dialogue programming, and all the usual options, cycles and subprograms, etc. * Hexagon Tool turret head with 6 tool positions (Ø 40 mm) without motorized tools posts, two positions T 3 u. T 6 equipped with grinding spindles with 42.000 rpm and with 18.000 rpm, using CBN discs resp. regular grinding tools * Workpiece handling device with WP transportation frames and circulation system and pick-up and unloading of finished parts directly through the motor spindle which is equipped with a hydraulic 3 jaws chuck make SMW Autobloc with membrane clamping and clamping control system. * MARPOSS MIDA Measuring Probe for measuring blank parts a. the finished parts * NORGREN air measuring system, hydraulic weight compensation of spindle, * Main elements of machine are temperature stabilized by a coolant system made by HYFRA * Recooler for the grinding coolant sitting on a large Coolant device consisting of SEITZ Paper Band filter and a mobile Chipconveyor, Magnetic separator, Centrallubrication, etc. Vertical CNC lathes offer a thermo-resistant construction (chips do not fall onto the machine bed),fast workpiece change times (pick-up system through the main spindle) and a ridged tool arrangement,which also allows unrelated machining work, like hard turning or grinding process on the same machine. Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1995, turning diameter 300 mm turning length 710 mm control SIEMENS SINUMERIC 840 total power requirement 40 kW weight of the machine ca. 6000 kg dimensions of the machine ca. m I N D E X (Germany) CNC Controlled Slant-Bed Chuck Lathe with Turret and Tailstock and INDEX CNC Control C 200 – 4 (SIEMENS) Model G 300 Year 1995 S/N 5000 65 _____ Turning - Ø, with chuck, max. 300 mm Spindle bore 90 mm Max. Workpiece Swing dia. 400 / 590 mm Turning length / travel of turning slide, (X-Achse) max. 710 mm Turret head slide cross movement (Z-Axis) max. 140 mm Turret with 12 tool holder positions DIN 30 mm Feed range of turret slide / Quickfeed 0,1 - 20 m/Min. Feed Force of X/Z-Axis 8 – 13 kN Steplessly adjustable Spindle speeds up to 5.000 rpm Torque Forceon main spindle approx. 275 Nm Spindle drive 28 kW Total electrical load appr. 40 kW - 400 V - 50 Hz Weight 6,000 kg Accessories / Special Features: * INDEX CNC Control Model C 200-4 resp. SIEMENS 840 C for 3 Axes X/Z Axis and Main spindle as C-Axis (Spindle Orientation) Control Panel mounted swivable on front left side of machine. * Spindle orientation in 2,5° degree steps and Spindle indexing device * Mounted hydraulic 3 Jaws Chuck make FORKHARDT Model HS 250 with many Sets of jaws. Speed up to 5.000 rpm * INDEX- Turret with 12 positions for DIN 30 tool holders, prepared for driven tools and motorized by the indexing motor, Choice of approx. 40 pieces toolholders * Hydraulic Tailstock with stroke of 50 mm and with concentricity Kodpfx Ast Hw Suebfjlu correction device * KNOLL – Swarf Conveyor with Coolant Device and High Pressure Pump, Sliding door, Oilskimmer, etc. Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1998, turning diameter 200 mm turning length 400 mm control SIEMENS SINUMERIC 840 C total power requirement 40 kW weight of the machine ca. 6.500 kg Kodpst Hw Rkofx Abfslu dimensions of the machine ca. m

Condition: used, Year of construction: 1991, turning diameter 42 mm turning length 250 mm control total power requirement kW weight of the machine ca. t dimensions of the machine ca. m Klsdpot Hwz Aofx Abfju CNC-lathe with bar feed with Sameca bar feed

Condition: used, Year of construction: 1990, turning diameter 60 mm turning length 200 mm number of slides Kodpfx Aet Hw Atebfolu total power requirement 20 kW weight of the machine ca. t dimensions of the machine ca. m

Condition: used, Year of construction: 1994, turning diameter 1250 mm swing diameter 1160 mm turning height 800 mm faceplate diameter 1000 mm total power requirement 97 kW weight of the machine ca. 25000 t dimensions of the machine ca. m P I T T L E R (Germany) CNC Controlled Vertical Turning and Milling Centre With Tool Changer and Pallet Changer Model PV 1250 / 1-1 Year 1994 _____ Turning Ø max. 1,000 mm Swing Ø max. 1,160 mm Turning length 800 mm Ksdpfot Hwy Ssx Abfjlu X Axis - horizontal 1,300 mm Y Axis - vertical 800 mm Feed / quick feed 16,000 mm/min Main spindle speeds 10 - 1,000 rpm ! Main spindle speeds via separate C Axis 0.1 - 16 rpm Positioning accuracy of C Axis 360° + / - 5 " Tool holder ISO 50 Tool drive 22 kW Max. torque / spindle speed 315 Nm / 2,500 rpm Pallet size 630 x 630 mm Spindle drive 63 kW Total electrical load 97 kW - 400 V - 50 Hz Weight, approx. 25,000 kg Accessories / Special Features * CNC Contouring Control Model NUM 760 TX in 3 axes, with graphics, menu-guided dialogue programming, and all the usual options, cycles and sub-programs; with tool compensation, thread cutting cycles, constant speed programming, etc. * 2-axis CNC tool slide (1,300 x 800 mm) with driven tool holders, ISA 50 / 22 kW. * Tool changer with 16 tool holders, max. length 450 mm, max. weight 40 kg. * Pallet changing system, pallet size 630 x 630 mm, with setup station with indexing and drive of the pallet, and 2 separate pallet stations. * 3 pallets, 630 x 630 mm. * 3-jaw chuck, Ø 650 mm. * Face plate, Ø 900 mm. * Chip conveyor. * Band filter coolant equipment. * Completely covered working area, including safety fence for the pallet changing area. * Separate switch cabinet. * Operating manual. * Approx. 20 tool holders. * Various other accessories. High performance universal turning and milling centre for full range of machining (turning, boring, drilling, milling, and threading) with high speeds and high turning volume. Condition : Good to very good. Machine can soon be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest. We have a selection of modern lathes available. Please let us know your requirements

Condition: used, Year of construction: 1990, turning diameter 250 mm turning length 450 mm control TX8D bore 80 mm Kljdst Hwq Djpfx Abfeu spindle speed: 3150 U/min. CNC Lathe with Bar Feed and 3 Turrets Very large spindle bore, with bar loading device Please ask for further details.

Condition: used, Year of construction: 2012, Lathe fully functional. Kljdjy R Rdnjpfx Abfou

Condition: good (used), Year of construction: 1998, Center height 1700 mm Can be extended or shortend to matching height as they are 2 peices Central lubrication Each steady rest equipped with 3 point Driven / Morotized units Length:1800mm Width:1600mm Kljdpfx Aowrcxaebfou Height:2100mm Weight:1800kg

Condition: good (used), Year of construction: 2007, Traub TNX 65/42 Milling and Turning Center Mfd. 2007 Serial #7060107 Commissioned in 2010 TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors) 15 CNC axis’s (4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret 65 mm thru hole main and sub spindle (sub spindle has coolant flush) Foot pedal control for clamp/unclamp of spindle chucks Servo driven gantry receiver Hydraulic swivel w/ pneumatic finished part and bar remnant gripper Finished part conveyor belt RESY paper band coolant filter Kledsq Npqmepfx Abfsu Knoll Coolant tank with BKW refrigerated coolant temperature control 20 Bar High pressure and 8 Bar Low pressure coolant pumps Knoll chip conveyor FMB Turbo 5-55 magazine bar feeder (new in 2010) 2) Single stick turning tool holders 2) Double stick turning tool holders 1) Cut-off tool holder 1) Overdriven double radial live ER Collet tool holder 1) Overdriven radial live ER Collet tool holder 4) Radial live ER Collet tool holders 1) Radial live End Mill tool holder 1) Angle adjustable live ER Collet tool holder 2) Radial live Shell Mill tool holders 2) Axial live End Mill tool holders 6) Axial live ER Collet tool holders 43) Additional tool holders on separate list (see supplemental attachment) Hainbuch main spindle collet chuck Rohm sub spindle 2 jaw chuck 2 Spare sets of spare Z-axis ball screws and bearing packs.

Condition: used, Year of construction: 2017, INDEX C200 Mfd. 2017 Tooling in photos to be divided between 3 C200 machines available. Power-on hours: ~49,960 h Hydraulic hours: ~48,700 h Main spindle hours: ~24,800 h Counter spindle hours: ~24,000 h Stroke mm 20 Clamping pressure min.Max. bar 8/80 Piston Area pressure cm^2 57 Area piston thrust cm^2 57 pressure Force Max. CN 45,6 Tensile force Max. CN 45,6 10350989 1 INDEX C200 CNC-turning machine with 3 revolvers with Siemens-Based Index C200 control system SINUMERIK 840D SolutionLine - Rigid cast iron bed, perpendicular angle to the ground, excellent gradient chips - The kinematics of tool head movements guarantees maximum damping, reducing tool wear - Patented plate supports with excellent properties damping and stiffness The motion of the X-axis is derived through kinematics. "double scissors" guaranteeing high dynamics - Thermosymmetric spindle Control system Index C200 Identical to SIEMENS SINUMERIK 840d SolutionLine - Modular multiprocessor control system, SINAMICS with 120 drives - Siemens Operate control box, display in language Germany - language switching WINDOWS and flat screen - 2x USB 2.0 connection on the control panel, 2x USB connection on the control panel - NCU 720.3 B PN NCK - Integrated PLC 317-3 PNDP and ET200S - Security features implemented in software through SIEMENS Safety-Integrated and ProfiSave Extended machining cycles consisting of: Einstechzyklus Freistechzyklus Gewindestrehlen with 4 point move Lighting work. space in LED design 1 flat color TFT screen, 18.5" PCT-Touch IP65 front panel 10142338 1 Main spindle dia 65 Spindle end AD140mm, ID 85mm Material passage Max. mm 65 Speed max. 1 / min 5000 Front bearing diameter mm 110 Ksdpsy Um Rrefx Abfelu Power 100% / 40% kW 31,5/32 Torque Max. 100%/40% Nm 125/170 Continuously synchronous variable speed drives Main spindle with hollow clamping cylinder D65/20 for pincer clamping or Chuck clamping Hydraulic control with clamp metering C axis of main spindle Drive: hollow spindle motor clamping cylinder, metering system directly on the spindle Resolution 0.00014 degrees Positionsstreubreite (VDI/DGQ 3441) Psmax = 0.01 degree 11040430 pressure clamping device Clamping pressure 8-75 bar adjustable For anti-spindle clamping cylinder 10038475 1 tool carrier 1 X-axis work vehicle mm 110 X-axis quick shift m / min 30 X-axis acceleration m / s^2 9 X-axis shear force N 5000 Z-axis work vehicle mm 320 Z-axis quick feed m / min 50 Z-axis acceleration m / s^2 9 Z-axis shear force N 5000 Y-axis working vehicle mm 100 Y-axis quick feed m / min 15 Y-axis acceleration m / s^2 9 Y-axis shear force N 5000 Offer: 1702114 - 02 / 30.3.2017 CNC-lathe INDEX C200 (GP3790. 0000F) Revolver 1: 14 stations with cylindrical shank clamping D25x48 (DIN 69880), W-grooves on the revolver-higher repeated accuracy when replacing the tool. Centering plate set, V-strips, not content of delivery, must be ordered separately. Gearshift revolver AC motor, hydraulic locking A driven tool is possible in each station of the revolver 1 . Power 25% kW 10 Torque 25% Nm 16 Speed max. 1 / min 8000 10720950 1 tool carrier 2 X-axis working vehicle mm 110 X-axis quick shift m / min 30 X-axis acceleration m / s^2 9 X-axis shear force N 5000

Condition: used, Year of construction: 2024, Tsugami B0205-VR CNC Swiss-Type Lathe Mfd. 2024 Hours: 73 NEVER RAN PRODUCTION! Accessories & Options: Fanuc 0i-TF Control Fire Trace Fire Suppression (5 lbs) B0-WORK-KIT MKIII Work Conveyor Through Sub-Spindle Coolant with Pump Abile Programming Software Edge Scout 320 Barfeed Two Channel Sets Specifications: Kedpfx Abjy Um N Isfelu Max Machining Diameter: .787" Max Headstock Stroke: 6.69" (Guide Bushing) / 1.771" (Chucker) Main Spindle Speed: 10,000 rpm Sub Spindle Speed: 12,000 rpm Live Tool Spindle Speed: 8,000 rpm Tool Positions: 21 Sub Spindle Max Machining Diameter: .787" Sub Spindle Front Ejection Max Length: 3.15" Max Tool Spindle Slotting Cutting Diameter: 1.18" Rapid Traverse Rate: 36M/min Main Spindle Motor: 7.5 hp | Sub Spindle Motor: 5.0 hp Coolant Tank Capacity: 47 gal. System Input Power: 13.0 KVA Compressed Air: 60 psi Dimensions: 69" x 41.5" x 67" | Weight: 3,968 lbs

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5" - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 195 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-5" - Spindle power : 7.5 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] TRAVELS - Z stroke : 400 [mm] - X stroke : 150 [mm] - Rapid traverse rate : 36 [m/min] - Spindle / counter-spindle distance : 600 [mm] TURRET 1 - Number of positions : 24 - Number of motorized positions : 12 - X/Z stroke : 400/150 [mm] - Y stroke : +/- 40 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7.1 [kW] TURRET 2 - Number of positions : 9 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3072X1974 [mm] - Machine height : 1799 [mm] - Machine weight : 6500 [kg] EQUIPMENT - CNC : Fanuc 0i-TF PLUS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming - 3 colors status lamp - Coolant tank * Coolant through spindle - Chips conveyor : DROITE LNS MH500 Kedow Efgaepfx Abfjlu - Tool probe - Parts catcher - Parts conveying strip - Predisposition for barfeeder - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-6" - Spindle power : 11/15 [kW] - Torque : 51/110 [Nm] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 66 [mm] Kljdpfsvzt Hbox Abfou - Max. turning diameter : 340 [mm] - Max. diameter on bench : 400 [mm] - Max. chuck diameter : 190 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 227.5 [mm] - Y stroke : +/- 41 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 3.7/5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 21 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2000 X 1600 [mm] - Machine height : 1850 [mm] - Machine weight : 4300 [kg] EQUIPMENT - CNC : Fanuc - Interface : Ethernet / RS232 / USB / PCMCIA - Coolant tank - Chips conveyor - Oil mist extractor : DONALDSON - Tool probe - Parts catcher - Parts conveying strip - Fire extinguisher * : SIEMENS * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Number of turning tool holders : 2 - Number of fixed tool holders : 4 - Collet chuck : EROWA
