Wheel excavator

Komatsu PW 98 MR-10

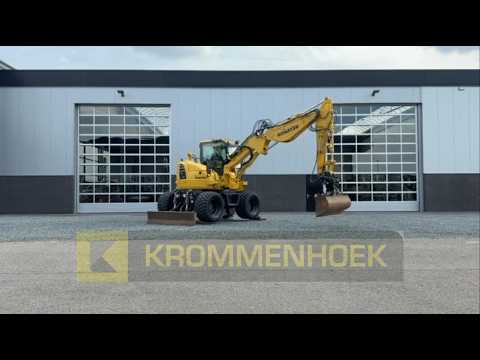

Condition: used, Year of construction: 2019, operating hours: 1,600 h, Equipment: soot filter, Well-maintained short-tail mobile excavator Komatsu PW 98 MR-10 Technical data: * Engine: Komatsu SAA4D95LE-6 * Engine output: 48.5 kW * Transport length: 6,810 mm * Transport height: 3,100 mm * Overall width: 2,350 mm * Max. digging reach: 7,860 mm * Max. digging depth: 4,055 mm Features include: * Twin tires 8.25-20 with spacers (in good condition) * Common rail direct injection diesel with cooled EGR technology * Komatsu Diesel Oxidation Catalyst (KDOC), without DPF * 3 travel modes (Creep / Low / High) * Front axle with 6° oscillation, automatic and manual locking * Cruise control * Komtrax stage 4 * Heating and air conditioning * Adjustable driver's seat with seat belt * High-resolution LCD monitor * Offset boom with 1,650 mm dipper arm * Additional 2-way valve with hydraulic circuit switchable to hammer mode * Rear dozer blade (2,350 mm) with cylinder safety valve * Grab pipe * CE conformity * 4 additional work lights on cab roof Fjdsy Ikbbopfx Ad Ispi * Rain protection for windscreen + wiper * Mechanical quick coupler MS08 + lifting hook * Radio * Rear hood with high-resolution reversing camera * Urban reverse warning system Other: * Includes ditch cleaning bucket and digging bucket * Next safety inspection (UVV) due: 10/2026 !!! NOTE: Sale only to businesses and for export !!!

Condition: used, Year of construction: 1984, turning diameter over cross slide: 1,600 mm, turning diameter: 2,000 mm, turning diameter over bed slide: 2,000 mm, turning length: 35,000 mm, workpiece weight (max.): 63,000 kg, Center Lathe SKODA - SUT 200 TD MACH-ID 9446 Manufacturer: SKODA Model: SUT 200 TD Year of manufacture: 1984 Tandem construction on one bed, with left and right headstocks Faceplate double tailstock left and right Double carriage Steady rest included Roller rest included Operator panel with scales requires attention and replacement Motorized tailstock for each side (left and right) 3-bed way design Torque on chuck: 160,000 Nm Minimum turning diameter: Ø 315 mm Industries served: - Shipyards - Propeller shaft manufacturing - Hydraulic cylinder shafts - Camshafts - Defence & Aerospace - Rolls and shafts for steel mills - Crankshafts Specifications Metric / Imperial Turning length: 35,000 mm Swing over bed: Ø 2,000 mm Swing over carriage: Ø 1,600 mm Spindle power: 75 kW Bed width: 1,600 mm Quill diameter: Ø 400 mm Quill stroke: 250 mm Max spindle speed: 180 rpm Feed X-axis: 5,000 mm/min Feed Z-axis: 5,000 mm/min Workpiece weight: 63,000 kg Approximate dimensions: Length: 42,000 mm Width: 3,250 mm Fpjdpfxeynky Ao Ad Isi Height: 3,250 mm Weight: 158,000 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representations or contractual terms. We recommend verifying all important details.

Condition: good (used), Year of construction: 1976, Centre lathe ZERBST - DPS 1800 MACH-ID 581 Make: ZERBST Type: DPS 1800 Year: 1976 Swing over bed Ø 1600 mm Swing over cross slide Ø 1250 mm Swing in the gap Ø 2100 mm Bed width 1400 mm Power 35 kW Speeds / ranges Fedpfowvir Isx Ad Ispi 180 Rpm

Condition: good (used), Year of construction: 2003, feed length X-axis: 3,500 mm, feed length Y-axis: 2,500 mm, feed length Z-axis: 1,250 mm, total length: 7,200 mm, total height: 5,300 mm, table width: 1,800 mm, total width: 6,800 mm, table length: 2,200 mm, workpiece weight (max.): 12,000 kg, Table type boring mill TOS VARNSDORF - WHN13CNC MACH-ID 9629 Make: TOS VARNSDORF Type: WHN13CNC Control: HeidenHain TNC430 Year: 2003 1e owner machine ca 16.000 Spil hours Chip conveyor Under power  Fjdpey T E Itofx Ad Iopi X - Travel: 3500mm Y - Travel: 2500mm Z - Travel: 1250mm W - Travel: 800mm Table Length: 2200mm Table Width: 1800mm Table load: 12000 Speeds / ranges: 2800Rpm Power: 37kW Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Feed rate W-Axis: 10000mm/min. Number of controlled axis:5 Length: 7200mm Width: 6800mm Height: 5300mm Weight: 36850kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 1980, turning diameter over bed slide: 1,040 mm, turning diameter over top slide: 710 mm, turning length: 2,000 mm, bed width: 600 mm, Optional chuck 1200 mm 2 Axis RSF Digital read out Conical turning attachment Spindle bore 130 mm Central lubrication DBC Turning Length: 2000mm Swing over bed Ø: 1040mm Swing over cross slide Ø:710mm Swing in the gap Ø: 1780mm Gap length: 1000mm Spindle bore: 130mm Bed width: 600mm Tailstock spindle Ø: 130Ø Stroke pinole: 300mm Spindle taper: 6Mk Power: 22kW Speeds / ranges: 600Rpm Feed rate X-Axis: 4000mm/min. Feed rate Z-Axis: 4000mm/min. Length: 6000mm Width: 2100mm Fsdpfxjx Tgr Te Ad Iopi Height: 2100mm Weight: 8300kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Technical details: Fedpoxt El Aofx Ad Iepi spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment *

Condition: excellent (used), Year of construction: 2009, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,350 mm, feed rate X-axis: 13,000 m/min, feed rate Y-axis: 13,000 m/min, feed rate Z-axis: 13,000 m/min, total length: 12,000 mm, total height: 4,800 mm, table width: 2,000 mm, total width: 6,800 mm, table length: 2,500 mm, drilling capacity: 180 mm, rotational speed (min.): 2,000 rpm, feed length W-axis: 1,000 mm, Coolant true spindel 20 Bar Paper filtration system ATC Tool changer 60 Positions  Spindel extension L = 550 mm Full B-Axis 360.000 with ROD880C Table load 28.000 Kg X - Travel: 5000mm Y - Travel: 3500mm Z - Travel: 2350mm W - Travel: 1000mm Table Length: 2500mm Table Width: 2000mm Table load: 28000 Speeds / ranges: 2000Rpm Fpodpfx Adoy Hq Dyo Iei Power: 51kW Spindle Taper: 180 ISO50ISO/Bt/Mk Feed rate X-Axis: 13000mm/min. Feed rate Y-Axis: 13000mm/min. Feed rate Z-Axis: 13000mm/min. Feed rate W-Axis: 13000mm/min. ATC Toolchanger: 60 Coolant through spindle / Bar:20 Number of controlled axis: 5 Length: 12000mm Width: 6800mm Height: 4800mm Weight: 44000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2008, condition: excellent (used), Track centre distance currently approx. 59.75 m Projections on both sides currently/formerly available approx. 12.0 /32.0 m Lifting height approx. 14.5 m Make/new body TEICHMANN Fpjdpfx Asqcvf Hod Ioi Baujahr/Neuaufbau 2008/2017/2024 Crane equipped with: - Two-rail slewing trolley with STAHL double hoists Equipment for grab and magnetic traverse operation - Radio remote control (cabin control can be retrofitted)

Condition: used, Year of construction: 1979, functionality: fully functional, Swing over bed 2000mm Swing over carriage 1700mm Turning lenght 8000mm Max. weight of workpiece in centers 80 ton Max. weight of workpiece in centers and steadies 100 ton Main motor power 150kW Spindle speed (3 ranges) 0,5-160rpm 4-jaws independent chuck dia. 1700mm Min. clamping dia. 170mm Max. clamping dia. 1400mm Dia. of tailstock quill 450mm Bed width 2280mm Height of bed 650mm Special equipment: - 4-jaws chuck dia. 1700mm Fedpfx Aoyy Nx Nsd Iopi - tool system: double shelf toolpost - steady rest dia. 200-600mm - steady rest dia. 600-1100mm - open steady rest up to 1600mm Total weight of the lathe 110 tons

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, We are offering this machine for sale. It is connected and can be tested under power. A video of the machine can be sent via WhatsApp. Fsdpfjv Spvmox Ad Iepi Centre height above bed: 1,250 mm Maximum swing diameter over cross slide: 2,000 mm Maximum swing diameter over bed: 2,500 mm Maximum workpiece weight between centres without supports: 80 t Bed height: 700 mm Bed width: 3,000 mm Distance between centres: 7,000 mm Machine weight: approx. 160,000 kg
