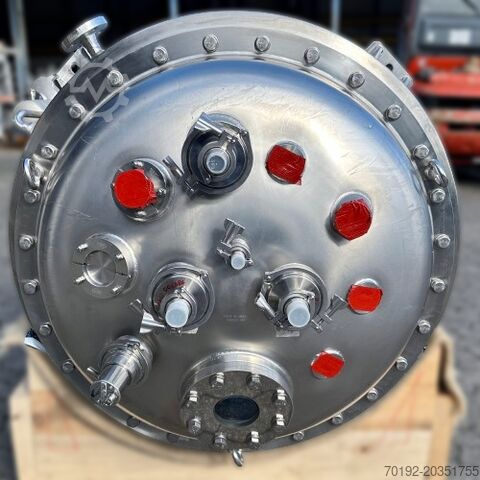

Unused 500 liter heat-/ coolable pressure tank, Aisi 904LKasag
15868
Price & Location
- Location:
- Bremen
Technical details
- Tank capacity:
- 500 l
Details about the offer
- Listing ID:
- A20351755
- Reference number:
- 15868
- Update:
- 22.10.2025
Description
Condition: Unused
Capacity: 500 liters
Tank
Max. Operating Temperature Tank / °C: 150 °C
Max. Overpressure: 6.0 bar
Vacuum: 1.0 bar
Tank
Specific Weight of Medium (t/m³): 1.2 (t/m³)
End Caps: Torispherical heads
Top Cover: Bolted lid
Design: Suspended
Tank
Stand Type: Bracket supports
Heating/Cooling: Available
Double jacket volume: 28.0 liters
Max. permissible operating overpressure: 10.0 bar
Heating/Cooling Jacket
Max. permissible operating vacuum double jacket / tube space / bar: 1.0 bar
Max. permissible operating temperature: 150 °C
Cylinder temperature control: Half-pipe coil
Insulation: Available
Insulation
Insulation jacket: Hermetically welded
Insulation material: Mineral wool
Insulation jacket material: Stainless steel
Inner diameter: 800 mm
Outer diameter: 980 mm
Cylindrical height: 1,044 mm
Technical data / dimensions
Bottom wall thickness: 3.5 mm
Cylinder wall thickness: 6 mm
Technical data / dimensions
Top wall thickness: 4 mm
Year of manufacture: 2017
Technical documentation: Drawing, various documents, acceptance certificate, CE marking and declaration of conformity
Equipment
Manway / Dome: Handhole
Knodpfjxqc Ensx Afijc
Nameplate:
Equipment: Spray head, lifting lugs
Equipment
Outlet: Available
Remarks: Unit was manufactured for a global pharmaceutical company but never put into operation there; handhole with sight glass, diameter: 220 mm; incl. Südmo single-seat valve SVP (outlet)
Product-wetted material: V4A 1.4539 (AISI316)
The listing was translated automatically. Translation errors are possible.
