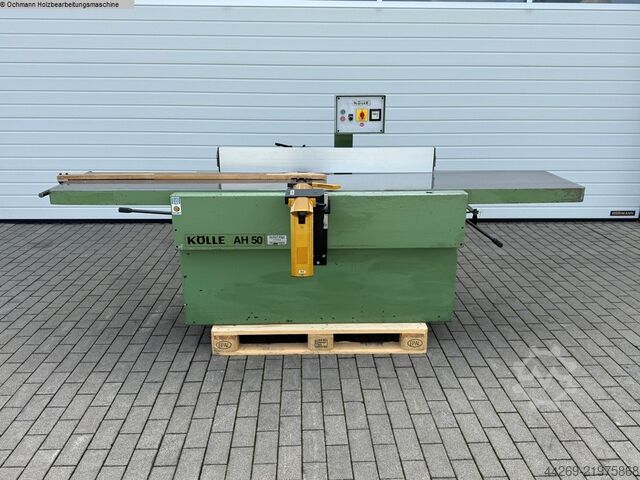

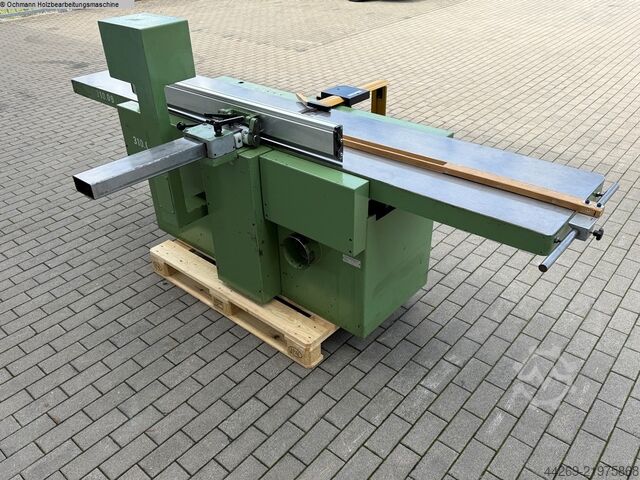

Condition: used, Working width 500 mm Length of the planing table 1.470 mm Kdsdpfxjy Ty H Ro Agtjl Number of knives 4 St. Motor output ~ 5,5 kW Planer Koelle type AH 50 or short planer for smoothing and leveling (planing) of wood with reversible knives and including adjustable angle fence and modern planer protection device Suvamatic.

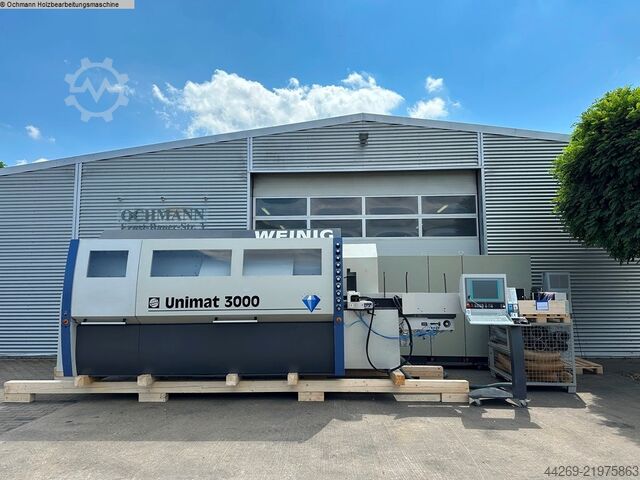

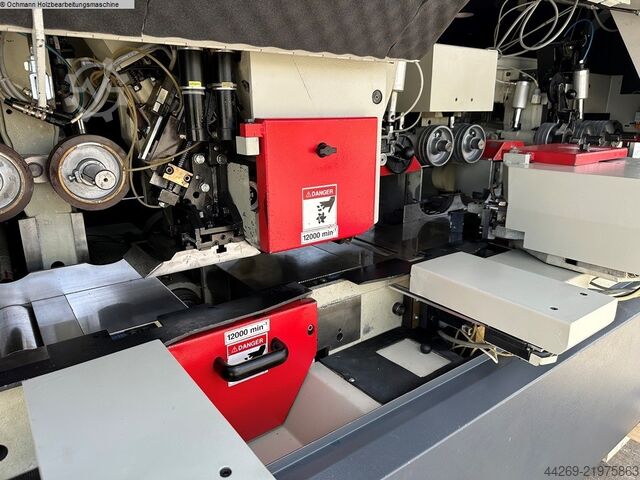

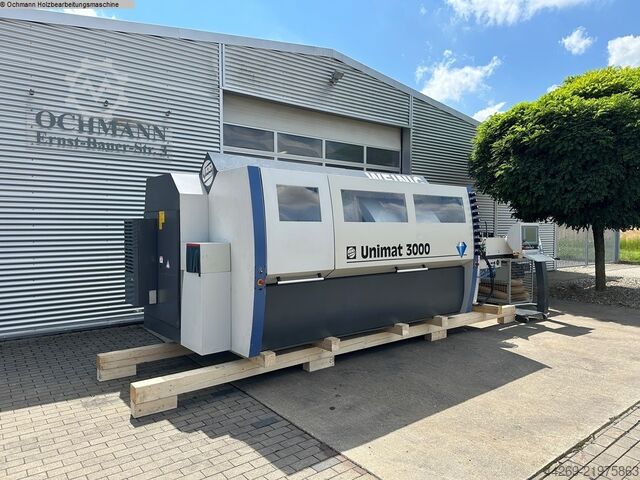

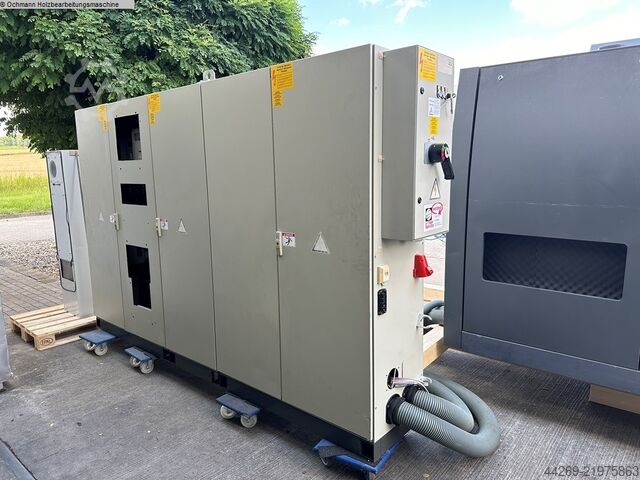

Condition: used, Year of construction: 2001, Number of boring spindles 8 St. Working width 230 mm Working height 160 mm Feed motor 5,5 kW Ksdsy Ty H Dspfx Agtedl Feed speed 36 m/min. Control Logocom Planing and moulder Weinig Unimat 3000 Brillant. Computer-controlled ProfiCenter for planing and profiling work with CNC-controlled spindles and loading magazine Weinig EM11. The control panel was equipped with the current Simatic Panel PC677C-15" in 2021. The sale takes place on behalf of the customer ex works. A viewing is possible at any time by arrangement. Spindle 1: Bottom / HSK Powerlock / 12,000 rpm Spindle 2: Right / HSK Powerlock / 4,000 - 12,000 rpm Spindle 3: Left / HSK Powerlock / 4,000 - 12,000 rpm Spindle 4: Right / HSK Powerlock / 4,000 - 12,000 rpm Spindle 5: Top / HSK Powerlock / 4,000 - 12,000 rpm Spindle 6: Bottom / HSK Powerlock / 4,000 - 12,000 rpm Spindle 7: Top / HSK Powerlock / 4,000 - 12,000 rpm Spindle 8: Bottom / HSK Powerlock / 4,000 - 12,000 rpm All spindles: CNC controlled (except spindle 6

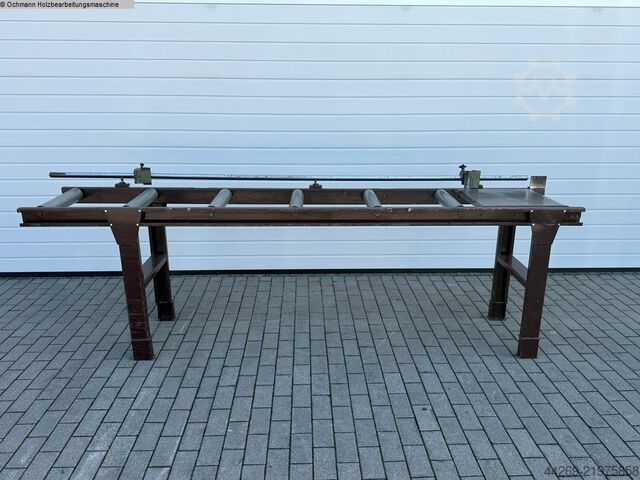

Condition: used, Wheel width 440 mm Kodoy Ty Hwopfx Agtjdl length 3.100 mm Width 650 mm height 1.050 mm Roller conveyor height ~ 920 mm Solid roller table with length stop and ruler.

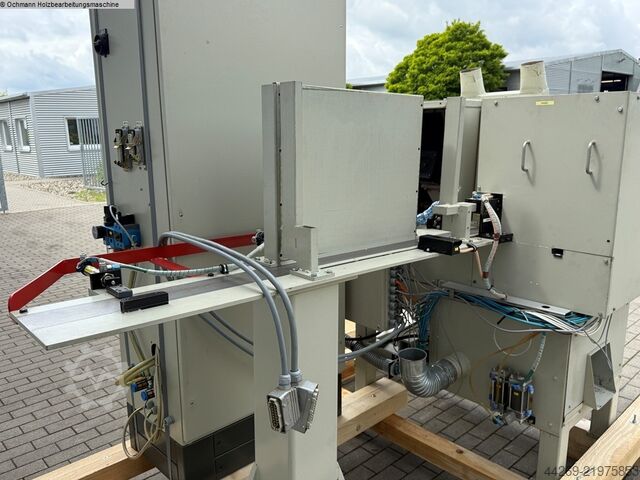

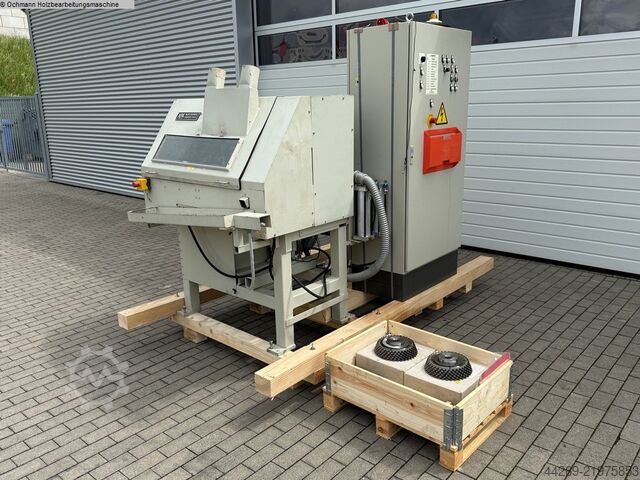

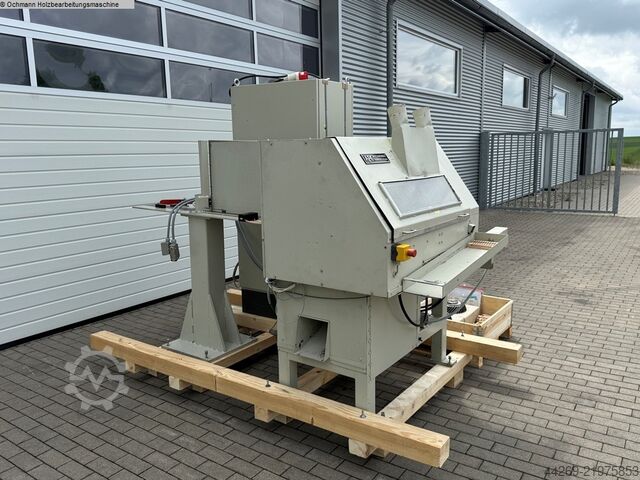

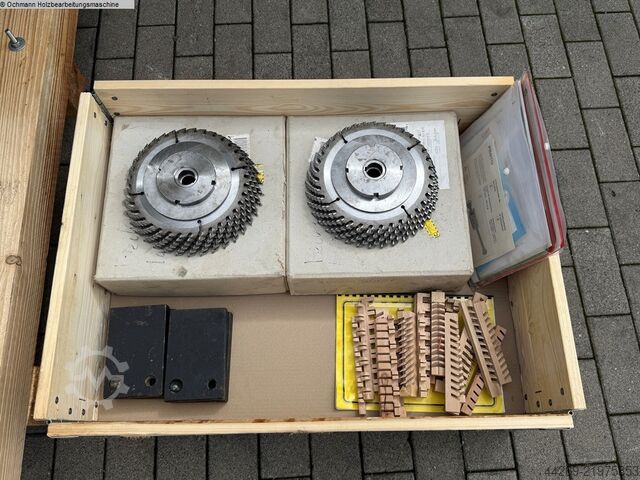

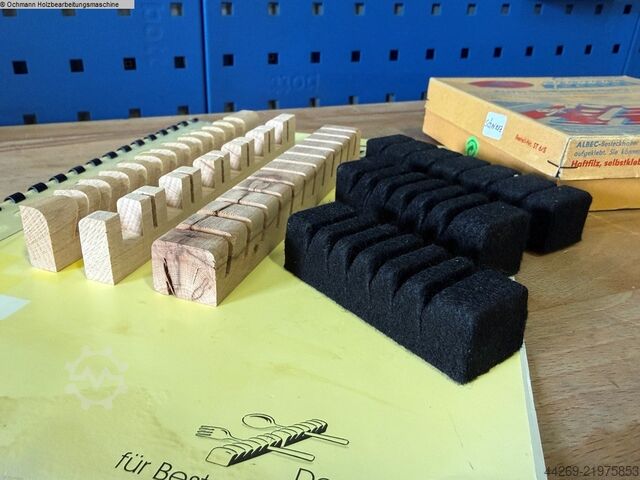

Condition: used, Year of construction: 1996, workpiece length 55- 170 mm work piece width max. 28 mm workpiece height max. 27,5 mm Kedpfoy Ty Hqex Agtjdl milling motor 2 cut-off saw 1 Special machine APK automatic sawing and milling machine for cutting wooden blocks to length and then milling them. Special design for the production of cutlery tray inserts (see pictures) or similar workpieces. Work sequence: 1. feeding the material from the magazine 2. cutting (sawing) to the desired length 3. milling of the cut workpieces 4. ejection of the finished part.

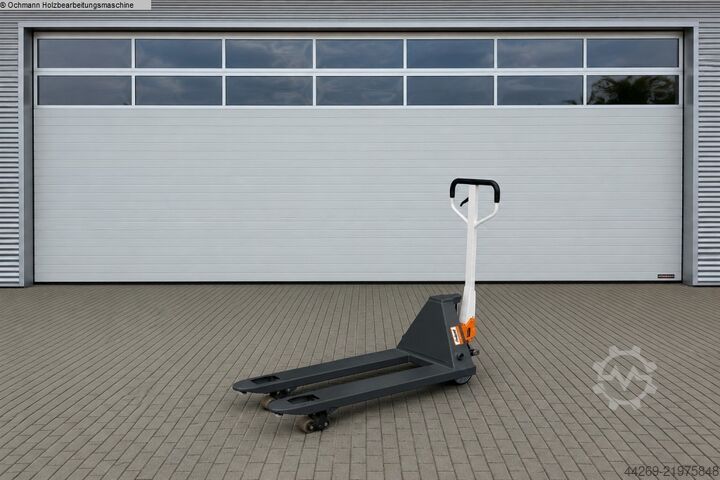

Condition: new, weight max. in kg 2.500 kg fork length 1.150 mm stroke height 85 - 200 mm Unicraft type PHW 2508 pallet truck or hand pallet truck for the in-house transportation of pallets, pallet cages and heavy loads. The robust design, smooth steering and compact construction enable reliable and maneuverable work in warehouses, workshops and production. Kjdoy Ty Hkspfx Agtedl Sample image, illustration similar.

Condition: good (used), Year of construction: 2012, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. All warranty rights are excluded. Ksdpfjy Ty Hdex Agtsdl For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.

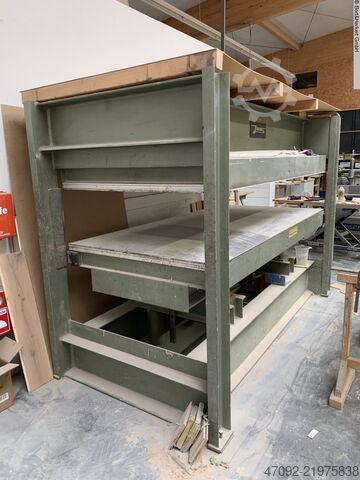

Condition: used, Plate dimensions 2.500 x 1.1250 mm Daylight opening 300 mm Number of daylights 1 St. weight of the machine ca. ca. 3 t kg Kodpey Ty E Tofx Agtodl Year unbekannt

Condition: used, Length 5000 mm Height 2800 mm Range+Heine coating system for coating individual wooden window components and frames for sale on behalf of a client ----- Manufacturer’s technical description: Part dimensions: Length: 5,000 mm Height: 2,800 mm Width: max. 100 mm Coating system: Intended use of material from the relevant coating manufacturer with a low solvent content (VOC value), water-based and non-flammable. Capacity: min. 40 crossbars/shift, i.e. approx. 60 window units/shift (without forced drying) Process (1 cycle is run twice): - Flooding - Drying - Checking and applying joint sealant - Spraying - Drying ----- ----- Item 1 Conveyor technology 1 Power + Free circular conveyor Layout as per drawing 11-138-010a Essentially comprising: 3 drives with gear motors for the main chains with frequency-controlled speed (see layout). Various running rails, horizontal curves, chains Tensioning stations, pneumatically/electrically controlled stop stations 50 crossbeams, 5,000 mm long (max. weight 250 kg) Automatic tilting of the crossbeams in the drip-off area after the flooding system 1 conveyor system control (Siemens S7-300 PLC) Programmable buffer stocks Infinitely variable drives. 1 lifting/lowering station for loading and unloading workpieces (max. stroke 2,000 mm) 1 set of steel structure for mounting the conveyor system ----- Item 2: Flood Coating System 1 flowcomat II-P 1 system for colourless primer Maximum workpiece width approx.: 180 mm Consisting of: 1 coating tunnel, 1 Flowcodrive swivel mechanism, 2 flood lances, each fitted with a maximum of 3 nozzles. 1 set of accessories for cleaning the system 1 stainless steel sieve fitted externally 1 paint supply 1 control unit ----- Item 3 Additions to the dip coating system 1 Drip channel and drip tray in the evaporation area behind the dip coating system After dip coating, the crossbars run into a drip buffer. The dripping coating material is returned to the dip coating system via the non-stick PP drip tray (and drip channel). Rinse water is collected in the flood coating system and pumped out. The use of PP for the areas in contact with the coating ensures easy cleaning of dried-on coatings. 1 Humidification system 1 Control unit for the humidification unit Complete with controller for the humidification volume 1 Hygrostat for measuring room humidity and activating the humidification nozzles 3 humidification nozzles for the drip buffer 1 coagulation system 1 R+H waco 200 coagulation system – 200 l collection tank ----- Item 4: Topcoat spray booths 2 paint booths for topcoating 2 extraction walls with sandwich panel cladding to suit the Kdodpfx Agjy Ty E Hjtjl work area. Fan: 16,000 m³/h Filter area: - 3 sets of Ecola pre-separators - 1 set of Paintstop filters - 1 set of bag filters Recirculating air distribution ceiling in a tensioned frame design Volume 12,000 m³/h approx. 75% recirculation – 25% exhaust air operation (the exhaust air volume is extracted from the hall) installed on site-provided foundations in accordance with the layout 2 Prolac overspray recovery columns ----- ----- Item 5 Addition to the topcoat spray booths 3 humidification nozzles for the evaporation area after to...

Condition: used, Year of construction: 2014, 35/75 m/min Kodpfx Agjy Ty Eystjdl dimensions of saw-band 3350x27x0,9 mm capacity 90 degrees: round 260 mm capacity 90 degrees: flat 300x260 mm capacity 45 degrees: round 200 mm capacity 45 degrees: flat 180x180 mm 130 mm 120x120 mm 25 mm 90 mm min. dia. 5 mm work height max. 750 mm total power requirement 1,1/1,8 kW dimensions 1900x1500x1860 mm weight of the machine ca. 900 kg weight 660 kg

Condition: used, tool taper CAT 40 number 67 st. / pcs. Kdedey Ty Emjpfx Agtjl

Condition: used, Year of construction: 1997, turning length 1500 mm greates pass round over bed 490 mm turning dia. over face-slide 280 mm control Heidenhain Manual Plus Speed range - up to 3000 U/min spindle bore 65 mm power capacity - workpiece power 12/16 (100/60%) kW Kdodsy Ty Egjpfx Agtjl weight of the machine ca. 3,5 t Equipment/Accessories: - Steady rest - Chuck - Tool holders - Drill bits - Tips - Multifix holder

Condition: used, Year of construction: 1998, x-travel 1120 mm y-travel 510 mm z-travel 510 mm control Mazatrol M Plus spindle turning speed range 0-7000 U/min tool taper Cat 40 tool piece magazine with 24 Plätzen max. table load 500 kg table dimensions (lengthxwidth) 1460 x 510 mm Overall size 3600x2700x2590 mm Kodoy Ty Eajpfx Agtsdl machine weight ab. 5850 kg Equipment/Accessories: - 4 vices - 1 chuck - 18 tool holders with tools - Transport locks - USB flash drive with data backup - Technical documentation

Condition: new, cutting diameter 225 mm saw band length 2480 mm cutting width max. 245 x 150 mm voltage 230 V power capacity 1,5 kW dimensions of saw-band 2480 x 27 x 0,9 mm Kdjdpfoy Ty Dpjx Agtsl mitter cutting 0 - 60 ° cutting speed 20 - 90 m/min weight of the machine ca. 185 kg dimensions of the machine ca. 1,4 x 0,69 x 1,7 m - stepless speed - stepless feed - miter cut - Bi-metal saw band - Material stop - Machine base - Coolant device

Condition: used, Year of construction: 2000, workpiece weight per basket 250 kg basket dimensions max. mm Kjdpfxsy Ty Dij Agtedl voltage pneumatisch weight of the machine ca. 400 kg dimensions of the machine ca. 1,35 x 1,50 x 2,35 m

Condition: used, current capacity 8,0 kVA Kjdpfxjy Ty Dcj Agtsdl throat 80 - 480 mm contact pressure capacity 17 - 235 daN horn spacing 140 mm mm rated capacity 8,0 kVA voltage 380 V total power requirement 17,8 kVA weight of the machine ca. 77,5 kg dimensions of the machine ca. 0,35 x 0,80 x 1,05 m - Serial-No.: 18310126 - 2

Condition: used, Year of construction: 2009, x-travel 835 mm y-travel 510 mm z-travel 510 mm CNC-control iTNC530 HEIDENHAIN table-size 1000 x 560 mm max. table load 800 kg spindle taper SK 40 spindle turning speed range 20 - 14.000 U/min feed stepless 1 - 20.000 mm/min rapid traverse 20 m/min drive capacity - spindle motor 13 / 9 kW tool change unit 32 Pos coolant IKZ 25 bar voltage 400 V total power requirement 30 kVA weight of the machine ca. 4,5 t dimensions of the machine ca. 3,50 x 3,50 x 2,70 m chip conveyor 3,55 x 0,90 x 1,55 m coolant equipment 1,60 x 1,35 x 1,80 m spindle oil cooler 0,40 x 0,50 x 1,00 m Transformer 0,75 x 0,45 x 0,65 m - Serial-No.: 15415041384 - Machine ON: 72,882 h - Program Run: 25.267 h - Linear scales in all 3 axis Kedpfx Agoy Ty A Setedl - electr. handwheel - Tool changer 30 pos. with double gripper - Chip conveyor - TSC with belt filter system - Coolant unit - new ball screw incl. bearings (X-Axis) - motor spindel changed by previous owner. Spindle in very good condition.

Condition: used, Year of construction: 1991, width of the strips 150 mm band length 2.000 mm motor 400 V loading area 450 x 160 mm total power requirement 4,0 kW Kdedjy Ty A Espfx Agtel dimensions of the machine ca. 1,10 x 0,70 x 1,15 m - Serial-No.: 200.184

Year of construction: 2017, condition: good (used), Required air-pressure 7 bar weight 3 kg dimensions of the machine ca. 212 x 265 X 200 mm BxHxT Air Operated Diaphragm Pump Type(s) DL15-PM-TTT Kdedpfx Agsy Ty Axstjl Technical data: - Connection size medium - 1/2" BSPT female thread - Material housing - PP polypropylene - Center section - PP polypropylene - Diaphragm material - PTFE - O-ring material - PTFE - Check valve material - PTFE - Max. flow rate - 2.2 m³/h - Max. medium pressure - 7 bar - Compressed air supply - up to 7 bar - Solid size max. - 2.5 mm - Dry suction max. - 2.5 m - Dimensions WxHXT - 212 x 265 X 200 mm - Net weight - 3.5 kg PTFE diaphragm for the highest chemical requirements, very good resistance to aggressive media and chemicals, temperature range: -5 °C - +130 °C. PP polypropylene housing is highly resistant to acids, many water-soluble, inorganic acids and bases. Also available as electrically conductive housing material. Temperature range: 0°C - +60°C

Condition: good (used), liter capacity 1000 l range L-W-H 1460 x 1460 x 620 mm weight 180 kg External dimensions approx.: LxWxH 1460 x 1460 x 620 mm (height incl. 100 mm clearance height) Collection volume: approx. 1000 liters Net weight (painted) approx.: 180 kg Construction made of 3 mm sheet steel With galvanized grating (load capacity 1000 kg/m²) Kedpfxey Ty Aro Agtsdl With support legs (100 mm clearance height) Transportable with pallet truck and forklift Suitable for flammable liquids in GHS categories 1-3 and for water-polluting liquids in GHS categories 1-4

Condition: good (used), amount 1 STK Kdjdpfxsy Ty Alo Agtel Heckert Lynette / Safety guard suitable for Heckert machines

Condition: used, Year of construction: 1986, pulling force - max. 6,3 t max. ram stroke 1000 mm max. workpiece diameter 400 mm groove width 6 mm total power requirement 2,9 kW weight of the machine ca. 1,5 t Kdedpsy Ty Afsfx Agtol dimensions of the machine ca. 1x1x2,2 m

Condition: good (used), amount 1 STK tool taper SK 50 Switching 3D touch probe system for workpiece measurement Output signal: Infrared transmission Beam angle in degrees: +30 Kdedpfx Asy Tyz Uogtjl Power supply: 2 x Size C Tool holder: S75 DIN 69871 // SK-AD/B 50 // M24

Year of construction: 1995, condition: excellent (used), Manual length adjustment via handwheel with digital display. Maximum feed length: 3,000 mm. Kdodpfx Agsy Tyzzjtol Pneumatic parking brake.

Condition: used, Year of construction: 2006, x-travel 630 mm y-travel 560 mm z-travel 560 mm table surface area 1000 x 600 mm Kodpfoy Tyzuox Agtjdl spindle taper HSK 63 A spindle turning speed - stepless 18.000 U/min feeds x/y/z -stepless 0 - 30.000 mm/min rapid traverse 30 m/min no. of tools in magazin 2 x 12 workpiece diameter at full load 130 mm tool length - max. 315 mm weight of tools max. 8 kg internal coolant system feed 40 bar control HEIDENHAIN control MillPlus iT table load capacity max. 500 kg total power requirement 52 kVA weight of the machine ca. 6,5 t dimensions of machine L x W x H 3,40 x 1,86 x 2,42 m Accessories: probe HEIDENHAIN, TS 640; electron. handwheel, mech. vice (jaw width 160 mm), chip conveyor, coolant with bandfilter

Condition: excellent (used), Year of construction: 1996, x-travel 800 mm y-travel 600 mm z-travel 500 mm Kjdpfey Tyznjx Agtjdl
