Condition: used, Number of boring spindles 3 St. Number of tools 1.3/4.1. St. Spindle diameter 50,40 mm Spindle length 120,320,125 mm weight 2500 kg loading dimensions L x W x H 3800x1400x2000 mm table length 3470 mm Weinig Univar 6 P to be sold on behalf of our customer ----- Operating voltage: 380 volts, 50 periods. For milling around windows, doors and similar with uneven edges Profiles. Arrangement of the aggregates: 1. Synchronous spindle on the right, pneumatically clocked. 2. Profiling spindle on the right 3. Fitting spindle Profiling spindle suitable for holding several tools one on top of the other. Spindle movement pneumatic. The 1 spindle works in synchronization for tear-free milling. Respectively This spindle plunges the last 100 mm of a frame end with the Insert the appropriate tool into the wood to prevent tearing at the frame corners avoid. Machine stands, tables, stops: Machine body made of heavy, torsion-free and vibration-damping elements. Stops on the right in the profiling area made of Pertinax. Before Profiling spindle a split stop with sliding bar for short parts. Additional opening rail for large format frames. Feed system: Continuous, chainless feed equipped with rubber rollers. Blow-off device for feed rollers and table. Spindles, hood: Spindles with high concentricity and dynamically balanced. Extraction hoods designed for the cheapest chip flow. Easiest tool change Quick-opening hood lid. Machine operation, setting aids: Operating the machine from the front. Setting the stops for Tool diameter using mechanical number display. Machine electrics, motors, controls: Electrical design according to DIN VDE 0113 - Electrical equipment from Lredpsxpi Elsfx Af Eju Industrial machines EN 60204 IEC 204-1. Further electrical regulations are not taken into account. Engines dynamically balanced. Control of tool positions via selector switch on the control panel. Tools: Machine equipped with operating tools, but without Editing tools. SPINDLE 1 Synchronous spindle Number of tools: 1 Spindle speed: 6000 rpm Spindle diameter: 50mm Tool clamping length: 120 mm Tool diameter max. (milling): 232 mm Tool zero flight circle: 112-140 mm Basic position under table: 10 mm Motor strength: 4 KW (5.5 KW) SPINDLE 2 Number of tools: 4 Spindle stroke vertical: 3 x 80 mm = 4 tools Can be switched to 2 x 95 mm = 3 tools Spindle speed: 6000 rpm Spindle diameter: 50mm Tool clamping length: 320 mm Feed profiling unit: 8 m/min Feed roller width: 50mm/35mm Feed roller diameter: 95 mm Stop height: 70 mm Working width: min. 30 mm; max. 220 mm Working height: min. 30 mm; max. 100mm Workpiece length without tenon: min. 245 mm Tool diameter max. For zero diameter 112 mm: 210 mm For zero diameter 140 mm: 232 mm Tool diameter max. (milling): 232 mm Tool zero flight circle: 112-140 mm Basic position under table: 10/5 mm Motor strength: Spindle: 11 KW Feed: 1.1 KW Feed profiling unit: continuously 6-12 m/min Feed roller width: 50 mm Feed roller diameter: 95 mm Stop height: 70 mm Working width: min. 30 mm; max. 220 mm Working height: min. 30 mm; max. 100mm Workpiece length without tenon: min. 245 mm Special equipment: 3 Mechanical spindle brake for synchronous spindle, profiling spindle and Additional aggregates SPINDLE 3 1 fitting milling unit, right: for milling the fitting groove in the Milling pass or for groovi...

Condition: used, Number of spindles 4 St. Number of tools 11 St. Spindle diameter 50,40 mm Spindle length 285,125 mm length 4000 mm width 2000 mm height 2200 mm Weinig Univar 10/3 folding machine ----- For milling around windows, doors and the like with uneven circumferential profiles. Machine suitable for wood thickness 68 to 92 mm Time required per frame milling, medium size 1.20 x 1.20 m - approx. 2 minutes. The available tool positions are selected using a selector switch on the control panel retrieved. Machine with 3 hydraulically controlled right precision Lifting spindles for holding 3 tool sets, 2 x 95 mm spindle stroke per spindle The spindle stroke takes place in a U-movement, so that the opening is possible for short parts The milling stop remains as small as possible. Spindle stroke horizontally fine Adjustable for both tool positions from the operator side. Central lubrication for the spindle units. The 1. Spindle can be selected in right-left rotation. This spindle dips the last 100 mm of each frame end appropriate synchronization tool into the passing wood. Through this This prevents the tool of the subsequent milling spindle from running in the opposite direction working, causing tearouts. Excavation of the first 7 transport rollers using Footswitch. This shortens the lead time. An additional The support rail also allows large-format frames to be milled around. Continuous, chainless rubber roller feed with extreme short roller spacing. Height adjustment of the feed bar electrically readable. Electrical version according to VDE. Machine including operating tools, but without processing tools tools. Technical data: Working width min. 40 mm Working height min. 30 mm, max. 100 mm 1. Profiling spindle (synchronous and counter-rotation) ----- -- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm with synchronous automatic immersion 2. Profiling spindle ----- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm 3. Profiling spindle ----- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm 4. Profile spindle - fitting unit on the right ----- For milling the fitting groove in the milling cycle or for grooving in the longitudinal profile. Pneumatic horizontal movement with Selector switch in the control panel. Motor 2.2 KW Speed 6,000 rpm Spindle diameter 40 mm Clamping height 125 mm, 2 tools Lodpovnv Uuofx Af Esru Tool flight circle min. 140 mm, max. 180 mm Motor power feed 1.1 kW Feed speed 6 - 12 m/min. ...

Condition: used, For profiling and milling windows, doors, individual parts and similar with all-round profiles. Aggregates: 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, Synchronization device 2. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80 hydraulic, 3. Profile milling unit, vertical right, radially clocked in 2 positions, axially clocked in 3 positions, motor: 3 kW, 4. Profile milling unit, horizontal below, radially clocked in 2 positions, axially clocked in 2 positions, motor: 3 kW, Milling carriage for narrow and short sashes, Nexus PC control. Ljdpfx Ajvnab Sef Eoru

Condition: good (used), Year of construction: 1995, Angle unit for window production , consisting of : Slotting unit for 8 tools with hydraulic stroke 75 mm (clamping height 600 mm) Ljdjtqft Iepfx Af Esru Milling unit for 4 tools with hydraulic stroke 80 mm (clamping height 320 mm) with return with IV 68 tools

Condition: used, Milling unit GUBISCH spindle diameter 40 mm Tool clamping length 240 mm Tool spindle total length 300 mm >> very good and stable design made of steel Lrjdpjq E Iu Djfx Af Esu

Condition: used, for profiling and milling around windows, doors, individual parts and the like with surrounding profiles incl. mechanization for one-person operation, Aggregates: 1st profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, synchronization device 2nd profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80 hydraulic, 3. Profile milling unit, vertical right, radial clocked to 2 positions, axial clocked to 3 positions, motor: 3 kW, 4. Profile milling unit, horizontal below, radial clocked on 2 positions, axial clocked on 2 positions, motor: 3 kW, Milling carriage for narrow and short wings, Nexus PC control. Ljdpfslf H S Asx Af Esru

Condition: used, for profiling and milling around windows, doors, individual parts and the like with surrounding profiles incl. return transport, Lodpslf H Suofx Af Eoru Aggregates: 1st profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, 2. Profile milling unit, horizontally above, radially clocked at 2 positions, axially clocked at 2 positions, motor: 3 kW, 3. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, 4. Profile milling unit, vertical on the right, radial clocked on 2 positions, axial clocked on 3 positions, motor: 3 kW, 5. Profile milling unit, horizontally above, radially clocked at 8 positions, axially clocked at 2 positions, motor: 3 kW.

Condition: used, Circulation machine WEINIG UNIVAR 10 as a spare parts carrier from a UC-Matic window system. * Year of construction: 1997 * Sutron BT20 control * Machine incomplete * Details on request * Illustration similar. Lrsdelf H Sqspfx Af Eou

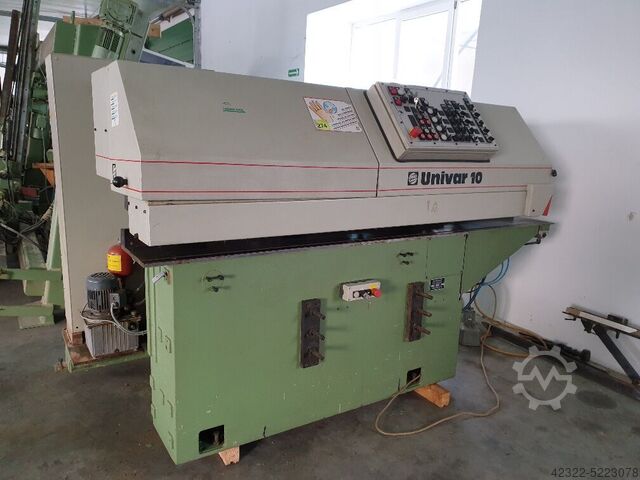

Year of construction: 1987, condition: excellent (used), Automatic rebating machine WEINIG UNIVAR 10 Ljdsf Upzhepfx Af Esru

Year of construction: 1997, condition: excellent (used), I sell the complete window profile production line: 1pc. 5-spindle fourside moulder with saw aggregate Weinig Unimat 23EL. - without HESS sanding machine - another machine for change available on agreement 2pcs. tenoning profiling centre Weinig Unitec 10 2pcs. profiling automat centre Weinig Univar 10 1pc. CNC drilling machine KOCH WinDoor - set of complete Weinig automation feeders and conveyors Lrjdefzzidopfx Af Eeu Year 1997. Profile heads OERTLI. Available immediately. Uninstalled and loaded on original Pallets. Condition very good !

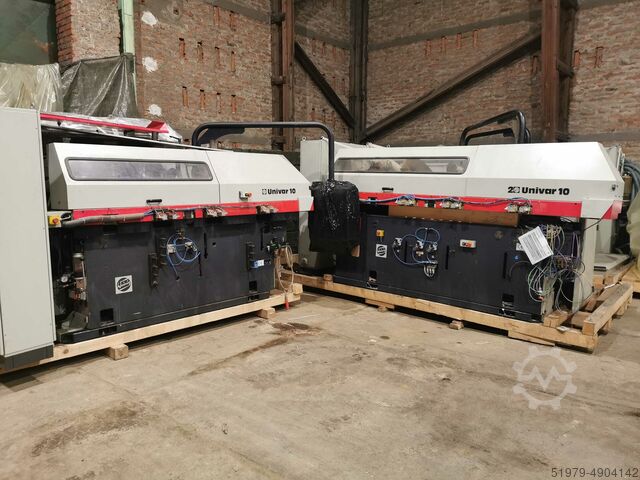

Year of construction: 1998, condition: excellent (used), I sell the window production set: 1pc. tenoning profiling centre Weinig Unitec 10 Lrjdpfjfzzhyox Af Eeu 1pc. profiling automat centre Weinig Univar 10 Year 1998. Moulding heads OERTLI. Available immediately. Total price 17.000 euro. Condition very good !

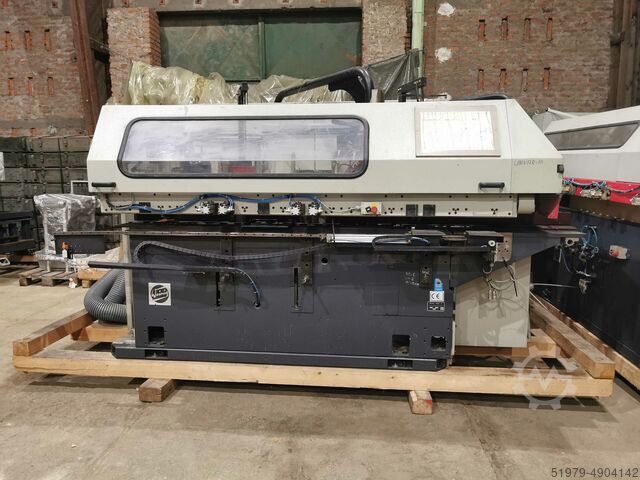

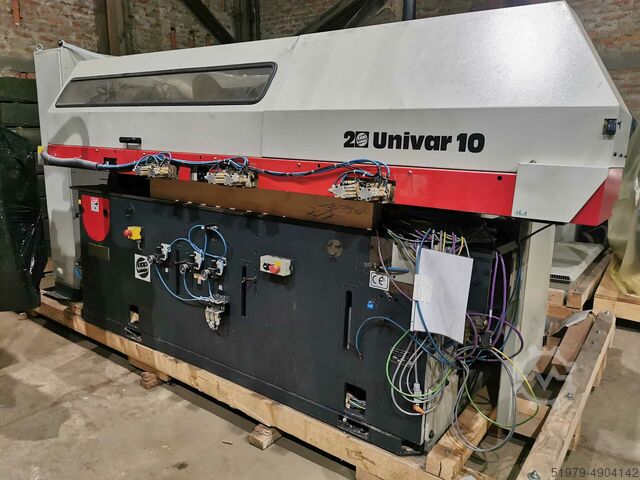

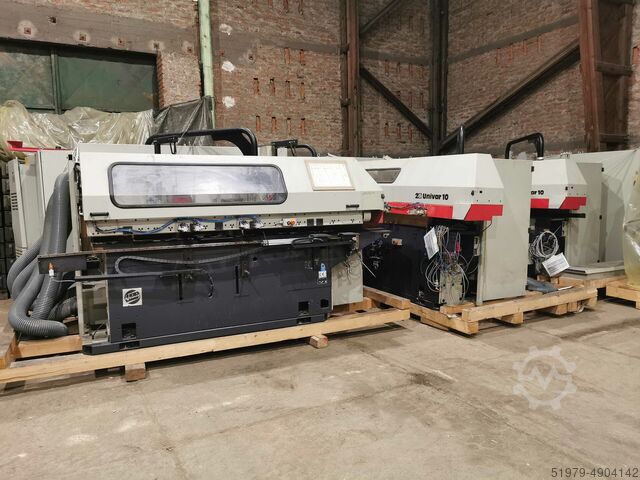

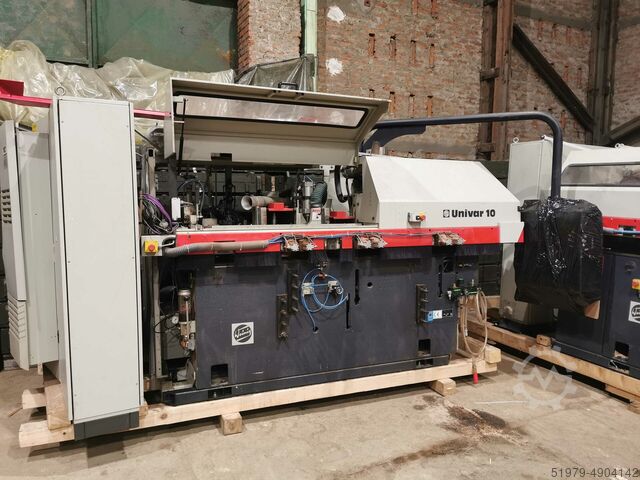

Year of construction: 1998, condition: excellent (used), I sell the window profiling automat centre Weinig Univar 10 Lredpfxsfzzhrj Af Eju Year 1998. Moulding heads OERTLI. Available immediately. Unit price 8.500 euro. 4 pcs. available. Condition very good !
