Vacuum tank truck

Schmies STS VR-2,0 Vakuumsaugfass-Anhänger 3,5to

++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++

- We provide you with the perfect vacuum suction system for any application! -

Delivery worldwide / Dealer inquiries welcome!

Internal number: #510
The images are sample images. Actual equipment and color may vary.

Csdpfx Asxd Nt Sjdkshc

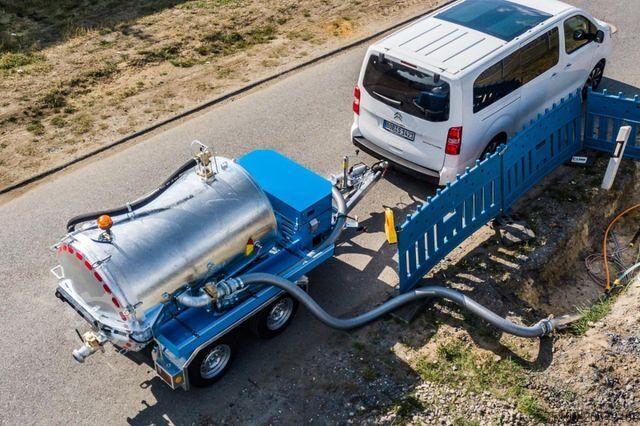

STS VR-2.0

Tank:
- 2,000-liter tank capacity
- Galvanized steel tank
- Tank slightly inclined backwards for easier cleaning
- Hydraulic rear tipping with approx. 20° angle for emptying via electro-hydraulic unit
- Lateral rinsing opening in the tank to remove contamination or blockages without opening the tank lid
- Tank lid opens fully to the passenger side and is secured with hook bolts
- Two safety stages standard to prevent compressor damage
- Siphon separator – overflow with 2 balls and viewing glass
- Vacuum gauge on suction equipment with protective bracket
- Mechanical level indicator with color scale

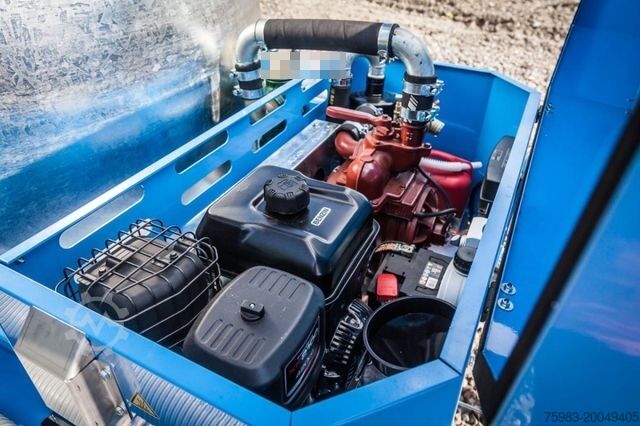

Engine and Compressor:
- MEC 3000 vacuum compressor with 3,500 l/min air output
- Vacuum max. -0.8 bar (continuous operation at -0.5 bar)
- Overpressure max. 0.49 bar
- Maintenance-free V-belt drive for vacuum compressor
- Honda industrial engine GX 390 – electric starter, oil sensor, control panel with ignition lock, battery, and tank
- Internal suction hose to prevent damage in the engine unit
- Silencer for vacuum compressor with oil catch
- Stainless steel heat shield above the exhaust
- 1-liter biodegradable compressor oil stored in oil bottle holder
- 5l petrol canister in holder
- Standard funnel with long neck for engine oil changes/refill
- All engine-related components and accessories are housed in a lockable engine box
- Engine box made of aluminum, powder-coated in desired color

Chassis:
- Self-supporting, fully galvanized chassis
- Electro-hydraulics with wired remote control
- 3.5t tandem low loader chassis
- Track width identical to car and Sprinter for optimal driving characteristics
- Lowest possible center of gravity for the vacuum tank
- 2 axles with 1,750kg capacity each and independent suspension from a reputable manufacturer
- Continuous welded V-drawbar
- Robust fenders with metal lamp housings
- Stake brackets for quick securing of suction hoses with rubber bands
- Storage capability for tools and accessories

Vacuum Tank:
- Overrun brake with reversematic
- Automatically locking ball coupling
- Reinforced jockey wheel
- 13-pin electrical connector

Connections and Hoses:
- 2x suction hoses (3”) 5m each with Perrot couplings
- 1x suction lance 3” (1500mm length)
- 1x Perrot connection (3”) in the lower part of the tank lid
- 1x Perrot connection (3”) on the right side in driving direction

Special builds and equipment available by request. Take a look:

For further detailed information and/or photos, please contact us directly. A broad selection of other vehicles for PURCHASE or RENT is available at:

Subject to changes, prior sale, and errors. The buyer is responsible for independently checking the condition and equipment of the goods. Sale is exclusively subject to our general terms and conditions and with any warranty excluded.

The listing was translated automatically. Translation errors are possible.
